Icom IC-M506

6-3

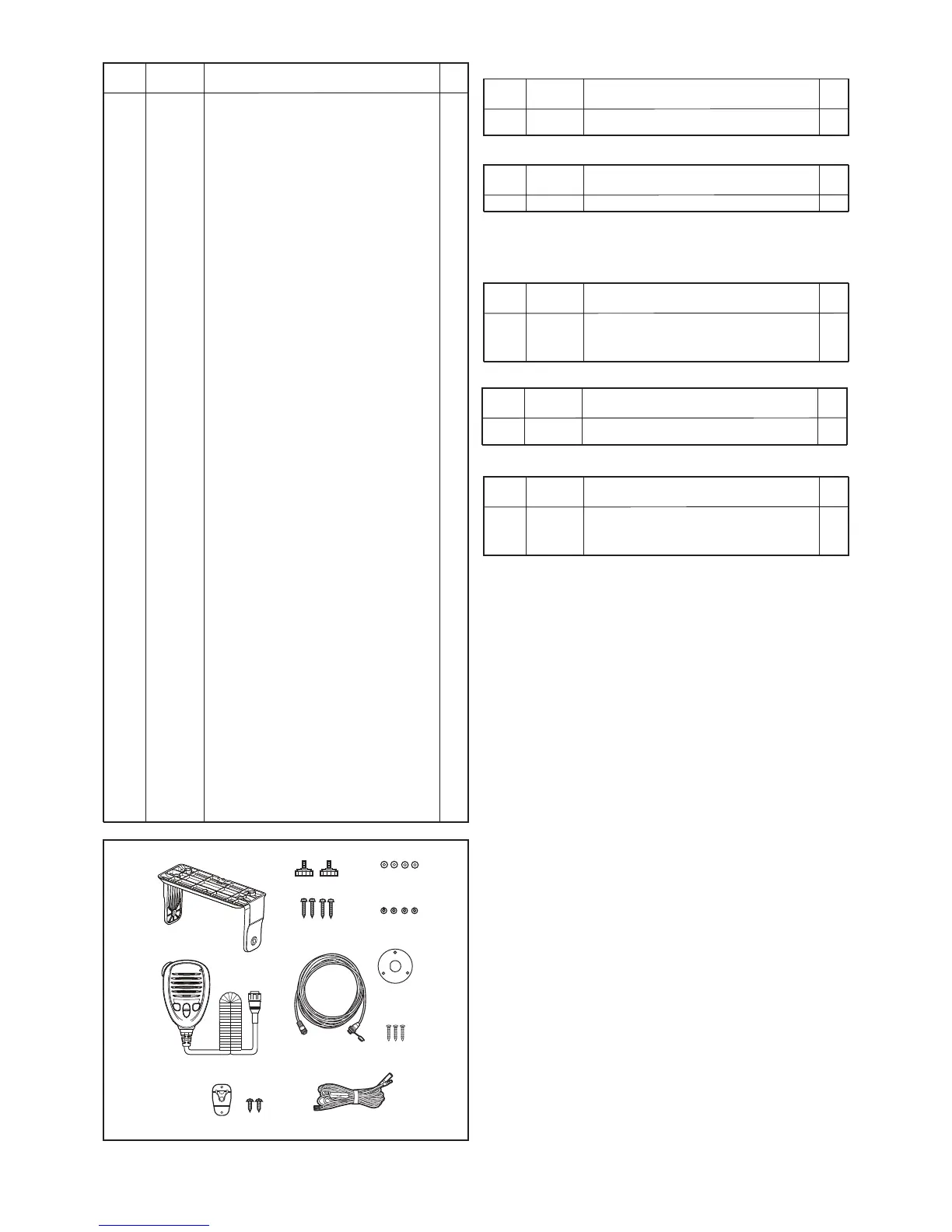

[ACCESSORIES]
[ACCESSORIES]
[CONNECT UNIT]
[ACCESSORIES]
[MAIN UNIT]
[MAIN UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
REF ORDER
DESCRIPTION QTY.
NO. NO.
REF ORDER
DESCRIPTION QTY.
NO. NO.
REF ORDER
DESCRIPTION QTY.
NO. NO.
REF ORDER
DESCRIPTION QTY.
NO. NO.
REF ORDER
DESCRIPTION QTY.
NO. NO.
MC1 (Optional) HM-205RB [#31] 1
(Optional) HM-205RB [#34] 1
(Optional) HM-205RB [#35] 1
(Optional) HM-205RB [#36] 1
(Optional) HM-205RB [#37] 1
(Optional) HM-205RB [#39] 1
(Optional) HM-205RB [#41] 1
(Optional) HM-205RB [#41] 1
(Optional) HM-205RB [#44] 1
(Optional) HM-205RB [#45] 1
(Optional) HM-205RB [#46] 1
(Optional) HM-205RB [#47] 1
(Optional) HM-205RB [#49] 1
(Optional) HM-205RB [#50] 1
W1 8900009041 OPC-891A 1
W2 8900010280 OPC-1000 [#31] 1
8900010280 OPC-1000 [#34] 1
8900010280 OPC-1000 [#35] 1
8900010280 OPC-1000 [#36] 1
8900010280 OPC-1000 [#37] 1
8900010280 OPC-1000 [#39] 1
8900010280 OPC-1000 [#41] 1
8900010280 OPC-1000 [#41] 1
8900010280 OPC-1000 [#44] 1
8900010280 OPC-1000 [#45] 1
8900010280 OPC-1000 [#46] 1
8900010280 OPC-1000 [#47] 1
8900010280 OPC-1000 [#49] 1
8900010280 OPC-1000 [#50] 1
MP1 8950006870 2917 MIC HANGER 1
MP2 8010022970 3570 MOBILE BRACKET 1
MP3 8820001460 3054 KNOB BOLT 2
MP4 8810004700 PHA M3 X16 SUS 2
MP5 8810001490 PHA M5 X20 SUS 4
MP6 8850000180 FLAT WASHER M 5 SUS 4
MP7 8850000500 S-WASHER M 5 SUS 4
MP9 8310050320 2417 C-PLATE Y557 [#31] 1
8310050320 2417 C-PLATE Y557 [#34] 1
8310050320 2417 C-PLATE Y557 [#35] 1
8310050320 2417 C-PLATE Y557 [#36] 1
8310050320 2417 C-PLATE Y557 [#37] 1
8310050320 2417 C-PLATE Y557 [#39] 1
8310050320 2417 C-PLATE Y557 [#41] 1
8310050320 2417 C-PLATE Y557 [#41] 1
8310050320 2417 C-PLATE Y557 [#44] 1
8310050320 2417 C-PLATE Y557 [#45] 1
8310050320 2417 C-PLATE Y557 [#46] 1
8310050320 2417 C-PLATE Y557 [#47] 1
8310050320 2417 C-PLATE Y557 [#49] 1
8310050320 2417 C-PLATE Y557 [#50] 1
MP10 8810004700 PHA M3 X16 SUS [#31] 3
8810004700 PHA M3 X16 SUS [#34] 3
8810004700 PHA M3 X16 SUS [#35] 3
8810004700 PHA M3 X16 SUS [#36] 3
8810004700 PHA M3 X16 SUS [#37] 3
8810004700 PHA M3 X16 SUS [#39] 3
8810004700 PHA M3 X16 SUS [#41] 3
8810004700 PHA M3 X16 SUS [#41] 3
8810004700 PHA M3 X16 SUS [#44] 3
8810004700 PHA M3 X16 SUS [#45] 3
8810004700 PHA M3 X16 SUS [#46] 3
8810004700 PHA M3 X16 SUS [#47] 3
8810004700 PHA M3 X16 SUS [#49] 3
8810004700 PHA M3 X16 SUS [#50] 3
MP1 8810008661 PHBT M3 X 8 NI-ZC3 2
J1* 6510030360 ICOM-MMAPM05MCC <ODS> 1
J2* 6510022692 06FLT-SM2-TB (LF) (SN) (M) 1
W1** 8910000070 FFC-1008 (P0.5N6L50) 1
W2** 8910000170 FFC-1019 (P0.5N14L150) 1
MP1 8810008661 PHBT M3 X 8 NI-ZC3 2
J1* 6510030460 IMSA-9210B-2-06Z236-GF 1
J2* 6510021411 S6B-ZR-SM4A-TF (LF) (SN) 1
J1* 6510022692 06FLT-SM2-TB (LF) (SN) (M) 1
J2* 6510022022 14FLT-SM2-TB (LF) (SN) (M) 1
J3* 6510021441 B6B-ZR-SM4-TF (LF) (SN) 1
J4* 6510019421 B8B-ZR-SM4-TF (LF) (SN) 1
W2*
MP9*
MP10*
MC1*
MP2
W1
MP1
MP4
MP3
MP5
MP6
MP7
*Not supplied with some versions.
*: Refer to “BOARD LAYOUTS” for the location.
**: Refer to “GENERAL WIRING” for the connection
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
• NMEA2000 UNIT (UX-232)
• AIS UNIT (UX-231)
