Icom IC-M506

6-4

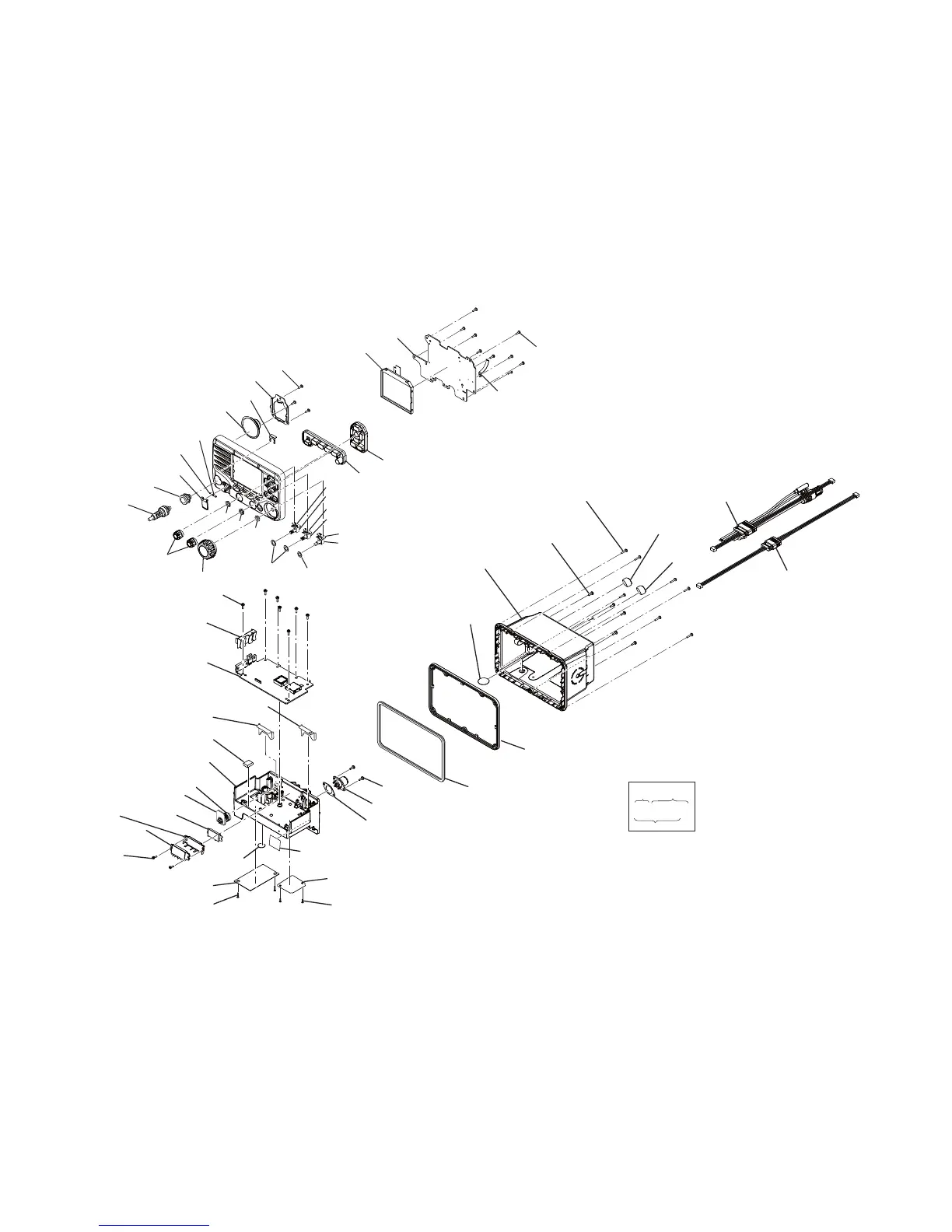

LOGIC UNIT
SP1(FRONT)
(2510001800)
MP4(FRONT)
(8930089030)
MP22(FRONT)×3
(8810008661)
MP21(FRONT)×2
(8810010610)
MP24(FRONT)×6
(8810010610)
MP25(FRONT)×7
(8810010620)
MP33(CHASSIS)
(8930055040)
MP34(CHASSIS)
(8930078850)
MP23(CHASSIS)×2
(8810010021)
MP22(CHASSIS)×7
(8810008661)
MP21(FRONT)×9
(8810010610)
MP16(FRONT)
(8930055841)
MP7(FRONT)
(8930089100)
MP5(FRONT)
(8310084000)
MP15(FRONT)
(8930052280)
MP12(FRONT)
(8610014660)
MP13(FRONT)
(8610014650)
MP14(FRONT)
(8930069020)
MP11(FRONT)
(Refer to the list.)
MC1(FRONT)
(Refer to the list.)
MP6(FRONT)
(8930088990)
R1(VOL)
(7210003431)
R1(SQL)
(7210003431)
S1(DIAL)
(2250000730)
DS1(LOGIC)
(5030003860)
MP8(FRONT)
(8930088960)
SQL UNIT
VOL UNIT
DIAL UNIT
MP10(FRONT)
(8930051970)
MP9(FRONT)
(8930088970)
MP13(CHASSIS)
(8930058780)
MP2(CHASSIS)
(8930083990)
J1(CHASSIS)
(6510004881)
MP4(CHASSIS)
(8930034300)
MP1(CHASSIS)
(8010023020)
J1(CONNECT)
(6510030290)
MP5(CHASSIS)
(8510020500)
MP14(CHASSIS)
(8930049040)
MP6(CHASSIS)
(8510020340)
IC1(CHASSIS)
MP8(CHASSIS)
(8930059122)
CONNECT UNIT
MP11(CHASSIS)
(8510021180)
MP16(CHASSIS)
(8930088980)
MP15(CHASSIS)
(8930088950)
W1(CHASSIS)
(8920000790)
W2(CHASSIS)
(8920000800)
MAIN UNIT
• NMEA2000
MAIN UNIT
• NMEA2000
CONNECT UNIT
• NMEA2000
MP1(ACCESSORIES)×2
(8810008661)
• AIS
MP1(ACCESSORIES)×2
(8810008661)
• AIS
MAIN UNIT
MP3(CHASSIS)
(8930084000)
MP7(CHASSIS)
(8930084010)
NOTE: When replacing a flat cable, form the new one in the same shape as the original.
MP1 (CHASSIS)
Ref. No.
Legend:
Unit Name
Parts No.
(1234567890)
R1(VOL)
R1(SQL)
S1(DIAL)
