59
9
CONNECTIONS AND MAINTENANCE
9

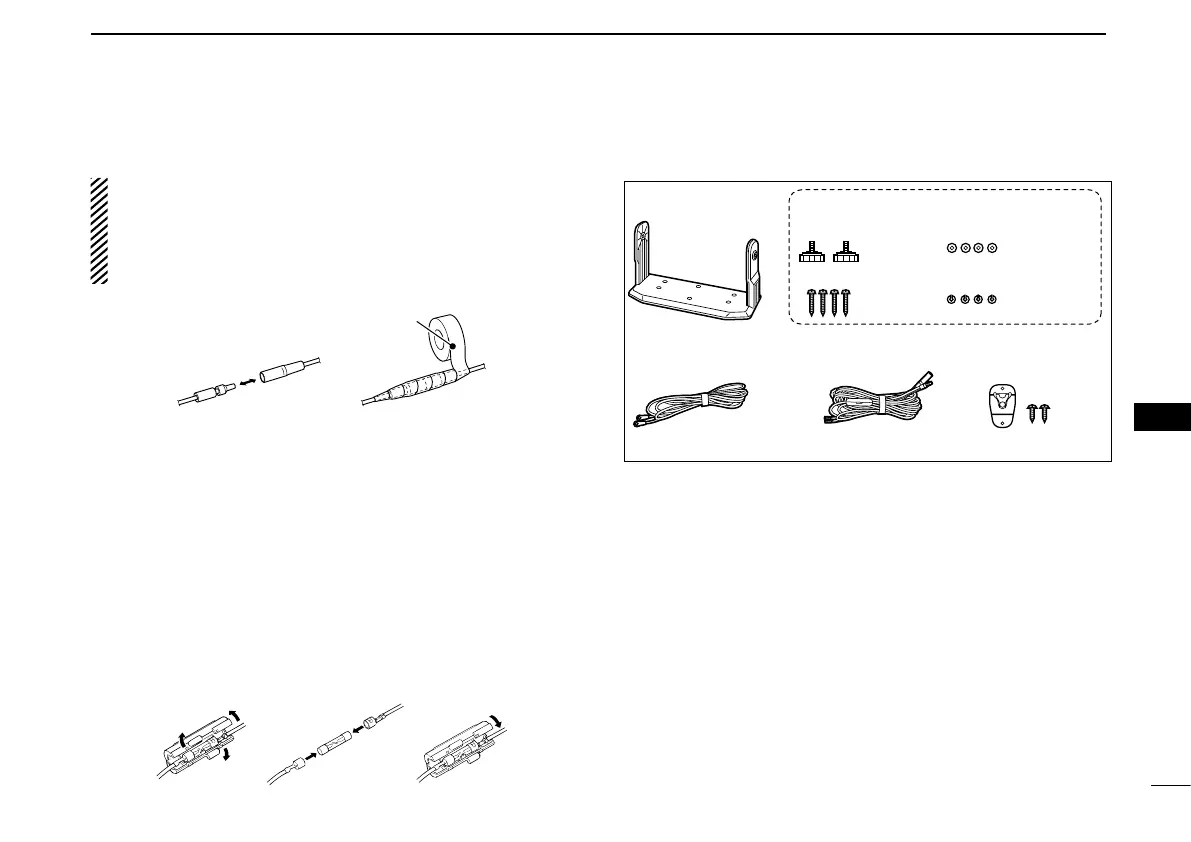

CAUTION: After connecting the DC power cable, NMEA
IN/OUT leads, external speaker lead and hailer/foghorn
lead, cover the connector and leads with a rubber vulcan-
izing tape as shown below, to prevent water seeping into
the transceiver.
Antenna
A key element in the performance of any communication
system is the antenna. Ask your dealer about antennas and
the best place to mount them.
Fuse replacement
One fuse is installed in the supplied DC power cable. If a
fuse blows or the transceiver stops functioning, track down
the source of the problem if possible, and replace the dam-
aged fuse with a new one of the proper rating.
Supplied accessories
Mounting bracketFor mounting bracket
DC power cable
(OPC-891A)
Microphone hanger cable*
(OPC-1096: Black)
Microphone hanger
and screws (3×16 mm)
Knob bolts
Screws (5×20 mm)
Flat washers (M5)
Spring washers (M5)
Ferrite core
and ties
*Depending on the version
Microphone hanger
Rest the supplied microphone on the hanger when not in use.
Connect the OPC-1096* to the transceiver’s ground terminal
with a self-tapping screw (3 × 8 mm) and the other side to the
microphone hanger to use the microphone hanger function.
*Depending on version.
•Ifthemicrophonehangerfunctionisused,Channel16isselected
automatically when the supplied microphone is rested on the
hanger.
Rubber vulcanizing tape
Fuse rating: 10 A
