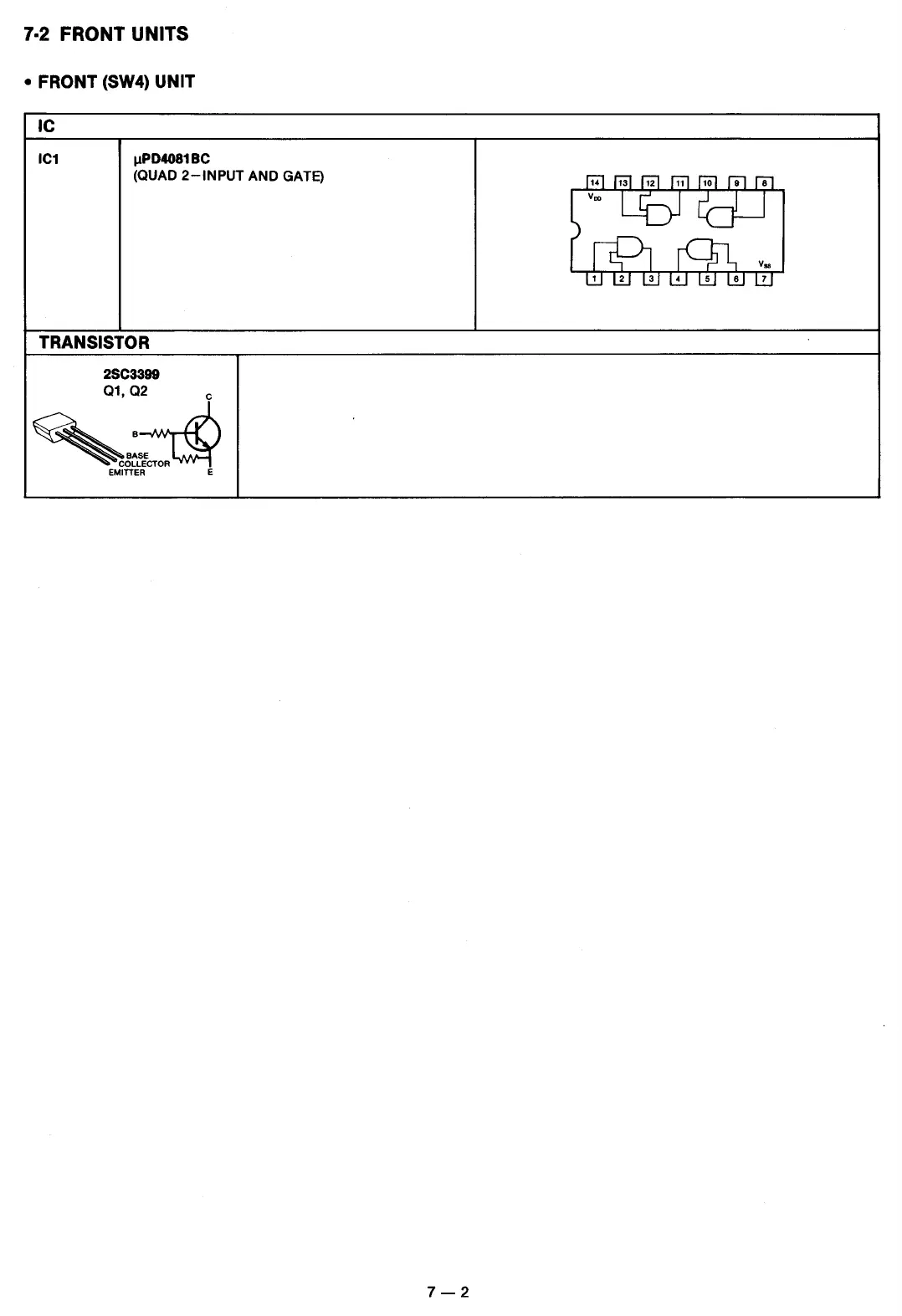

7·2
FRONT UNITS
• FRONT (SW4) UNIT
IC
IC1
µPD4081
BC
(QUAD
2-INPUT
AND GATE)
TRANSISTOR
2SC3399
Q1,:~2
c
BASE
COLLECTOR
EMITTER E
7-2
