Icom IC-R7000 - Inside Bottom View (Power Supply and DC-DC Converter Units); Inside Bottom View (Logic Unit)

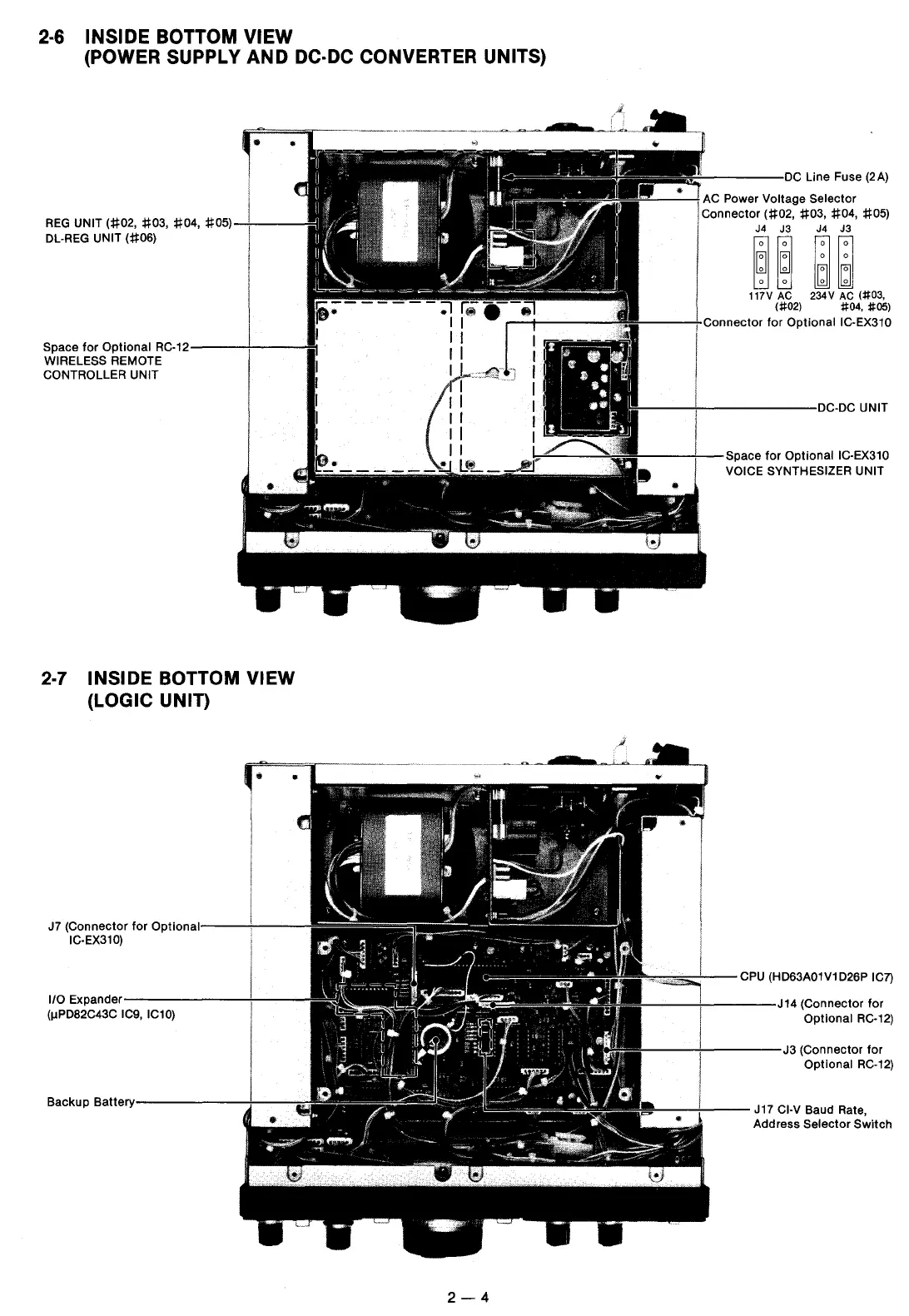

2-6 INSIDE BOTTOM VIEW
(POWER SUPPLY
AND DC-DC CONVERTER UNITS)
..
REG UNIT (#02, #03, #04, #05)-+---
DL-REG UNIT (#06)
2-7 INSIDE BOTTOM VIEW
(LOGIC
UNln
J7 (Connector for Optionall---'-----
IC-EX310)
1/0
Expander--------+----
(µPD82C43C IC9, IC10)
2-4
iiiiiii~~----DC Line Fuse (2A)
=------: AC Power Voltage Selector
Connector (#02, #03, #04, #05)
J4 J3 J4 J3
~~ ~~
117V AC 234V AC (#03,
(#02) #04, #05)
---+
1
Connector for Optional IC-EX310
-----"f-------DC-DC UNIT
;----+---Space for Optional IC-EX310
VOICE SYNTHESIZER UNIT
'-----~---J14 (Connector for
Optional RC-12)
'-----;----- J3 (Connector for
Optional RC-12)
~--+--- J17 Cl-V Baud Rate,
Address
Selector Switch
