Icom IC-R7000 Service Manual

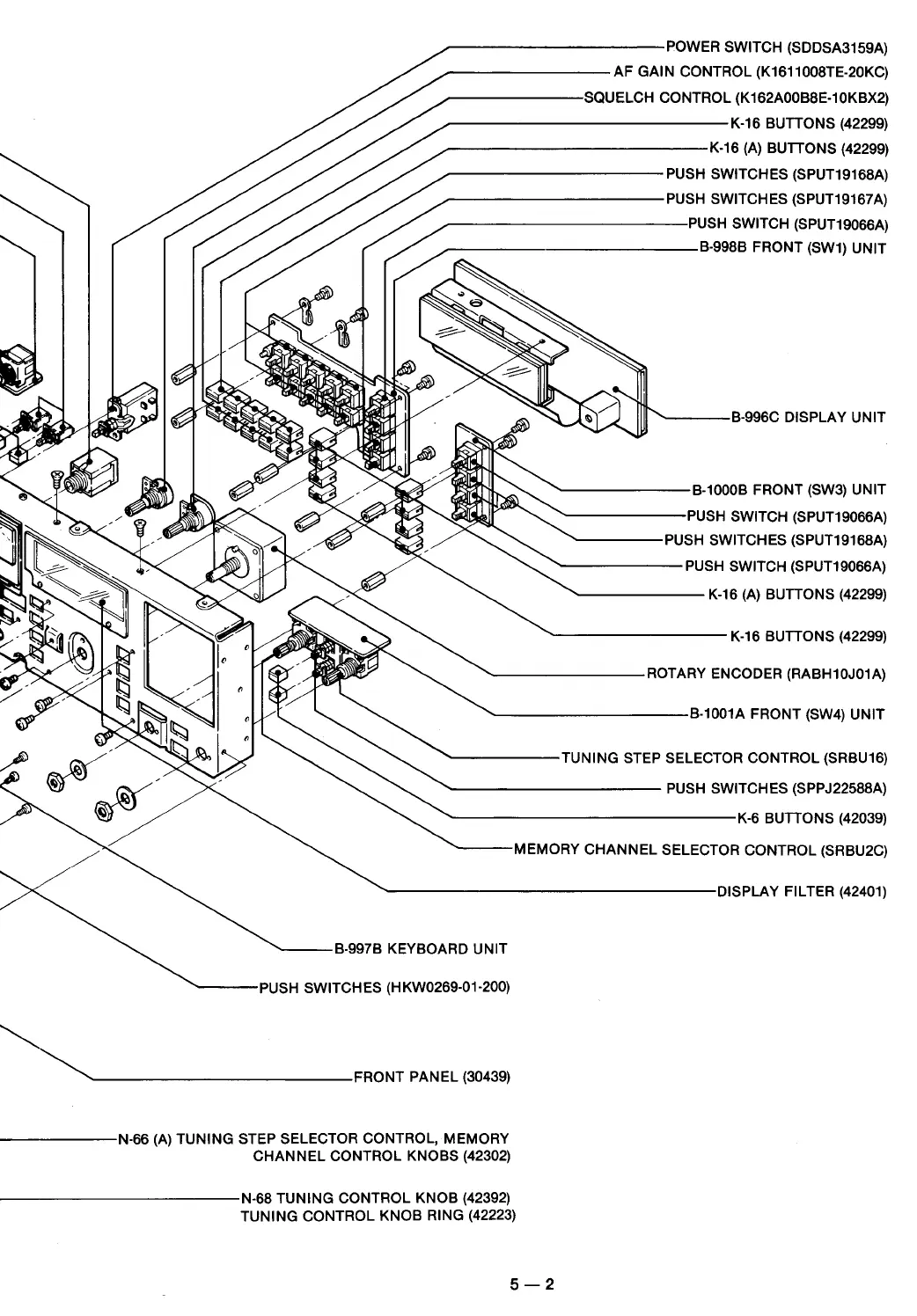

.----------POWER SWITCH (SDDSA3159A)
.--------AF GAIN CONTROL (K1611008TE-20KC)
.-------SQUELCH CONTROL (K162AOOB8E-10KBX2)
.-------------K-16 BUTTONS (42299)
.------------K-16 (A) BUTTONS (42299)
.----------PUSH SWITCHES (SPUT19168A)
.----------PUSH SWITCHES (SPUT19167A)
~----------PUSH SWITCH (SPUT19066A)
~-----------B-998B FRONT (SW1) UNIT
---B-996C DISPLAY UNIT
------B-1000B FRONT (SW3) UNIT
------PUSH SWITCH (SPUT19066A)
----PUSH SWITCHES (SPUT19168A)
------PUSH SWITCH (SPUT19066A)
------ K-16 (A) BUTTONS (42299)
--------K-16 BUTTONS (42299)
-------ROTARY ENCODER (RABH10J01A)
---------B-1001A FRONT (SW4) UNIT
'-----TUNING STEP SELECTOR CONTROL (SRBU16)
---------- PUSH SWITCHES (SPPJ22588A)
-------------K-6 BUTTONS (42039)
---MEMORY CHANNEL SELECTOR CONTROL (SRBU2C)
'----------------DISPLAY FIL TEA (42401)
---B-997B KEYBOARD UNIT
---PUSH SWITCHES (HKW0269-01-200)
-----N-66 (A) TUNING STEP SELECTOR CONTROL, MEMORY
CHANNEL CONTROL KNOBS (42302)
-----------N-68 TUNING CONTROL KNOB (42392)
TUNING CONTROL KNOB RING (42223)
5-2
