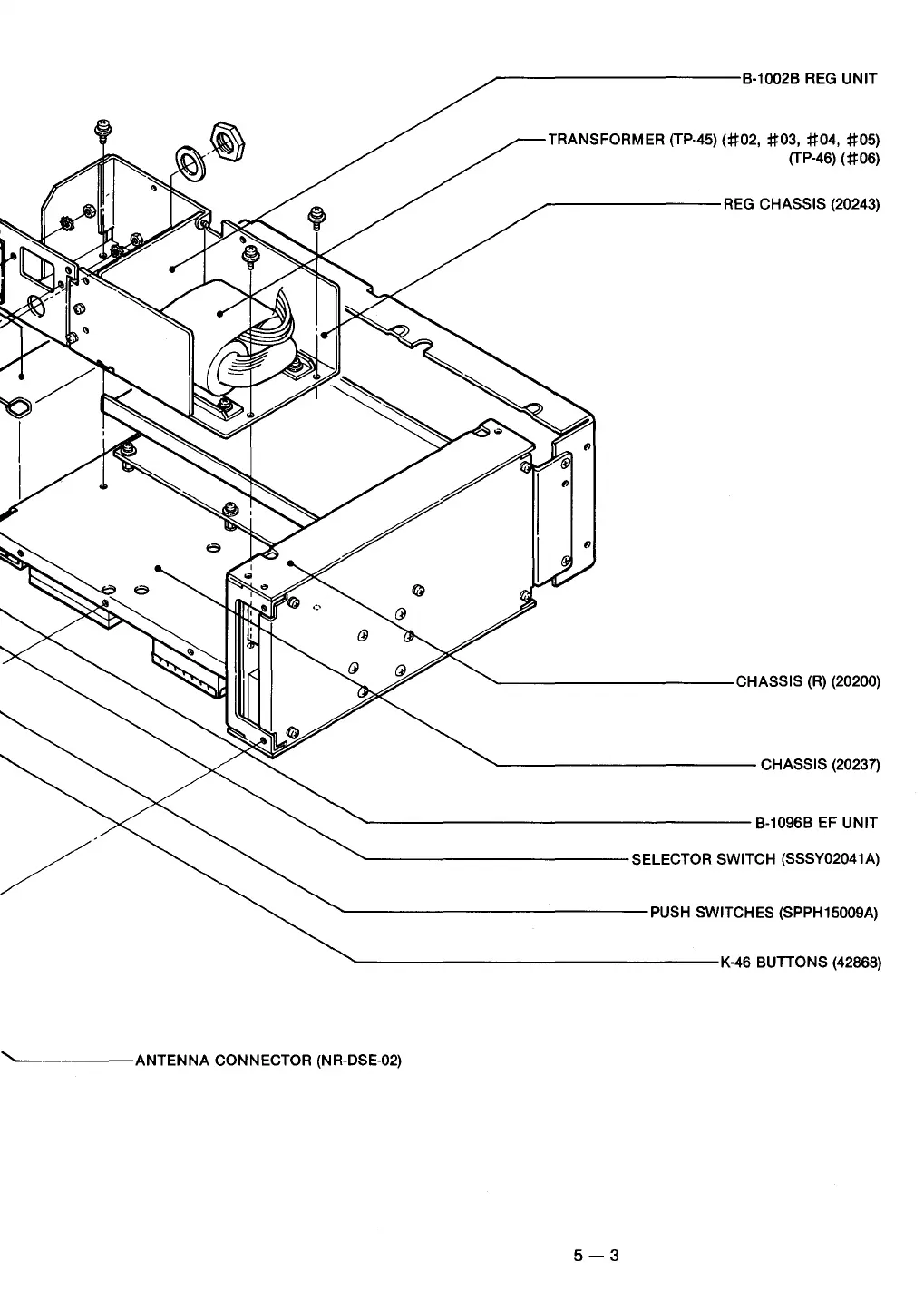

,,------------8-10028 REG UNIT
TRANSFORMER (TP-45) (#02, #03, #04, #05)
(TP-46) (#06)
--------REG CHASSIS (20243)
-----------CHASSIS (R) (20200)
'------------CHASSIS (20237)
-----------------8-10968 EF UNIT
------------SELECTOR SWITCH (SSSY02041A)
'--------------PUSH SWITCHES (SPPH15009A)
----------------K-46 BUTTONS (42868)
------ANTENNA CONNECTOR (NR-DSE-02)
5-3
