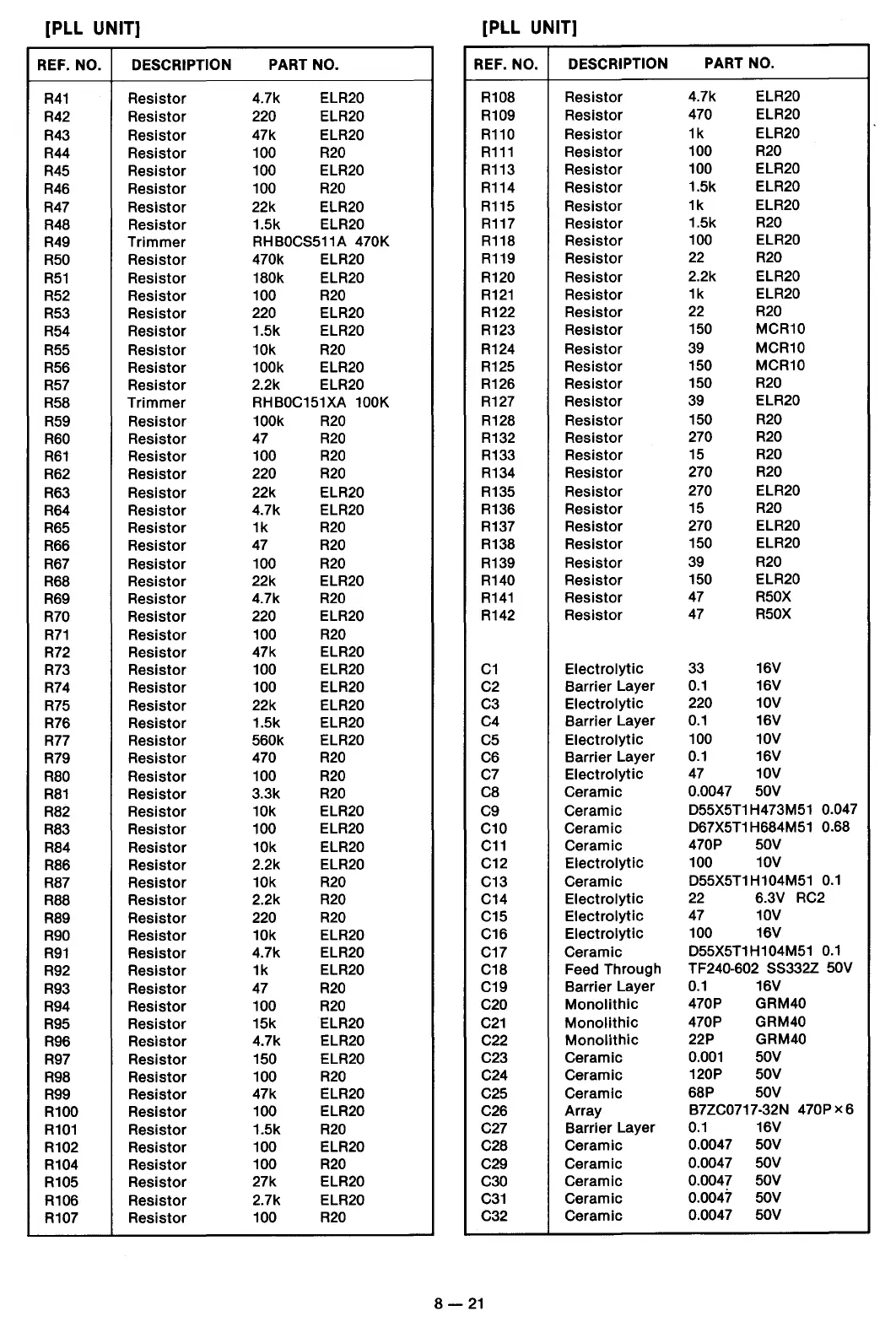

Icom IC-R7000 - Page 91

[PLL UNIT]
[PLL UNIT]
REF. NO.
DESCRIPTION
PART NO.
REF. NO.
DESCRIPTION
PART NO.
R41 Resistor
4.7k
ELR20
R108
Resistor
4.7k
ELR20
R42 Resistor
220 ELR20
R109
Resistor
470 ELR20
R43 Resistor
47k
ELR20
R110
Resistor
1k
ELR20
R44 Resistor
100 R20
R111 Resistor
100 R20
R45 Resistor
100 ELR20
R113
Resistor
100
ELR20
R46 Resistor
100 R20
R114
Resistor
1.5k
ELR20
R47 Resistor
22k
ELR20
R115
Resistor
1k
ELR20
R48 Resistor
1.5k
ELR20
R117
Resistor
1.5k
R20
R49
Trimmer
RHBOCS511A 470K
R118
Resistor
100 ELR20
R50 Resistor
470k ELR20
R119
Resistor
22 R20
R51 Resistor
180k ELR20
R120
Resistor
2.2k
ELR20
R52 Resistor 100
R20
R121
Resistor
1k
ELR20
R53 Resistor
220 ELR20
R122
Resistor
22
R20
R54 Resistor
1.5k
ELR20
R123
Resistor
150
MCR10
R55 Resistor
10k R20
R124
Resistor
39
MCR10
R56 Resistor
100k ELR20
R125
Resistor
150 MCR10
R57 Resistor
2.2k
ELR20
R126
Resistor
150 R20
R58 Trimmer
RHBOC151XA
100K
R127
Resistor
39
ELR20
R59 Resistor
100k R20
R128 Resistor
150
R20
R60
Resistor
47 R20
R132
Resistor
270
R20
R61
Resistor 100
R20
R133
Resistor
15 R20
R62 Resistor
220 R20
R134
Resistor
270
R20
R63
Resistor
22k
ELR20
R135
Resistor
270 ELR20
R64 Resistor
4.7k
ELR20
R136
Resistor
15 R20
R65 Resistor
1k
R20
R137
Resistor
270
ELR20
R66 Resistor
47 R20
R138
Resistor
150 ELR20
R67 Resistor
100 R20
R139
Resistor
39 R20
R68 Resistor
22k
ELR20
R140
Resistor
150 ELR20
R69
Resistor
4.7k
R20
R141 Resistor
47 R50X
R70 Resistor
220
ELR20
R142
Resistor
47
R50X
R71 Resistor 100
R20
R72 Resistor
47k
ELR20
R73 Resistor
100
ELR20
C1
Electrolytic
33
16V
R74 Resistor
100 ELR20
C2
Barrier Layer
0.1 16V
R75 Resistor
22k
ELR20
C3
Electrolytic
220
10V
R76 Resistor
1.5k
ELR20
C4
Barrier Layer
0.1 16V
R77
Resistor
560k ELR20 C5
Electrolytic
100
10V
R79
Resistor
470 R20 C6
Barrier Layer
0.1 16V
R80 Resistor
100 R20
C7
Electrolytic
47
10V
R81 Resistor
3.3k
R20
CB
Ceramic
0.0047
50V
R82
Resistor
10k ELR20 C9
Ceramic
D55X5T1 H473M51
0.047
R83 Resistor
100
ELR20 C10
Ceramic
D67X5T1 H684M51
0.68
R84 Resistor
10k ELR20
C11
Ceramic
470P 50V
R86 Resistor
2.2k
ELR20
C12
Electrolytic
100
10V
R87 Resistor
10k R20 C13
Ceramic
D55X5T1H104M51 0.1
R88 Resistor
2.2k
R20 C14
Electrolytic
22
6.3V RC2
R89 Resistor
220
R20
C15
Electrolytic
47
10V
R90 Resistor
10k ELR20
C16
Electrolytic
100
16V
R91 Resistor
4.7k
ELR20 C17
Ceramic
D55X5T1H104M51
0.1
R92 Resistor
1k
ELR20 C18
Feed Through
TF240-602 SS332Z 50V
R93 Resistor
47
R20
C19
Barrier Layer
0.1 16V
R94 Resistor
100 R20
C20
Monolithic
470P GRM40
R95 Resistor
15k
ELR20 C21
Monolithic
470P
GRM40
R96 Resistor
4.7k
ELR20 C22
Monolithic
22P
GRM40
R97 Resistor
150 ELR20
C23
Ceramic
0.001
50V
R98 Resistor
100
R20
C24 Ceramic
120P 50V
R99
Resistor
47k
ELR20 C25
Ceramic
68P
50V
R100
Resistor
100
ELR20 C26
Array
B7ZC0717-32N
470P x 6
R101 Resistor
1.5k
R20
C27
Barrier Layer
0.1 16V
R102
Resistor
100 ELR20
C28
Ceramic
0.0047 50V
R104
Resistor
100 R20 C29
Ceramic
0.0047
50V
R105
Resistor
27k
ELR20 C30
Ceramic
0.0047
50V
R106
Resistor
2.7k
ELR20
C31
Ceramic
0.0047 50V
R107
Resistor
100 R20
C32
Ceramic
0.0047 50V
