Icom IC-R7100 Service Manual

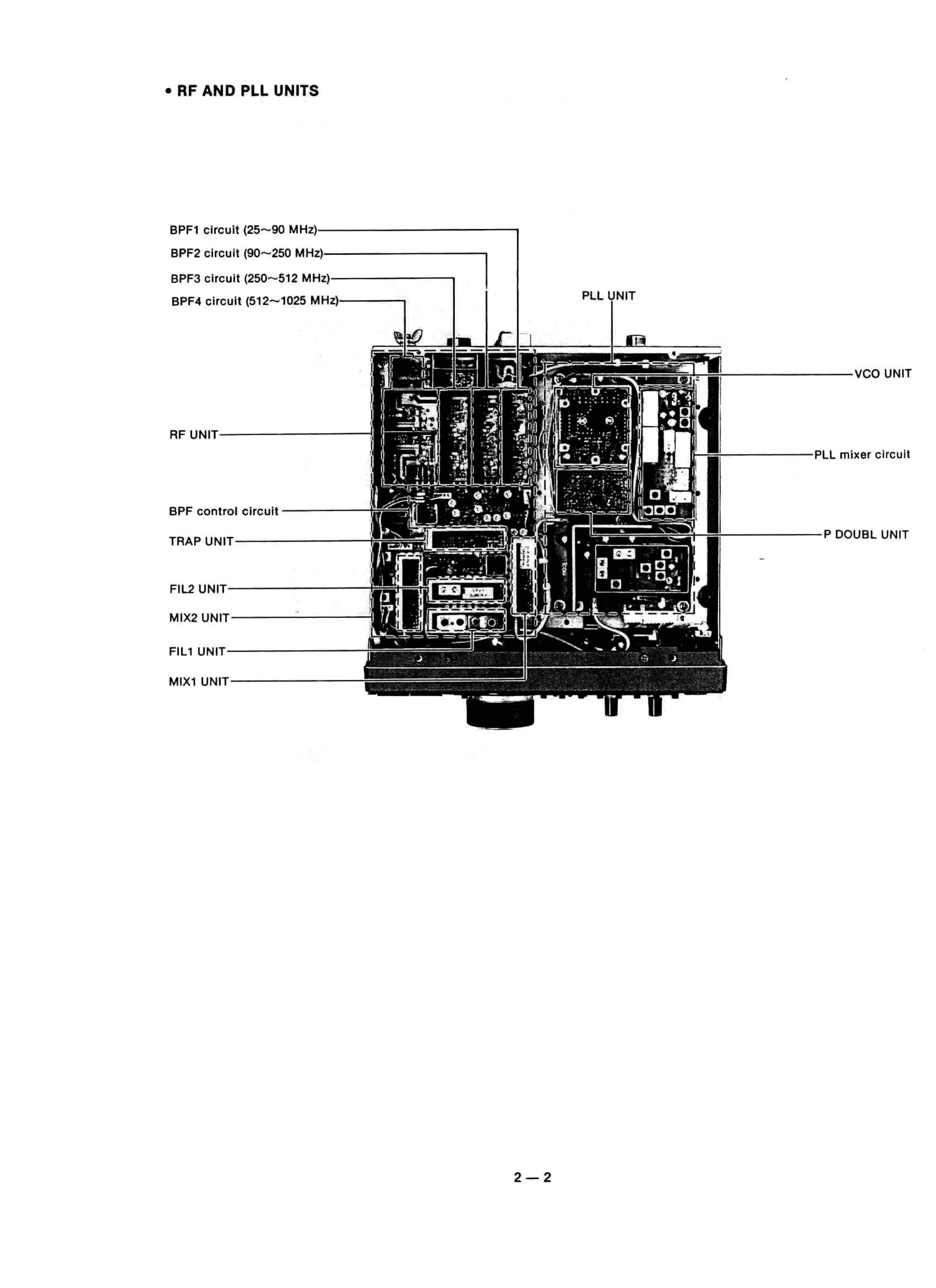

• RF AND PLL UNITS
BPF1 circuit (25 -90 MHz)I----------------,
BPF2 circu it 190 -250 MHz )'----------
BPF3 circuit (250 -512 MHz)'-------~
BPF4 circuit (512 -1025 MHz)---~
RF UNIT--------
BPF centrel circuit ------
TRAP UNIT'--------
FIl2 UNIT--------
MI X2 UNIT--- ---=.----
Fll1 UNIT--------
MI X1 UNIT '--------
2-2
Pll UNIT
-------VCO UNIT
'------PLL mixer circuit
------ P DOUBl UNIT
