7 - 1
[CHASSIS PARTS]
REF ORDER
DESCRIPTION
QTY.
NO. NO.
J1 6910015630 2682 ANT CONNECTOR <EIK> 1
SP1 2510001650 K028NA510-13 <OSC> 1
EP1 3310004270 AGA121204-S0-A6 <MRF> 1
MP1 8010022180 3322 CHASSIS 0 1
MP2 8210027110 3322 FRONT PANELASSEMBLY 1
MP6 8310078560 3322 WINDOW PLATE (A) 1
MP7 8610014360 KNOB N-397 1
MP8 8610014370 KNOB N-398 1
MP9 8930083070 3322 LENS 1
MP10 8930083080 3322 C-BUTTON 1
MP11 8930083090 3322 D-BUTTON 1
MP12 8210027090 3322 REFLECTOR 1
MP13 8930083100 3322 JACK CAP (TOT) 1
MP14 8930083110 3322 SD CAP (TOT) 1
MP15 8930083160 3322 KEYBOARD <SEP> 1
MP16 8930083120 3322 MAIN SEAL (TOT) 1
MP18 8930083140 3322 CONTACT RUBBER (TOT) 1
MP19 8930083670 O-RING (CL) (TOT) 1
MP20 8930083680 O-RING (CM) (TOT) 1
MP21 8830003670 VR NUT (AC) 1
MP22 8510020280 3322 SHIELD PLATE 1
MP23 8830003660 STEP NUT (M) 1
MP24 8930083420 3322 WHITE SHEET 1
MP25 8930083150 3322 WINDOW SHEET 1
MP26 8930083700 DOUBLE SIDE TAPE (BM) 1
MP27 8930083690 3322 GPS SPONGE 1
MP28* 8930083810 SPONGE (LJ) 1
MP30 8810011050 BT No. O M2X3 NI-ZC3 16
MP33 8810010850 PHBT B0 M2X8 SUS SSBC 2
MP35 8930068980 2905 VENT SHEET 1
MP36 8930069350 2905 MIC SEAL (TOP)S 1
MP37 8930058550 O-RING (AS) 1
MP38 8930055920 INSULATION PLATE GQ 1
MP39 8950004430 DOUBLE SIDE TAPE (O) 2
MP41 8930076440 3115 VENT SHEET 1
MP42 8930083880 O-RING (CK) 1
MP43* 8930058500 INSULATION PLATE HB 1
MP44 8930083900 INSULATION SHEET (MW) 1
MP45 8930083910 3322 LCD SHEET 1
MP47 8930084720 SPONGE (LP) 1
MP48 8930084600 SPONGE (LL) 2
MP49* 8930070590 SHIELD TAPE (S) 1
MP50 8930058500 INSULATION PLATE HB 1
[MAIN UNIT]
[ACCESSORIES]
[LOGIC UNIT]
REF ORDER
DESCRIPTION
QTY.
NO. NO.
J2 6450000870 HEC2711-01-020 1
J3* 6510028130 AXK5S50047YG 1
J4 6510025880 TC38-108-01 <CFE> 1
J5 6450000131 HSJ1102-018540 1
S1* 2260003320 SKRTLAE010 1
S2 2260001900 SW-149 (SKHLLD) 1
MP1 8950007850 3322 CONTACT SPRING <CCP> 1
MP8* 8410002610 2888 PA HEATSINK Y835 1
MP9 6910022500 N041M0-01C000CR <CCP> 1
MP10 6910022500 N041M0-01C000CR <CCP> 1
REF ORDER
DESCRIPTION
QTY.
NO. NO.
J1* 6510025970 41-002AA-R <MRF> 1
J2* 6510028080 27FHSY-RSM1-GAN-TB (LF) (SN) 1
J3* 6510028170 SDHL-8BNS-K-363-A0-ETB (HF) 1
J4* 6510024580 HSJ1621-019011 1
J5* 6510027760 AXK6S50547YG 1
DS10 5030003520 BTG-12864ET-FBWD-N-G-A2 <VKHK> 1
MC1 7700002850 EM6022P-65B-G <HOR> 1
S1* 2260003300 EVQPQHB55 1
S2* 2260003300 EVQPQHB55 1
S3* 2260003300 EVQPQHB55 1
S4* 2260003300 EVQPQHB55 1
S5* 2260003300 EVQPQHB55 1
S6* 2260003300 EVQPQHB55 1
S7* 2260003300 EVQPQHB55 1
S8* 2260003300 EVQPQHB55 1
S9* 2260003300 EVQPQHB55 1
S10* 2260003300 EVQPQHB55 1
S11* 2260003300 EVQPQHB55 1
S12 2250000710 F082EN7510W-1+C L20FX6 <SLVJ> 1
BT1* 3020000390 ML414HIV01E 1
REF ORDER
DESCRIPTION
QTY.
NO. NO.
EP1 6910018620 BLACK HANDY STRAP 1
EP2 3310002150 FA-S270C 1
EP3 (Optional) BC-167SD [EUR] 1
(Optional) BC-167SD [ITR] 1
(Optional) BC-167SA [USA] 1
(Optional) BC-167SD [KOR] 1
(Optional) BC-167SA [EXP] 1
(Optional) BC-167SD [EXP-01] 1
(Optional) BC-167SV [AUS] 1
EP4 (Optional) BP-271 EXP
1
MP1 (Optional) MB-127 1

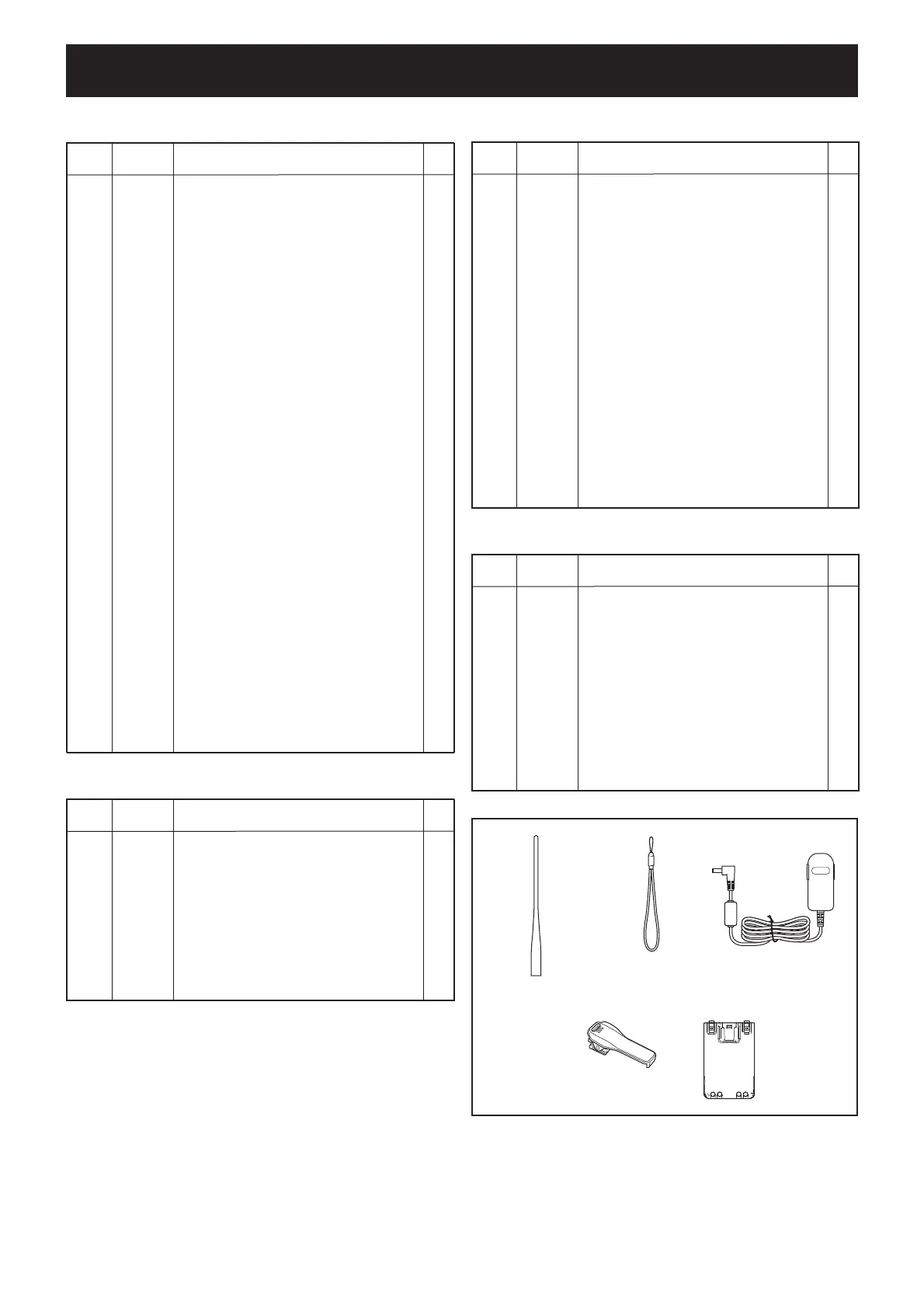

SECTION 7
MECHANICAL PARTS
*: Refer to “BOARD LAYOUTS” for the location.
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
EP2 EP3EP1
MP1 EP4
