BIA-DPC1 rev 4 Page 12

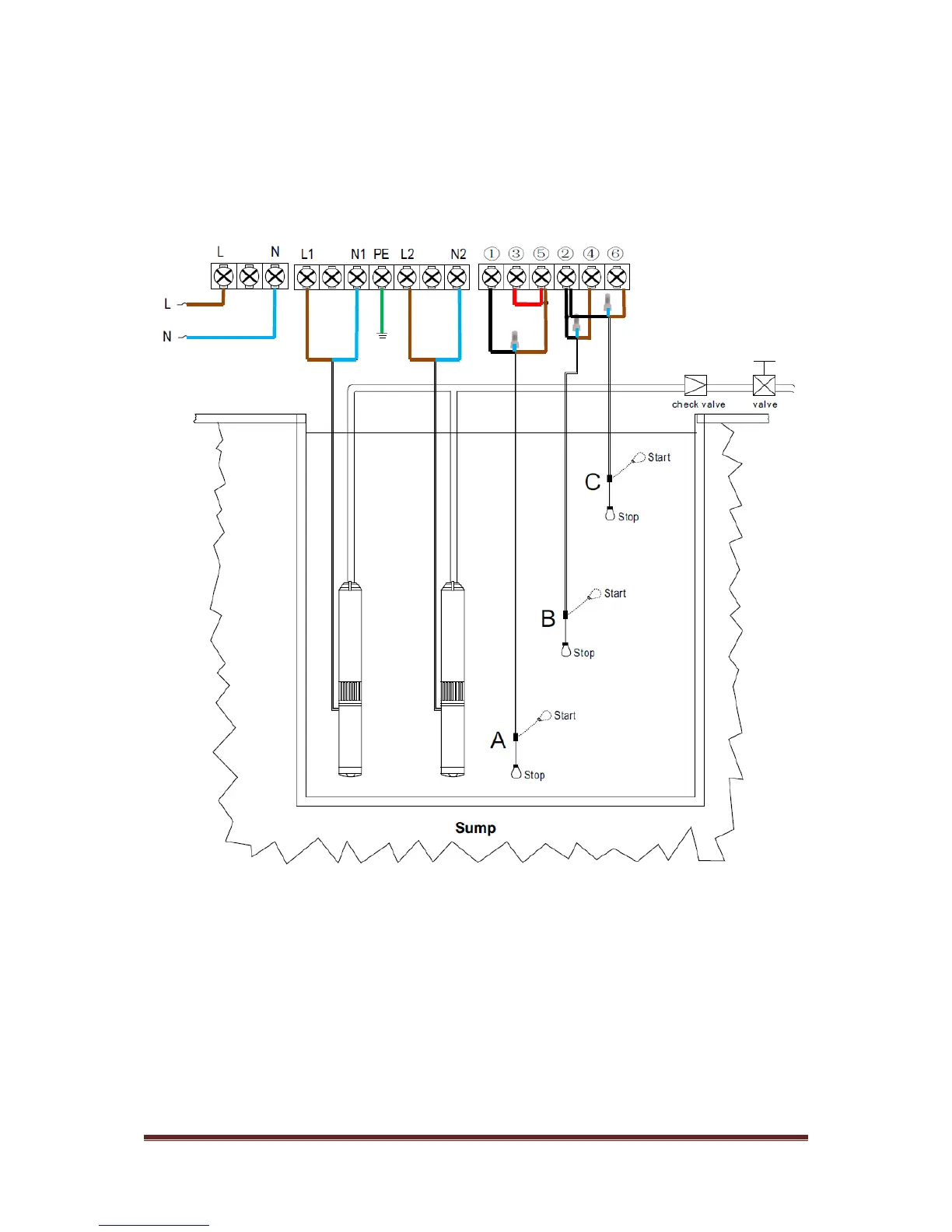

2.5.1 Drainage by liquid level control through float switches or probes (cont)
Note: for 4 float switch installation connect float switch A (pump off) to terminals 1 and 3, float switch B (1
st
pump on) to terminals 1 and 5, float switch C (2
nd
pump on) to terminals 2 and 4 and float switch D (alarm) to
terminals 2 and 6.
