BIA-DPC1 rev 4 Page 23

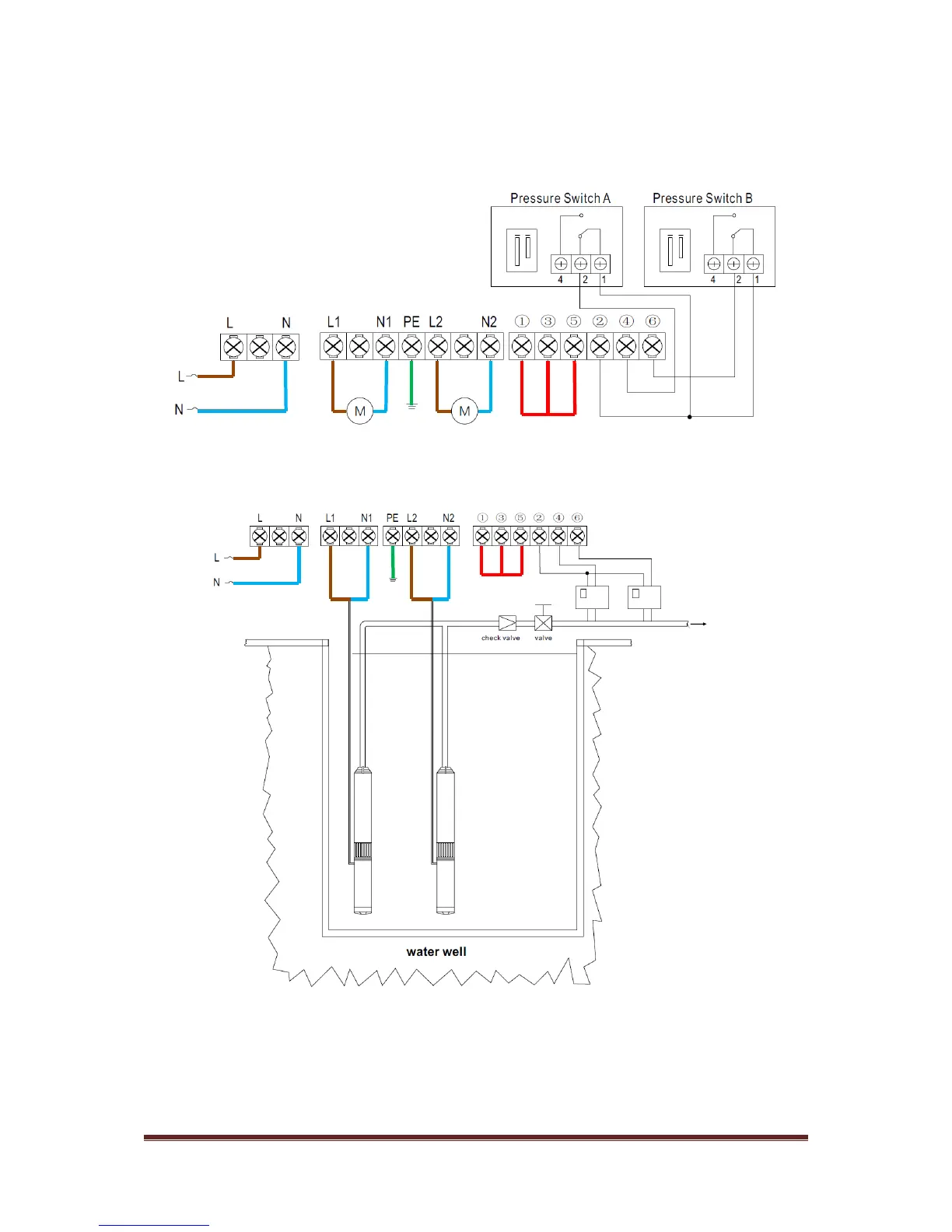

3.5 Electrical connections for BOOSTING applications.
3.5.1 Water supply by pressure control through pressure switch and tank.
