13

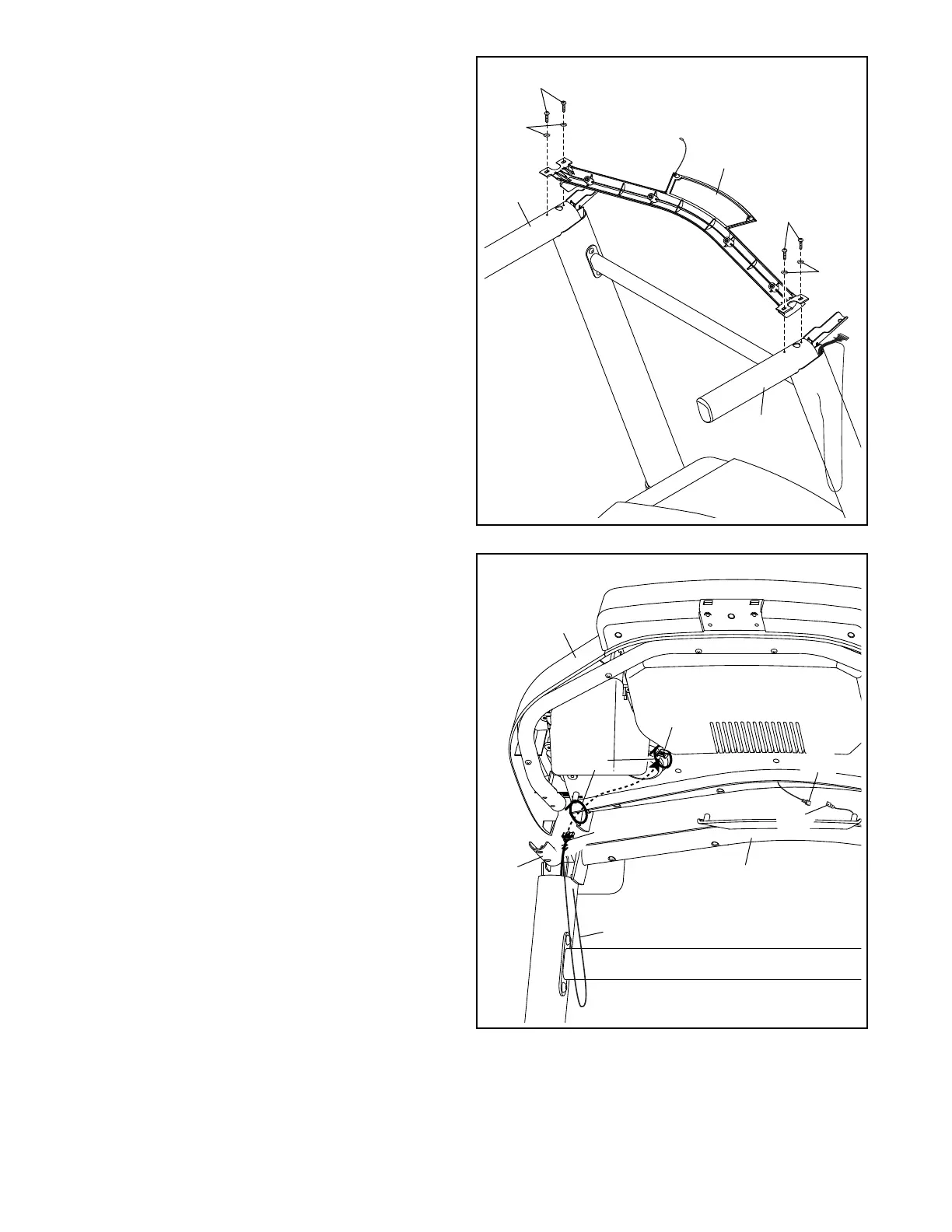

11. IMPORTANT: To avoid damaging the
Crossbar (75), do not use power tools and do
not overtighten the #10 x 3/4" Screws (9).
Orient the Crossbar (75) as shown. Attach the
Crossbar to the Handrails (72) with four #10 x
3/4" Screws (9) and four #10 Star Washers (8);
start all four Screws, and then tighten them.
12. With the help of a second person, hold the con-
sole assembly (K) near the Handrails (72).
Connect the ground wire (L) from the console
assembly (K) to the Console Ground Wire (76)
on the Crossbar (75).
Next, insert the Upright Wire (80) through the
two indicated looped ties (M).
See the inset drawing. Connect the Upright
Wire (80) to the console wire (N). The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. Then, remove the wire tie (A)
from the Upright Wire.
12
K
M
N
A
80
72
75
76
L
75
72
11
9
9
8
8
72
To Next Page
