14

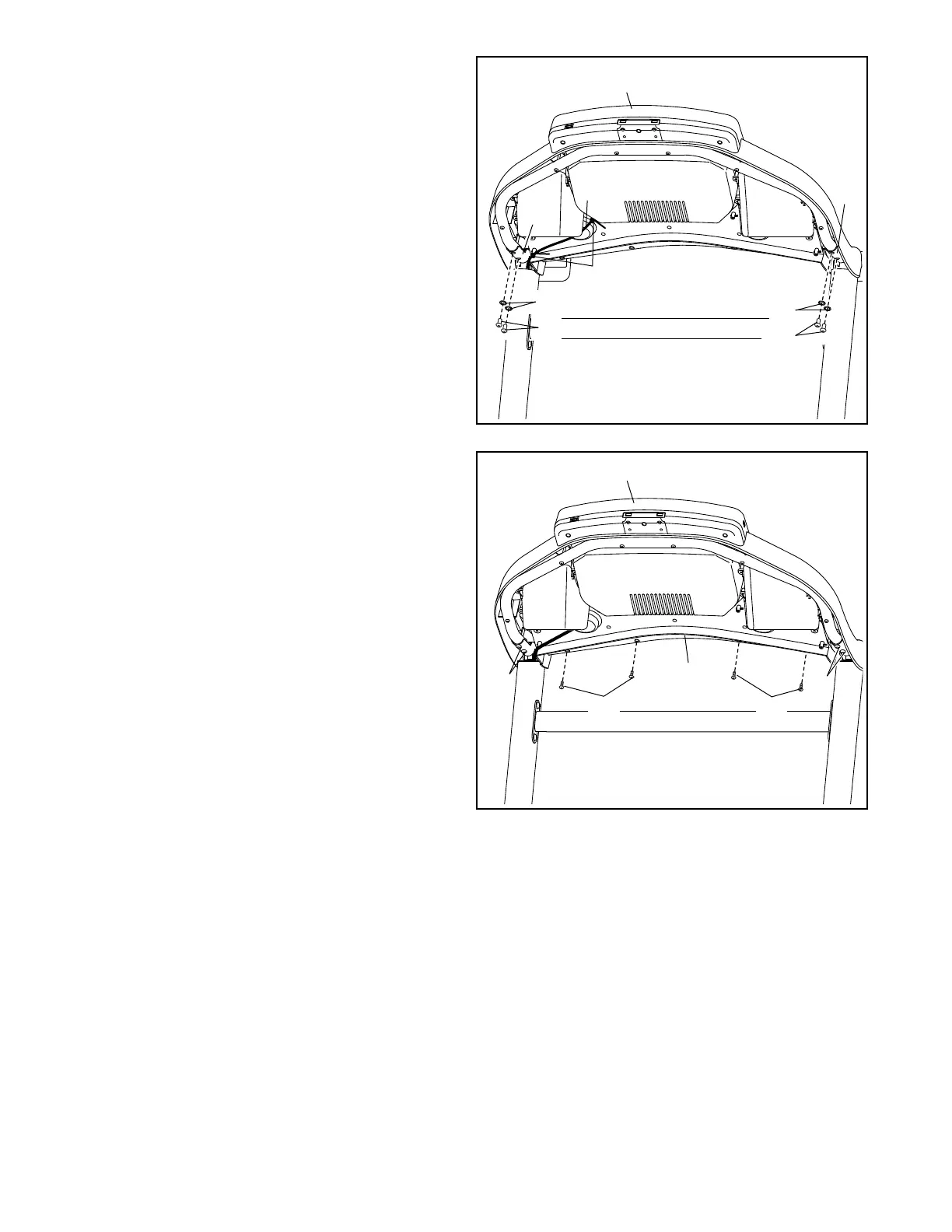

13. Set the console assembly (K) on the Handrails
(72). Do not pinch any wires.
Insert the excess Upright Wire (80) into the con-
sole assembly (K). Then, tighten the two ties (M)
around the Upright Wire and cut off the ends of
the ties.
Attach the console assembly (K) with the four
5/16" x 3/4" Screws (13) that you removed in
step 10 and four 5/16" Star Washers (7); do not
tighten the Screws yet.
13
K
M
13
7
13
7
80
72
72
14. Attach the Crossbar (75) to the console assem-
bly (K) with four #8 x 3/4" Screws (11); start all
four Screws, and then tighten them. Do not
overtighten the Screws.
Firmly tighten the four 5/16" x 3/4" Screws
(13).
14
K
13
75
11
11
13
To Next Page
