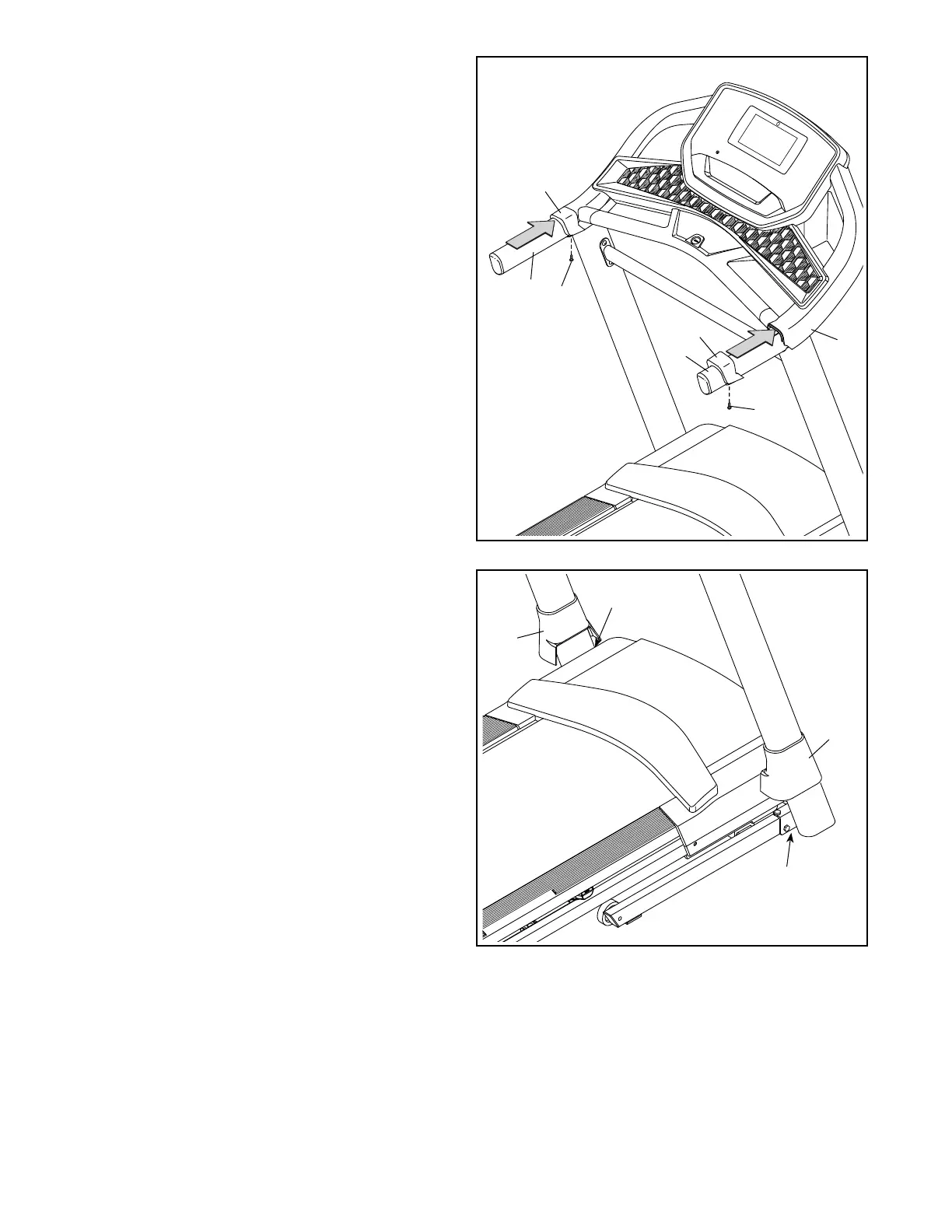

15. Slide the Right Handrail Cover (71) onto the right
Handrail (72) and against the console assem-
bly (K). Tighten a #8 x 3/4" Screw (11) into the
bottom of the Right Handrail cover; do not over-
tighten the Screw.
Attach the Left Handrail Cover (70) to the left
Handrail (72) in the same way.
11
15
72
72
71
70
11
K
16. Firmly tighten the three Screws (2, 3, 4) on each
side of the treadmill, and press the Base Covers
(93, 94) into place.
2, 3, 4
2, 3, 4
16
93
94
