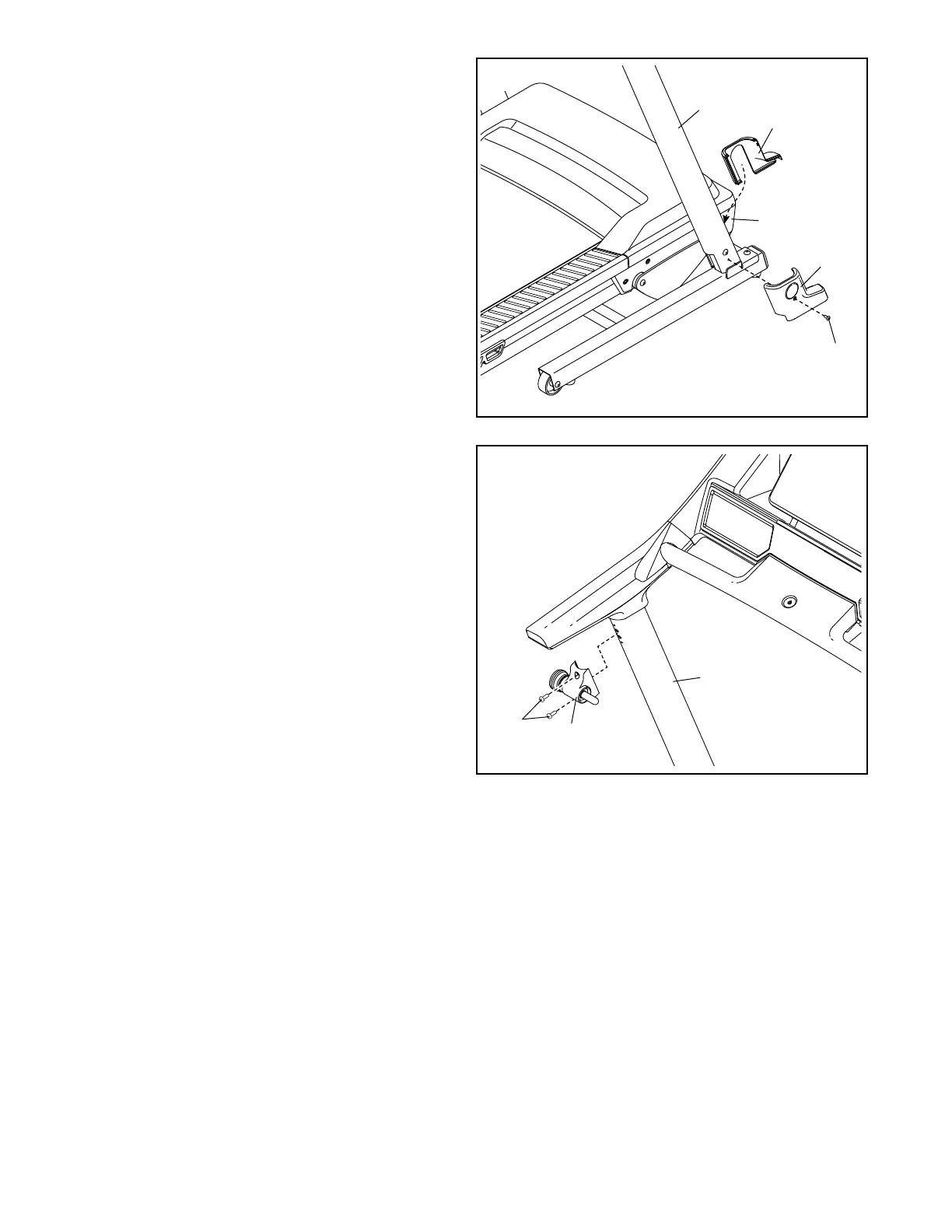

9. Orient the Storage Latch (79) as shown. Attach
the Storage Latch to the Left Upright (80) with
two #10 x 1" Screws (26); start both Screws,
and then tighten them.
8. Slide the Right Inner Upright Cover (84) between
the Right Upright (81) and the Motor Hood (62).
Next, press the Right Outer Upright Cover (85)
against the Right Inner Upright Cover until they
snap together.
Then, tighten an #8 x 3/8" Screw (6) into the
Right Outer Upright Cover (85). Do not over-
tighten the Screw.
Repeat this step on the left side of the
treadmill.
84
62
85
6
8
81
10. Make sure that all parts are properly tightened before you use the treadmill. To protect the floor or car-
pet, place a mat under the treadmill. To avoid damage to the console, keep the treadmill out of direct sunlight.
Keep the included hex keys in a secure place. One of the hex keys is used to adjust the walking belt (see
pages 20 and 21). Note: Extra parts may be included.
