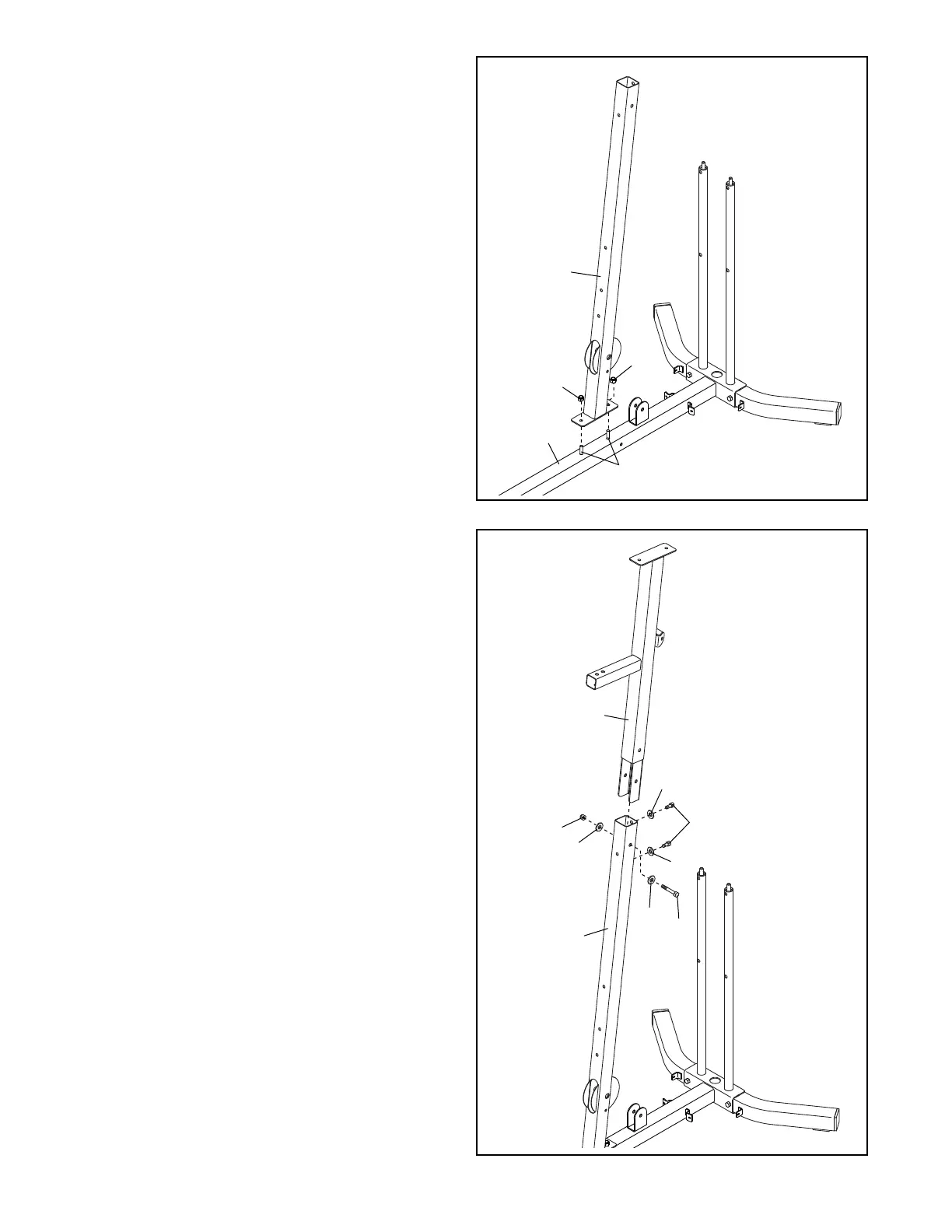

4. Orient the Lower Upright (20) as shown.
Attach the Lower Upright (20) to the Base (1)
with the two indicated M8 x 65mm Carriage Bolts
(87) and two M8 Locknuts (58). Do not tighten
the Locknuts yet.
5. Orient the Upper Upright (3) as shown.
Insert the Upper Upright (3) into the Lower
Upright (20). Attach the Upper Upright with an
M10 x 65mm Bolt (49), two M10 x 20mm Screws
(72), four M10 Washers (57), and an M10
Locknut (56). Do not tighten the Locknut or
the Screws yet.
4
5
87
58
20
20
1
58
3
72
57
57
57
57
56
49
