ICON PRO-FORM SPORT POWER STACK XT - Page 17

17

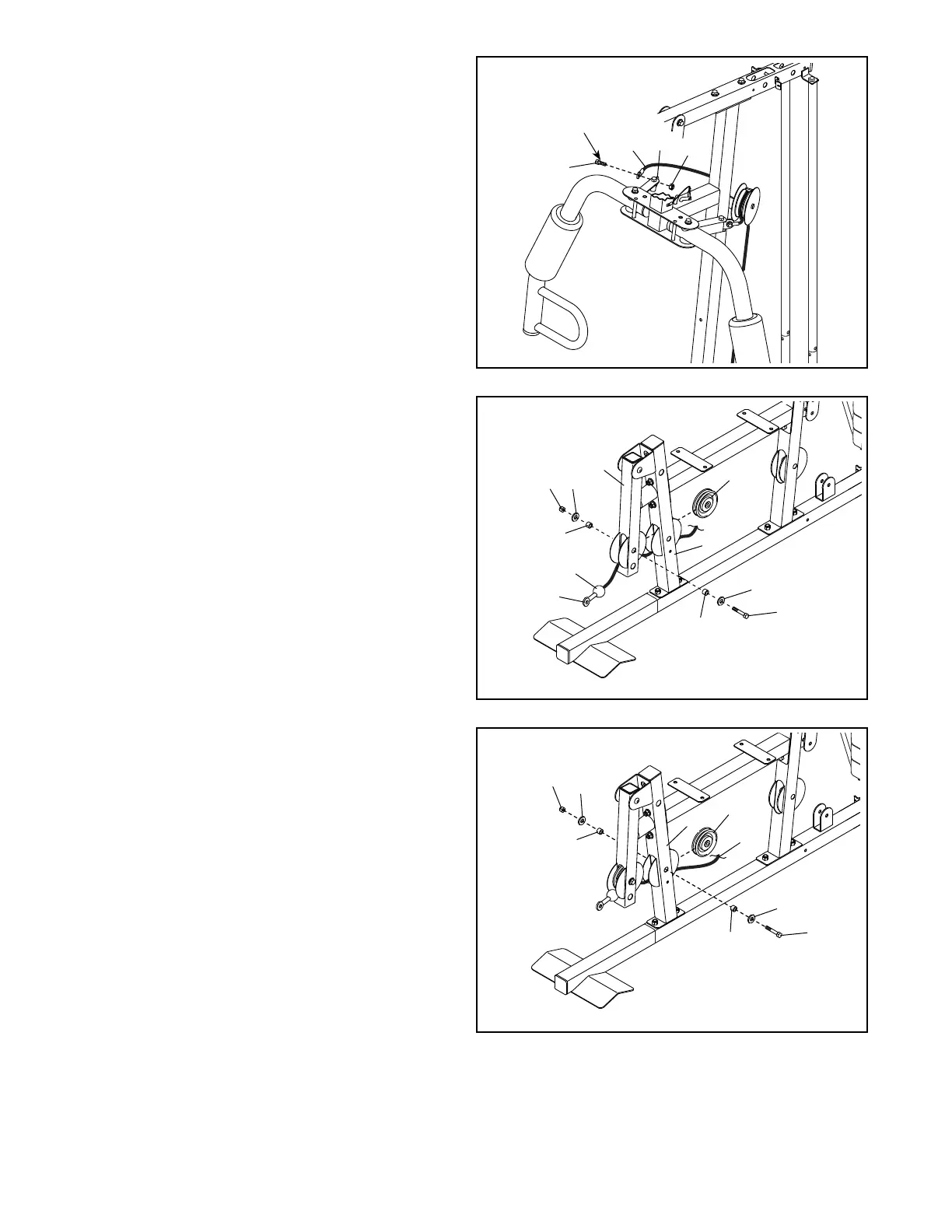

19. Apply grease to an M8 x 20mm Shoulder
Bolt (65).
Attach the Arm Cable (54) to the indicated Cable
Pivot (39) with the M8 x 20mm Shoulder Bolt
(65) and an M8 Locknut (58).
19
58
65
20. See the CABLE DIAGRAM. Identify the Low
Cable (53).
Route the Low Cable (53) through the Leg
Lever (8) and the Front Leg (7). Make sure that
the eyelet end (I) of the Low Cable is in the
location shown.
Attach a Pulley (48) inside the Leg Lever (8),
above the Low Cable (53), with an M10 x 60mm
Bolt (64), two M10 Washers (57), two 10mm
Spacers (61), and an M10 Locknut (56).
21. Attach a Pulley (48) inside the Front Leg (7),
above the Low Cable (53), with an M10 x 68mm
Bolt (71), two M10 Washers (57), two 13mm
Spacers (52), and an M10 Locknut (56).
20
8
7
53
61
I
61
57
57
48
64
56
21
56
7
53
52
52
57
57
48
71
Grease
39
54
