ICON PRO-FORM SPORT POWER STACK XT - Page 18

18

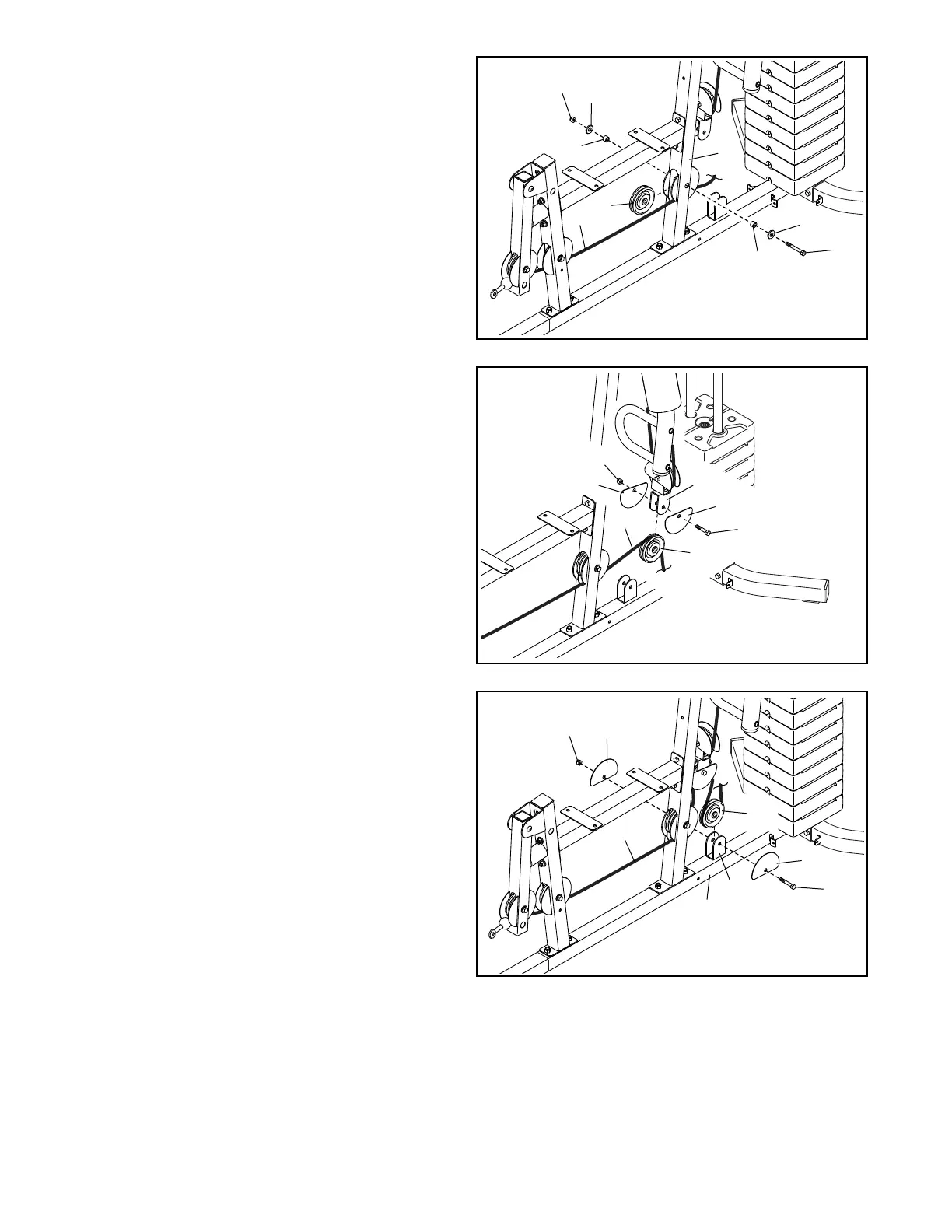

22. Route the Low Cable (53) under a Pulley (48)
and through the Lower Upright (20).
Attach the Pulley (48) inside the Lower Upright
(20) with an M10 x 68mm Bolt (71), two M10
Washers (57), two 13mm Spacers (52), and an
M10 Locknut (56).
23. Route the Low Cable (53) over a Pulley (48).
Attach the Pulley (48) and two Half Guards
(43) to the Double U-bracket (63) with an
M10 x 45mm Bolt (81) and an M10 Locknut (56).
Make sure that the Half Guards are on the
outside of the Double U-bracket as shown.
22
56
20
53
52
52
57
57
48
71
23
53
48
24. Route the Low Cable (53) under a Pulley (48).
Attach the Pulley (48) and two Half Guards (43)
to the Base (1) with an M10 x 45mm Bolt (81)
and an M10 Locknut (56). Make sure that the
Half Guards are on the outside of the bracket
(J) as shown.
24
53
43
1
43
81
56
J
63
43
81
43
56
48
