Tiny Modbus/TCP to RTU/ASCII Gateway
Copyright © 2020 ICP DAS CO., Ltd. All Rights Reserved. - 78 -

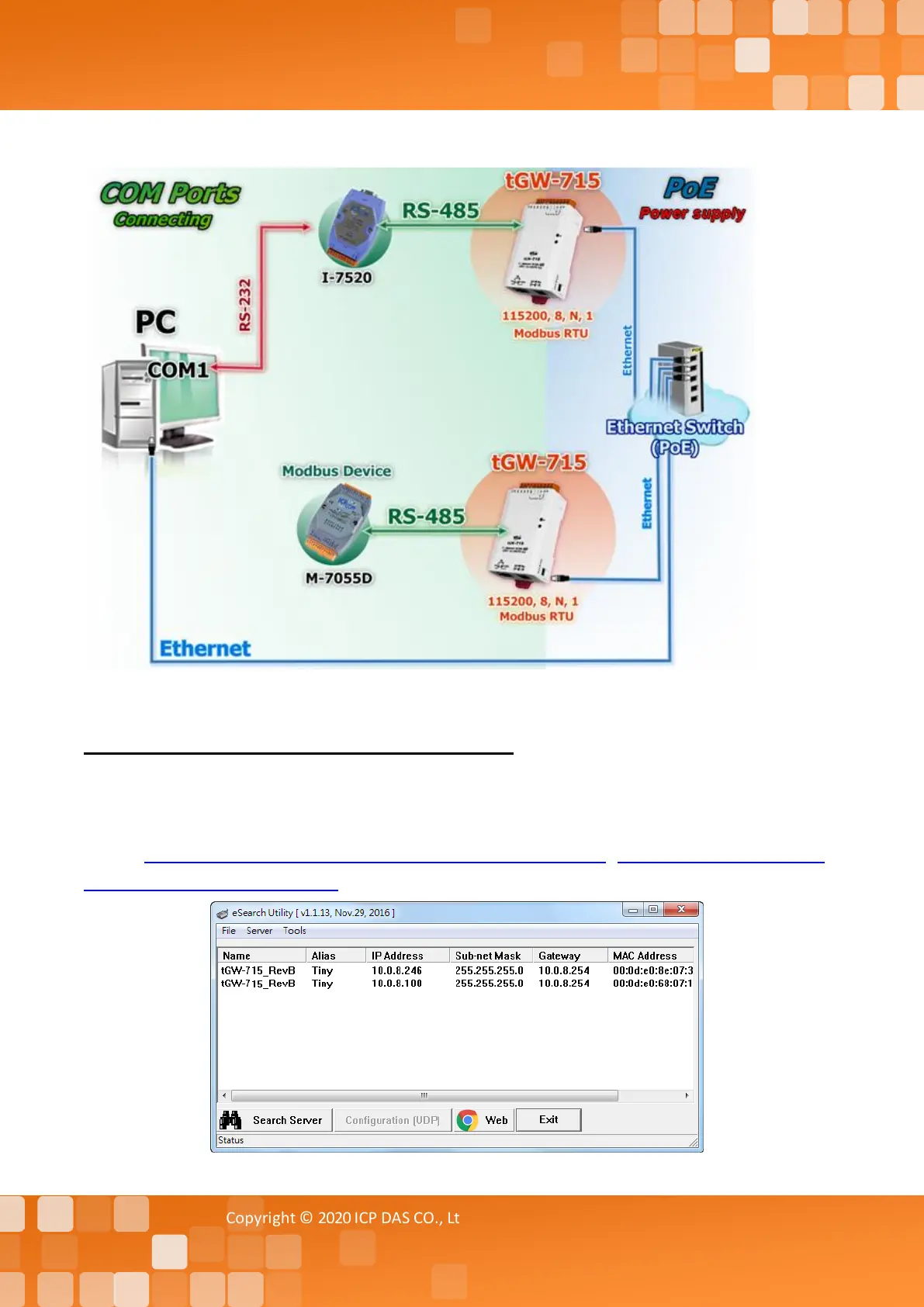

The image below shows an example of the setup for a pair-connection test:
Step 2: Configuring the Ethernet Settings
Contact your Network Administrator to obtain the correct and functioning network configuration
for the tGW-700/GW-2200 modules (including the IP Address, Mask and Gateway details). Also
refer to
Chapter 3 “Getting Started for tGW-700/GW-2200 series using IPv4”
,
Chapter 4 “Getting Started for
tGW-700/GW-2200 series using IPv6”
for more details.
