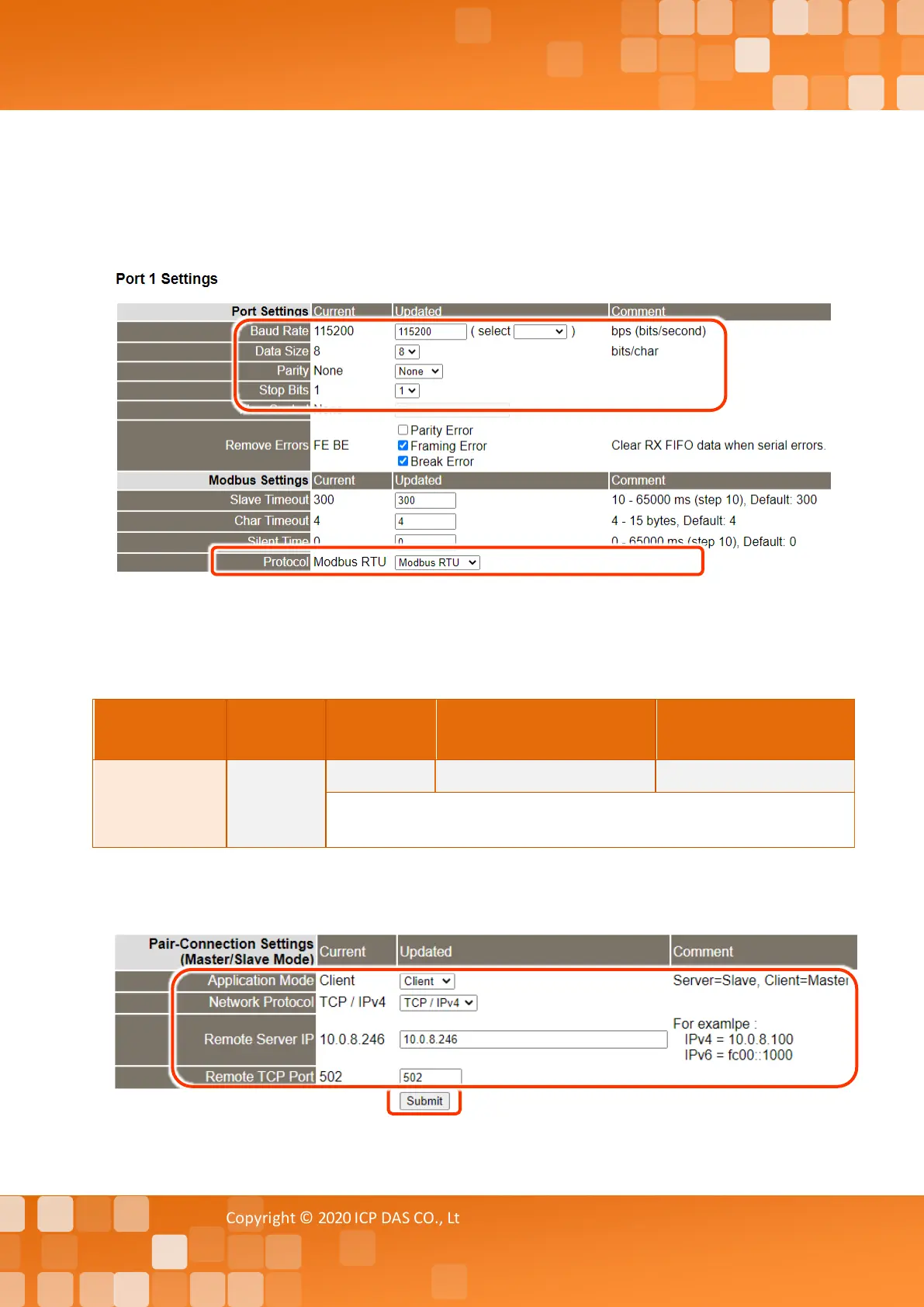

4. Select the appropriate Baud Rate, Data Format and Modbus Protocol settings from the relevant
drop down options. The following is an example: Baud Rate (bps) “115200”, Data Bits (bits) “8”,
Parity “None”, Stop Bits (bits) “1” and Modbus Protocol “Modbus RTU”.
5. In the Pair-connection Settings area for Port1, check that the configuration details are the same
as those shown below.
Modbus Protocol, IP address and TCP port for tGW-700#2
6. Amend and details as required and then click the “Submit” button to complete the
configuration.
