Tiny Modbus/TCP to RTU/ASCII Gateway
Copyright © 2020 ICP DAS CO., Ltd. All Rights Reserved. - 82 -
Step 5: Testing the Pair-connection Functions

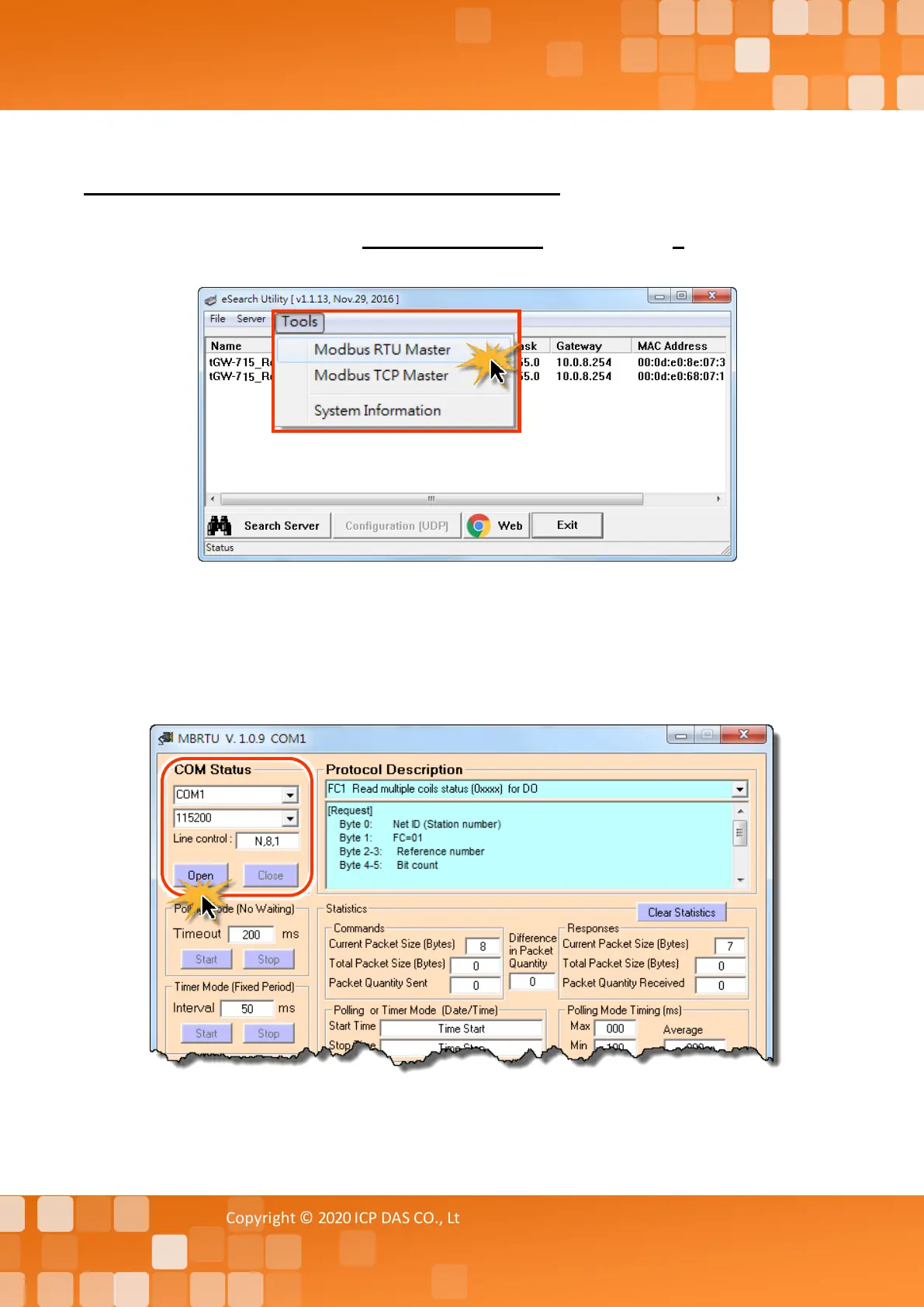

1. In the eSearch Utility, select the “Modbus RTU Master” item from the “Tools” menu to
open the Modbus TCP Master Utility.
2. Select the appropriate COM port, Baud Rate and Data Format (e.g., COM1, 115200, N, 8, 1)
settings for the tGW-700/GW-2200, and then click the “Open” button.
