ICS 633GC - Cylinder & Piston; Cylinder and Piston Removal

34
Copyright © 2005 ICS, Blount Inc.
633GC SHOP MANUAL
13 This section covers the
disassembly, inspection and
assembly of the cylinder, piston
and related components.
Removal of several component
groups is required. Refer to
sections 5, 6, 10, and 12 if
necessary.

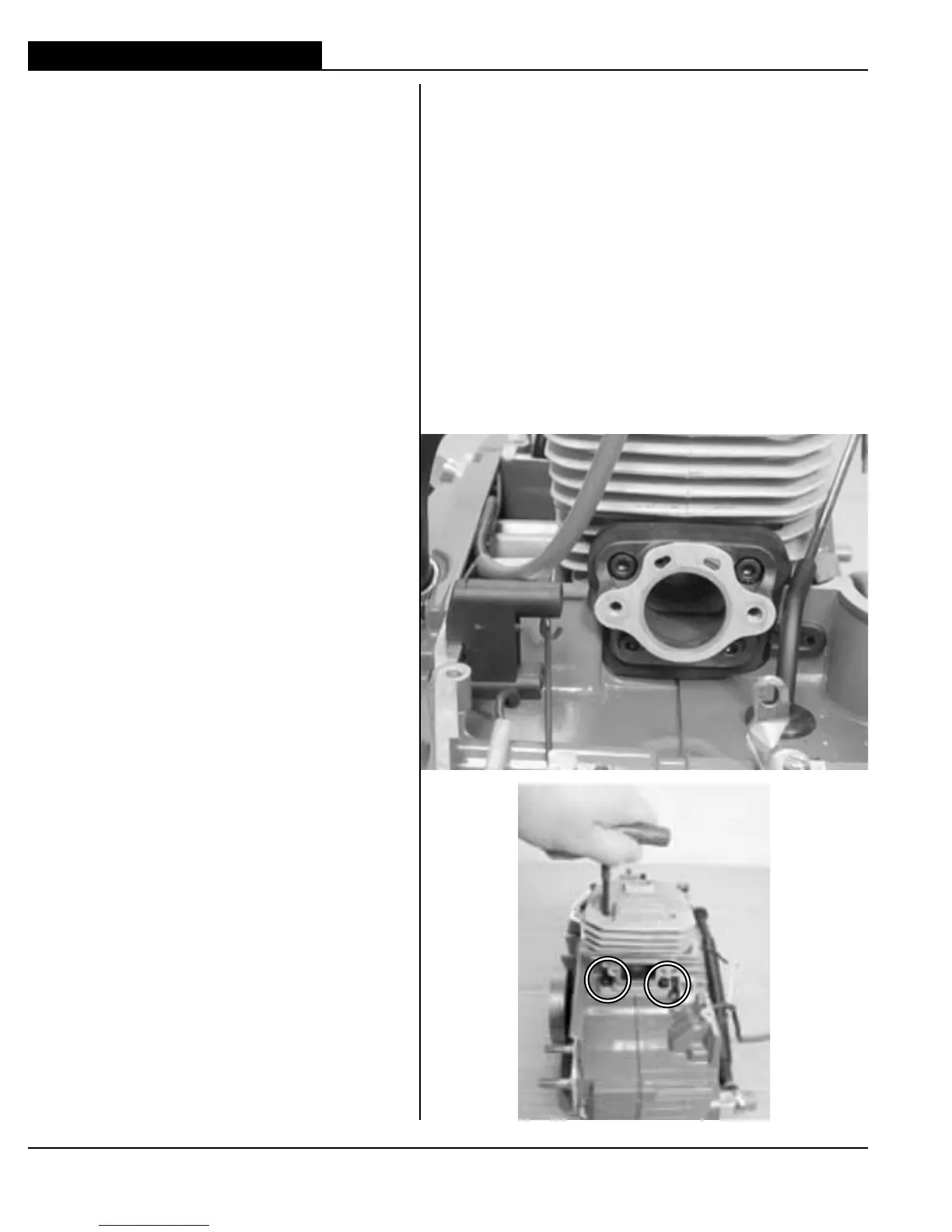

13.1 Remove insulator base screws.
A Remove carburetor insulator from
cylinder.
13.2 Remove cylinder screws (4) and
wave washers.
13. CYLINDER & PISTON
