ICS 633GC - Spare Parts Diagram

633GC SHOP MANUAL
6
Copyright © 2005 ICS, Blount Inc.

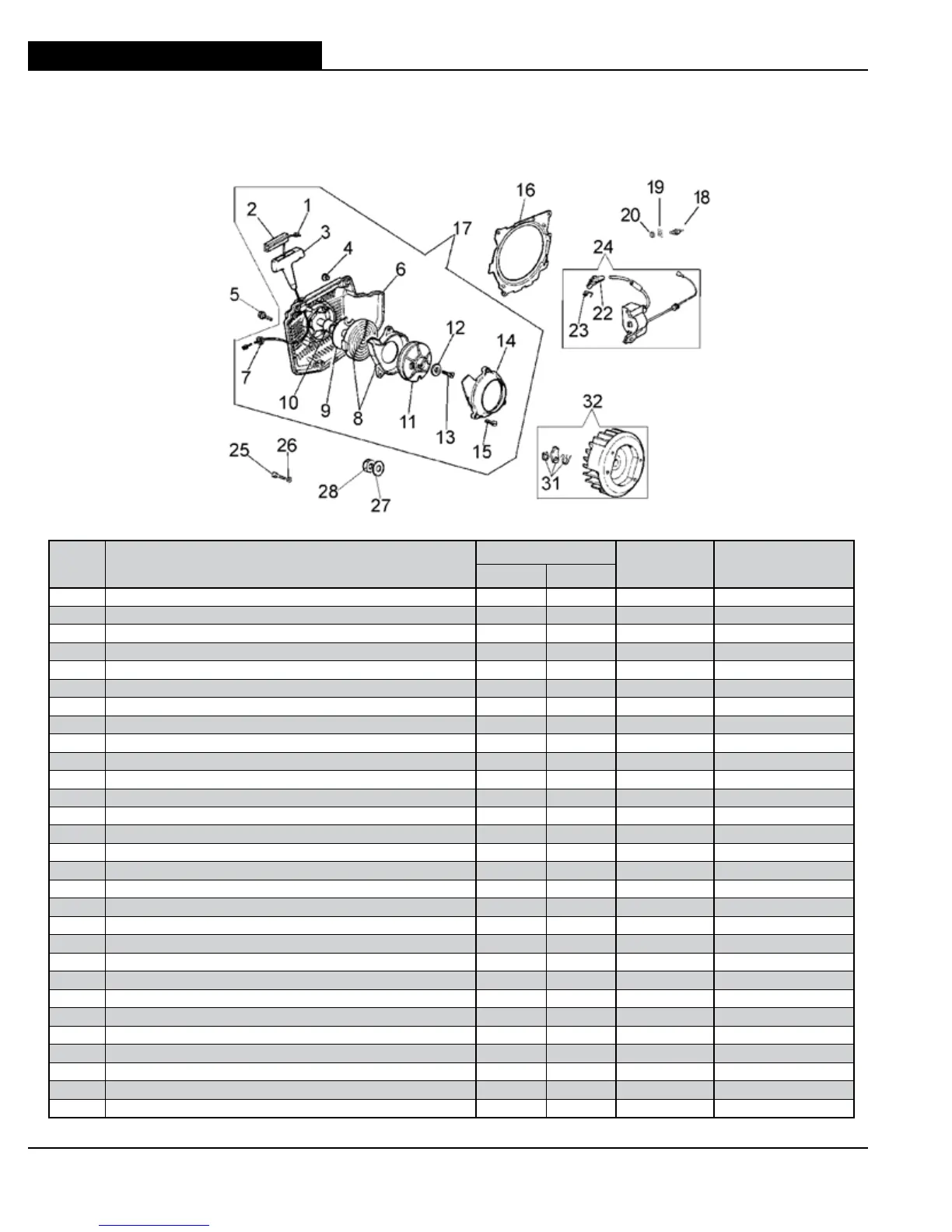

4. SPARE PARTS DIAGRAM
KEY DESCRIPTION
TORQUE LOCTITE
®
PART NUMBER
Nm in‑lbs. 272
1 STARTER ROPE 73188
2 STARTER ROPE RETAINER 73228
3 STARTER ROPE HANDLE 73189
4 STARTER HOUSING OIL CAP 73229
5 SCREW 5 43 X 73230
6 STARTER COVER 73190
7 STARTER ROPE WASHER 73231
8 STARTER COIL SPRING & HOUSING 73191
9 STARTER SPRING COVER 73232
10
STARTER BUSHING 73192
11 STARTER ROPE PULLEY 73193
12
STARTER PULLEY WASHER 73233
13
STARTER PULLEY SCREW 3 26 X 73234
14
STARTER PULLEY COVER 73235
15
STARTER PULLEY COVER SCREW 2 17 X 73236
16
STARTER COVER DUST SHIELD 73194
17
STARTER COVER ASSEMBLY (COMPLETE) 73195
18
IGNITION TOGGLE SWITCH 73237
19
IGNITION TOGGLE PLATE ON/OFF 4 35 73238
20 IGNITION TOGGLE SWITCH NUT 73239
22 SPARK PLUG CAP 73241
23 SPARK PLUG CAP SPRING 73242
24 IGNITION COIL WITH SPARK PLUG LEAD & PRIMARY 6 52 X 73196
25 IGNITION COIL MOUNTING SCREW 73243
26 WASHER 73897
27 FLYWHEEL MOUNTING WASHER 73245
28 FLYWHEEL MOUNTING NUT 73246
31
STARTER PAWL KIT 504386
32 FLYWHEEL ASSEMBLY REPLACEMENT KIT 73433
4 This section covers torque, Loctite
®
, and lubrication requirements of the
individual components. The key numbers used are not related to the key
numbers in the 633GC Replacement Parts Price List.
