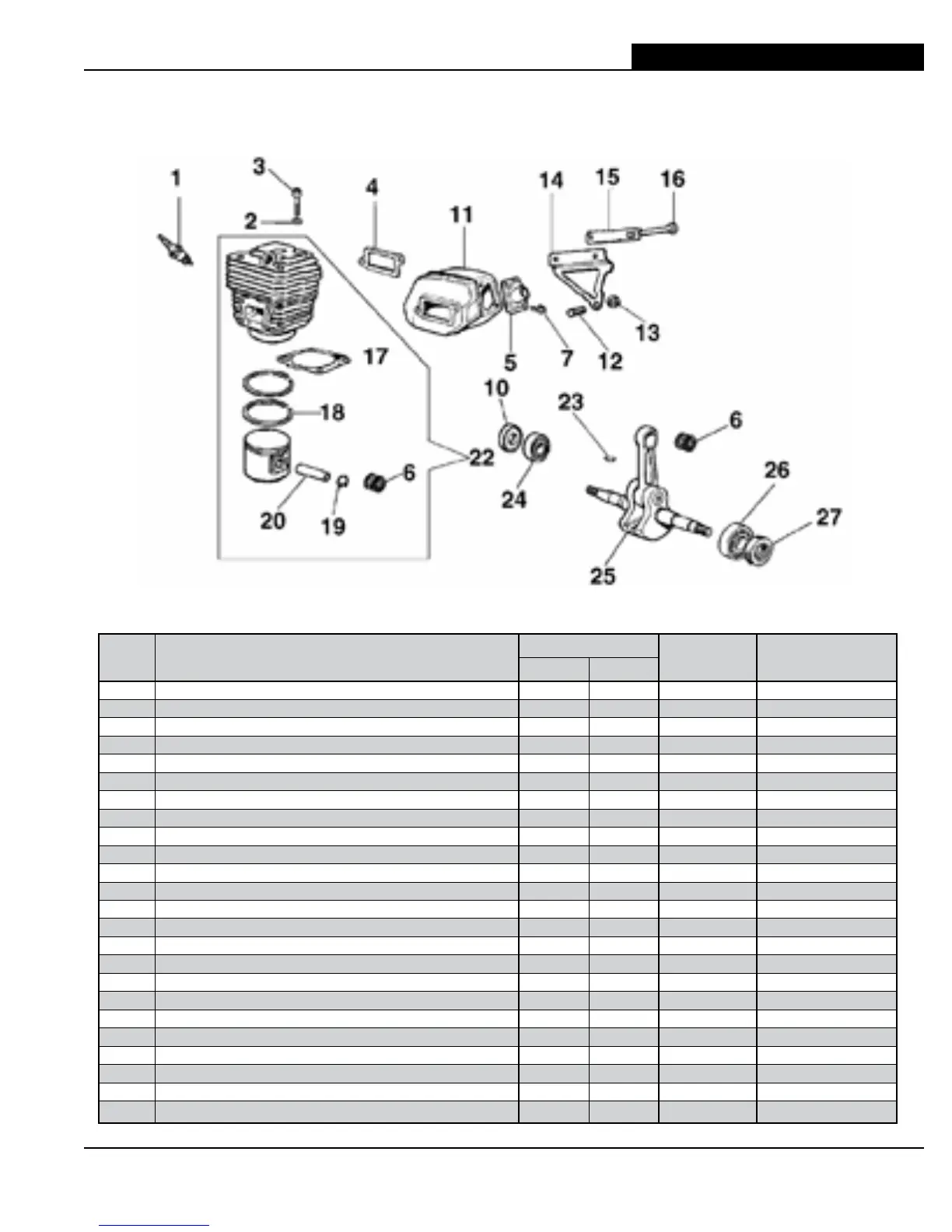

4. SPARE PARTS DIAGRAM
KEY DESCRIPTION
TORQUE LOCTITE
®
PART NUMBER
Nm in‑lbs. 272
1 SPARK PLUG 27 243 73199
2 WASHER 73250
3 CYLINDER BLOCK BOLT 12 104 X 73251
4 CYLINDER TO MUFFLER GASKET 73434
5 EXHAUST PIPE 73253
6 WRIST PIN NEEDLE BEARING 73211
7 EXHAUST PIPE MOUNTING SCREW 4 35 73254
10
CRANKSHAFT SEAL FLYWHEEL SIDE 73201
11 MUFFLER BODY 73203
12
MUFFLER SUPPORT BRACKET SCREW 4 43 X 73255
13
MUFFLER SUPPORT BRACKET NUT 2.25 26 X 73256
14
MUFFLER SUPPORT BRACKET 73204
15
MUFFLER SCREW LOCKING PLATE 73257
16
MUFFLER MOUNTING SCREW 73258
17
CYLINDER BASE GASKET 73436
18
PISTON RING PAIR 73437
19
WRIST PIN SNAP RING 73259
20 PISTON WRIST PIN 73208
22 COMPLETE CYLINDER/PISTON ASSEMBLY 73442
23 CRANKSHAFT FLYWHEEL WOODRUFF KEY 73264
24 CRANKSHAFT BEARING (FLYWHEEL END) 73209
25 CRANKSHAFT ASSEMBLY 73443
26 CRANKSHAFT BEARING (CLUTCH SIDE) 73200
27 CRANKCASE OUTSIDE SEAL-CLUTCH SIDE 73202
