633GC SHOP MANUAL

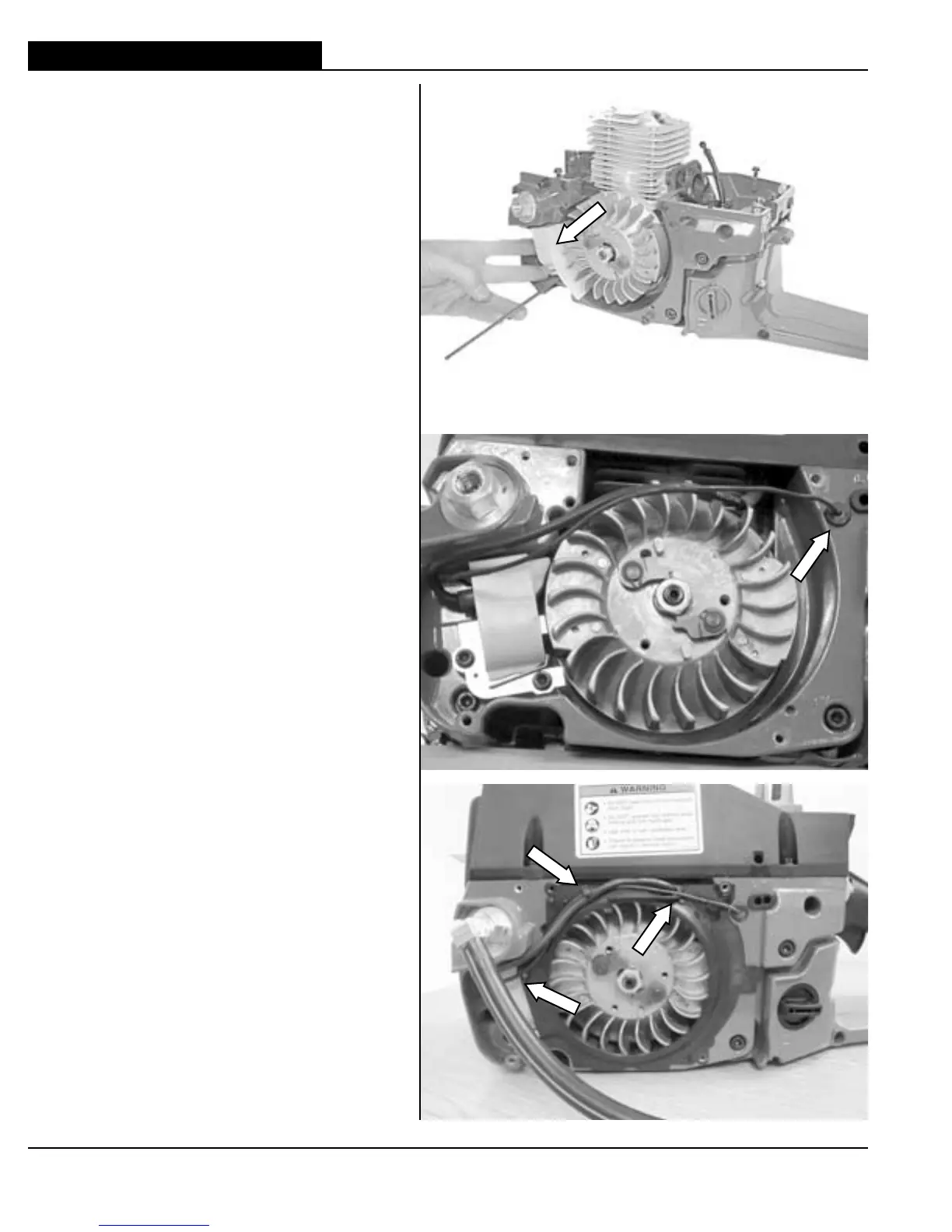

15.6 Install Ignition coil.
A Place ignition coil shim (0.012”)
on magnet counterweight side of
flywheel.
B Set ignition coil in place.
C Install ignition coil screws, wave
washers, and plain washers with blue
Loctite
®
.
D Holding shim, rotate flywheel magnet
around to coil.
E Torque ignition coil screws to
52 in-lbs. (5.9 Nm).
F Remove shim, rotate flywheel to
check clearance.
G Route ignition stop switch wire
through crankcase into carburetor
chamber. Install wire grommet in
crankcase.
15.7 Complete ignition wire routing and
assemble saw in reverse order.
15. IGNITION COIL
