ICT TSL-STD-RR-HL - RS-485 Reader Connection

RS-485 Reader Connection

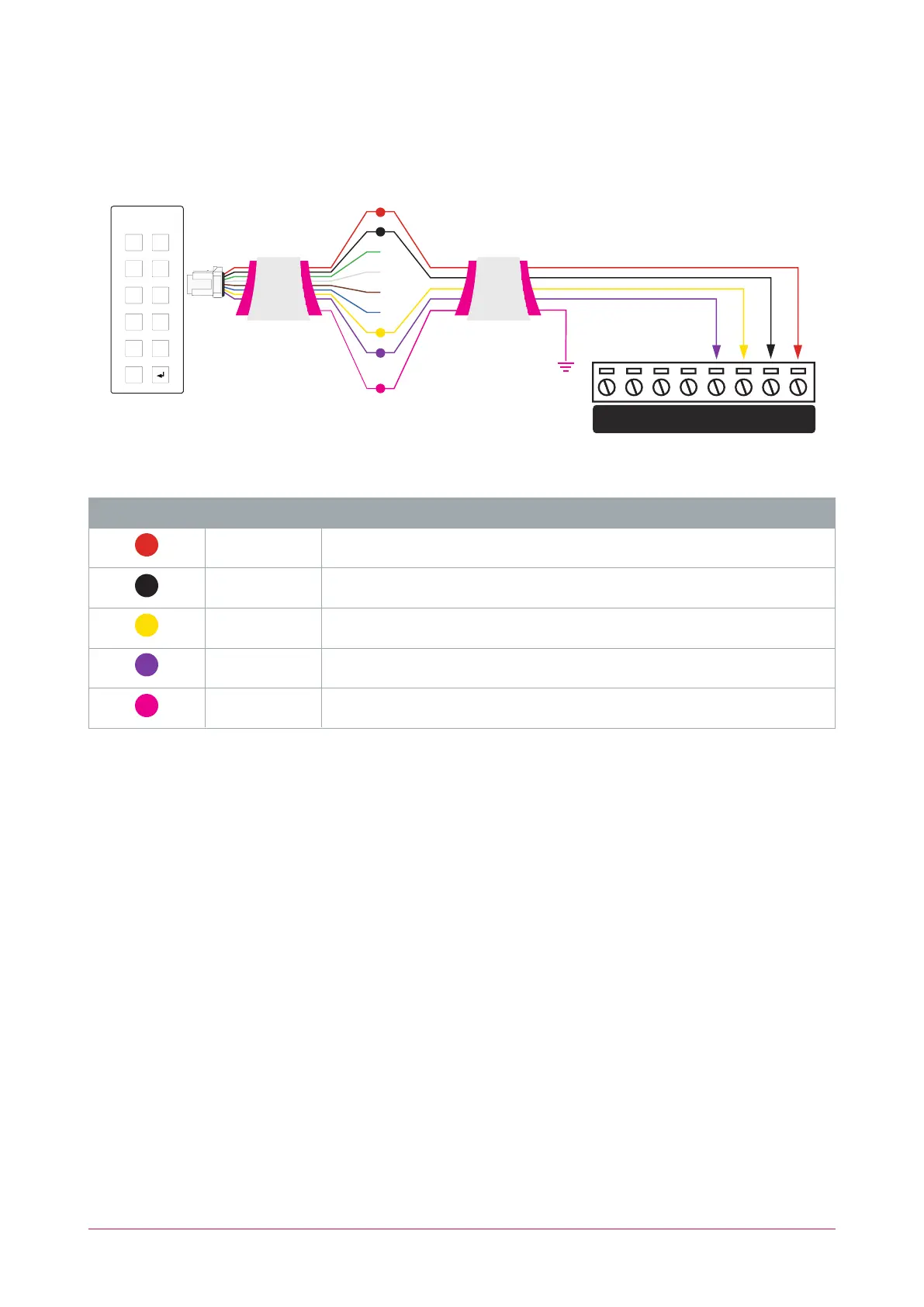

The connection of a single RS-485 reader to a reader expander.
1 2
3 4
5 6
7 8
9 0
X
L1L2
BZ
C
D0/D1/
NANB
V+
V-
Reader Connections
Color Wire Connection
Red V+ 12VDC positive
Black V- 12VDC negative
Yellow D0/NA RS-485 A
Violet D1/NB RS-485 B
Shield Shield (drain) wire. Frame grounded at one point only
TSL Multi-Technology Card Reader | Installation Manual 22
