ICT TSL-STD-RR-HL - Wiegand Reader Connection

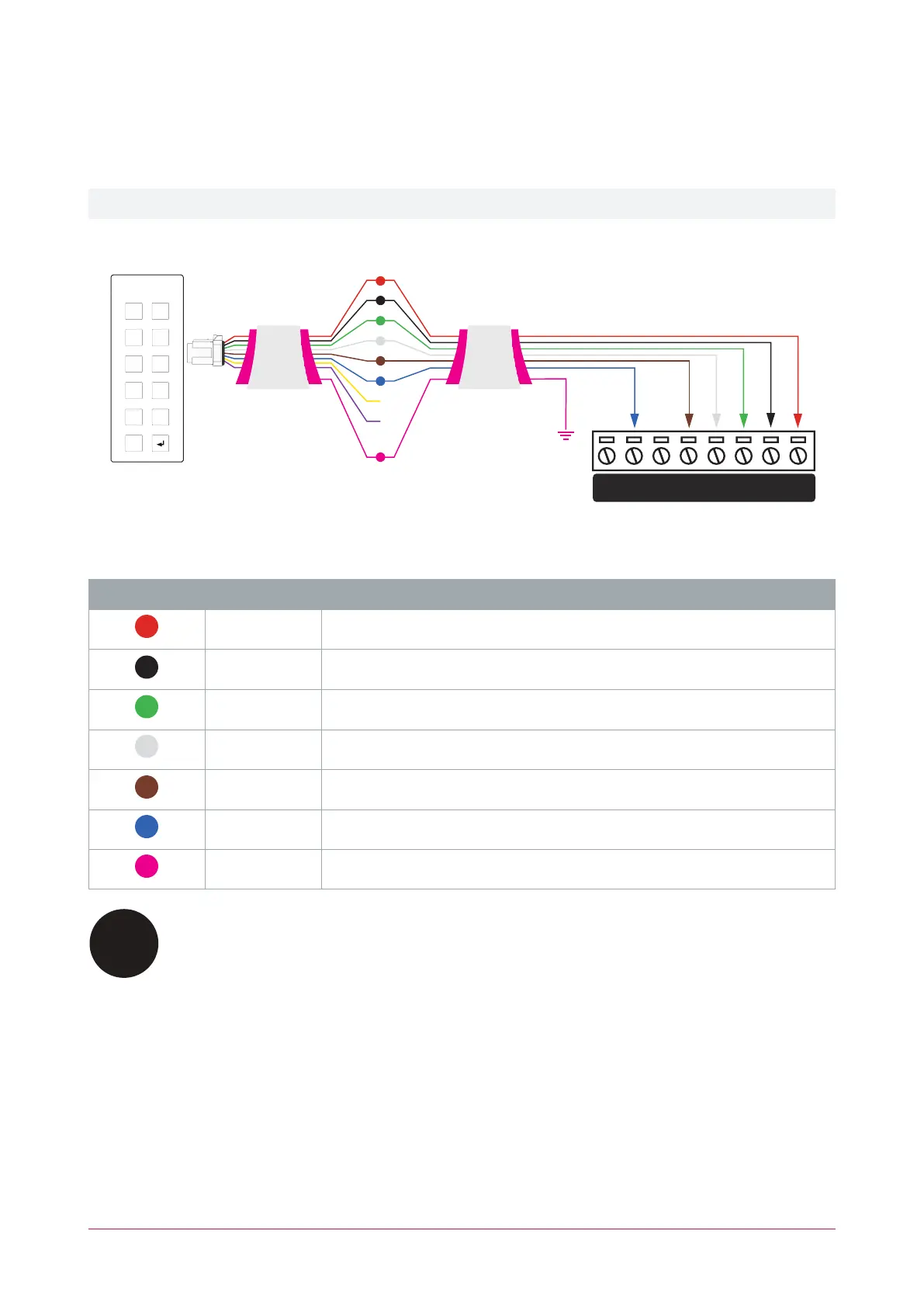

Wiegand Reader Connection
When connected using the Wiegand interface, TSL readers operate in single LED mode, which allows a single LED
line to control the two reader LED colors.
TSL readers do not support dual LEDoperation for Wiegand interfaces.
1 2
3 4
5 6
7 8
9 0
X
L1L2
BZ
C
D0/D1/
NANB
V+
V-
Reader Connections
Color Wire Connection
Red V+ 12VDC positive
Black V- 12VDC negative
Green D0/NA Wiegand Data 0
White D1/NB Wiegand Data 1
Brown L1 LEDcontrol
Blue BZ beeper control
Shield Shield (drain) wire. Frame grounded at one point only
P
UL
ULC
Compatible access control card reader communication formats are: 26-, 34-, and 37-bit Wiegand.
