Technical Diagrams
TSL Standard Reader

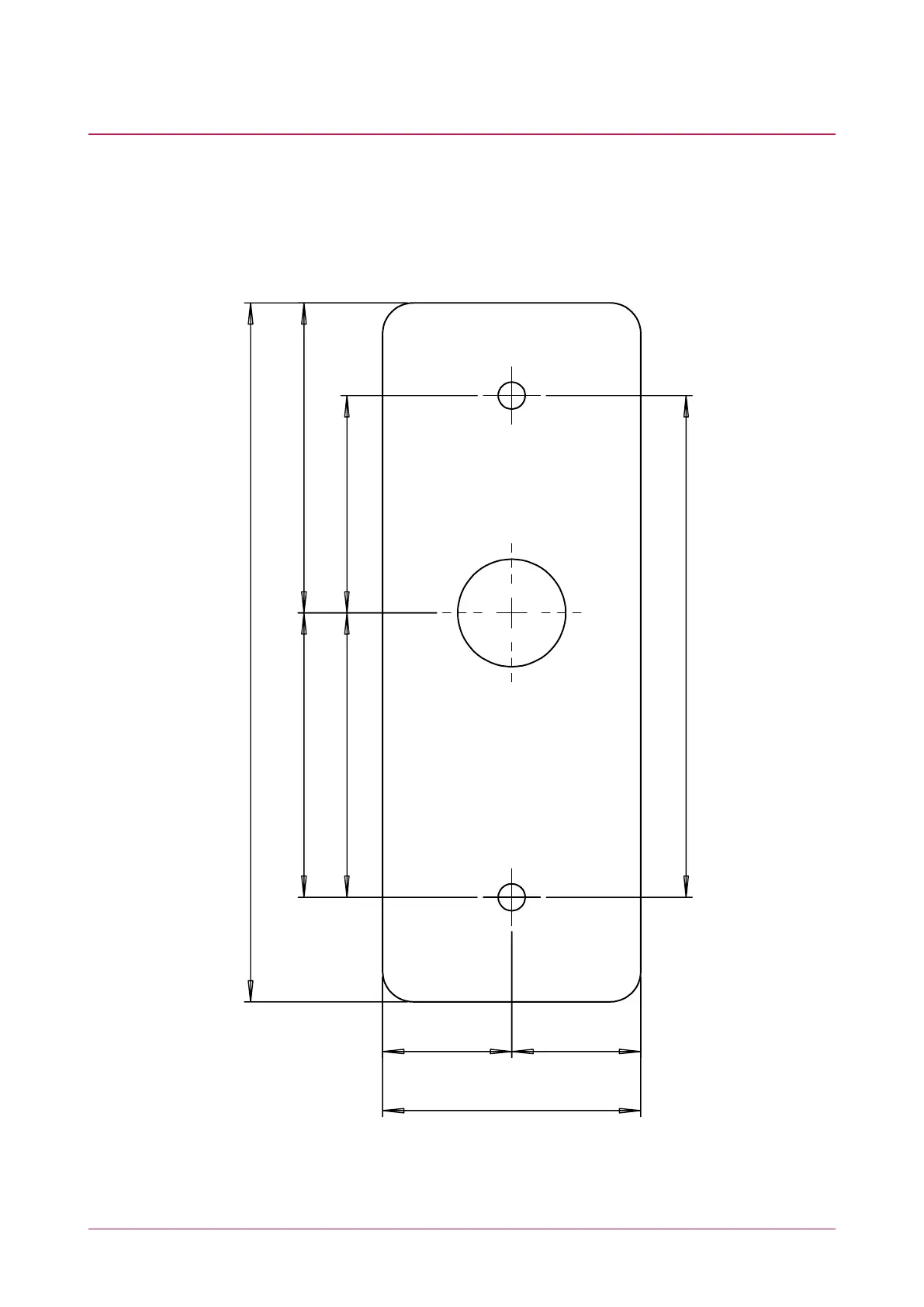

The dimensions shown below outline the essential details needed to help ensure the correct installation of the ICT
TSL Standard Reader. All measurements are shown in millimeters.
117.0
36.4 47.6
21.5 21.5
43.0
84.0
51.9 47.6
ø 4.5mm Screw Hole
ø 4.5mm Screw Hole
ø 18mm
Connector Hole (Min)
TSL Multi-Technology Card Reader | Installation Manual 31
