ADS-HRR(SR)-MFT1-DS-IG-EN maestro.idatalink.com
FORD EDGE WITH MYFORD TOUCH 20112013
Automotive Data Solutions Inc. © 2023
3
Fig. 1.3 Fig. 1.4
Fig. 1.1 Fig. 1.2

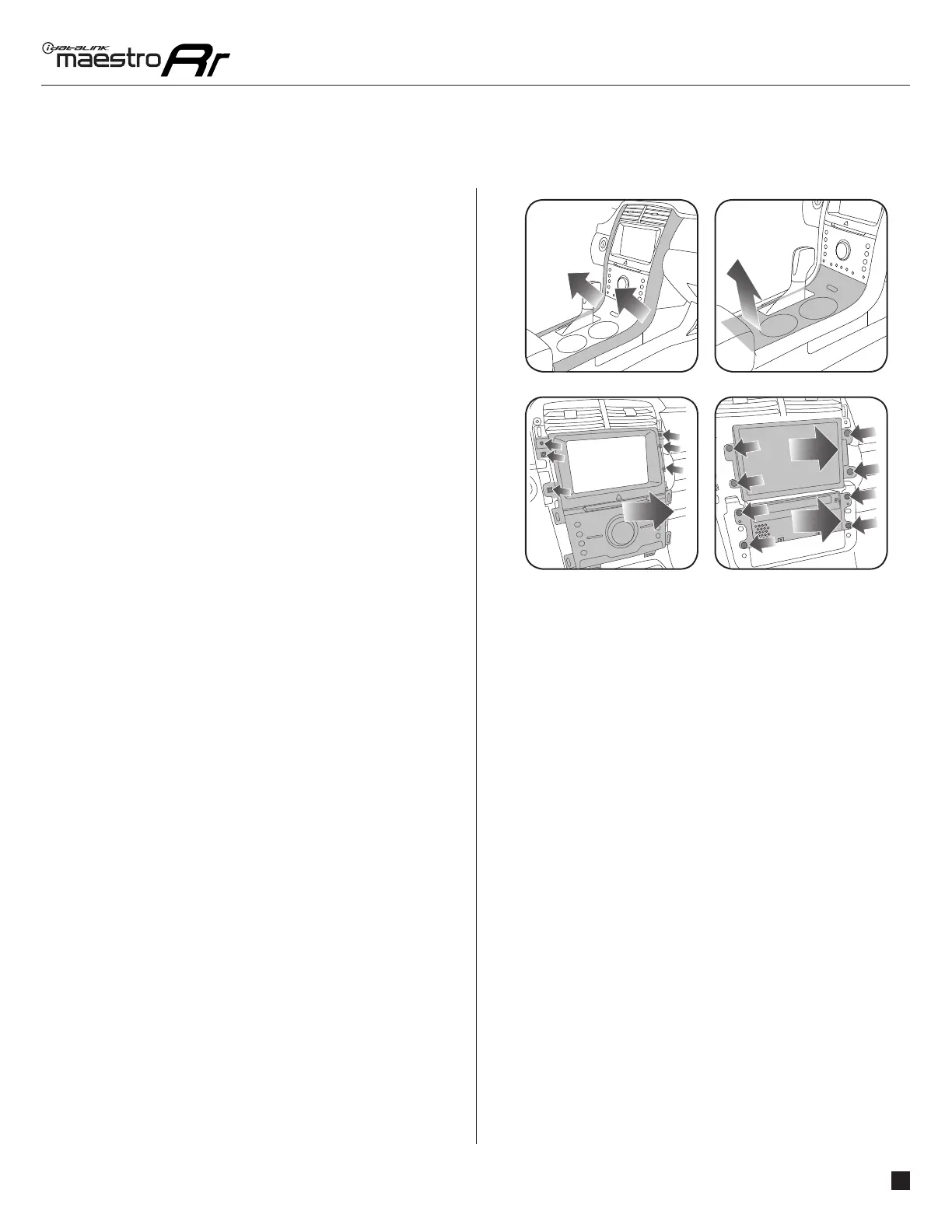

DASH DISASSEMBLY
1. Unclip and remove the two (2) trim panels at the left and
right of the OEM radio. (Fig. 1.1)
2. Remove four (4) screw holding the shifter trim panel.
Unclip and remove the shifter trim panel. (Fig. 1.2)
3. Remove six (6) 7mm screws holding the radio and climate
control panel. (Fig. 1.3)
4. Use a panel removal tool to unclip and release the radio
and climate panel from the dash. (Fig. 1.3)
5. Remove four (4) 7mm screws holding the radio body.
Unplug and remove the OEM radio. (Fig. 1.3)
6. Remove four (4) 7mm screws holding the screen. Unplug
and remove the OEM screen. (Fig. 1.4 )
Keep screws and brackets for MFT1 dash kit assembly.
Unbox MFT1 dash kit and locate bracket set #1, discard
set #2.
1
INSTALLATION INSTRUCTIONS P1 /2
To Next Page
