iDataLink Maestro RR2 Install Guide

ADS-HRR(SR)-MFT1-DS-IG-EN maestro.idatalink.com
FORD EDGE WITH MYFORD TOUCH 20112013
Automotive Data Solutions Inc. © 2023
5
1
BACKUP CAMBACKUP CAM
AMP TURNONAMP TURNON
NC
NC
NC
MICMIC
3
4 3
4
3
10
18
18
26
43
24
24
54
B
E
A
D
20
4
4
4
4
2
3
2
C
32
F
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+) *
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
PINK - VEHICLE SPEED
WIRES FROM
VEHICLE
MAIN HARNESS
CONNECT TO
AFTERMARKET RADIO
HARNESS BEHIND RADIO
FACTORY RADIO HARNESS
RR-MFT1 T-HARNESS

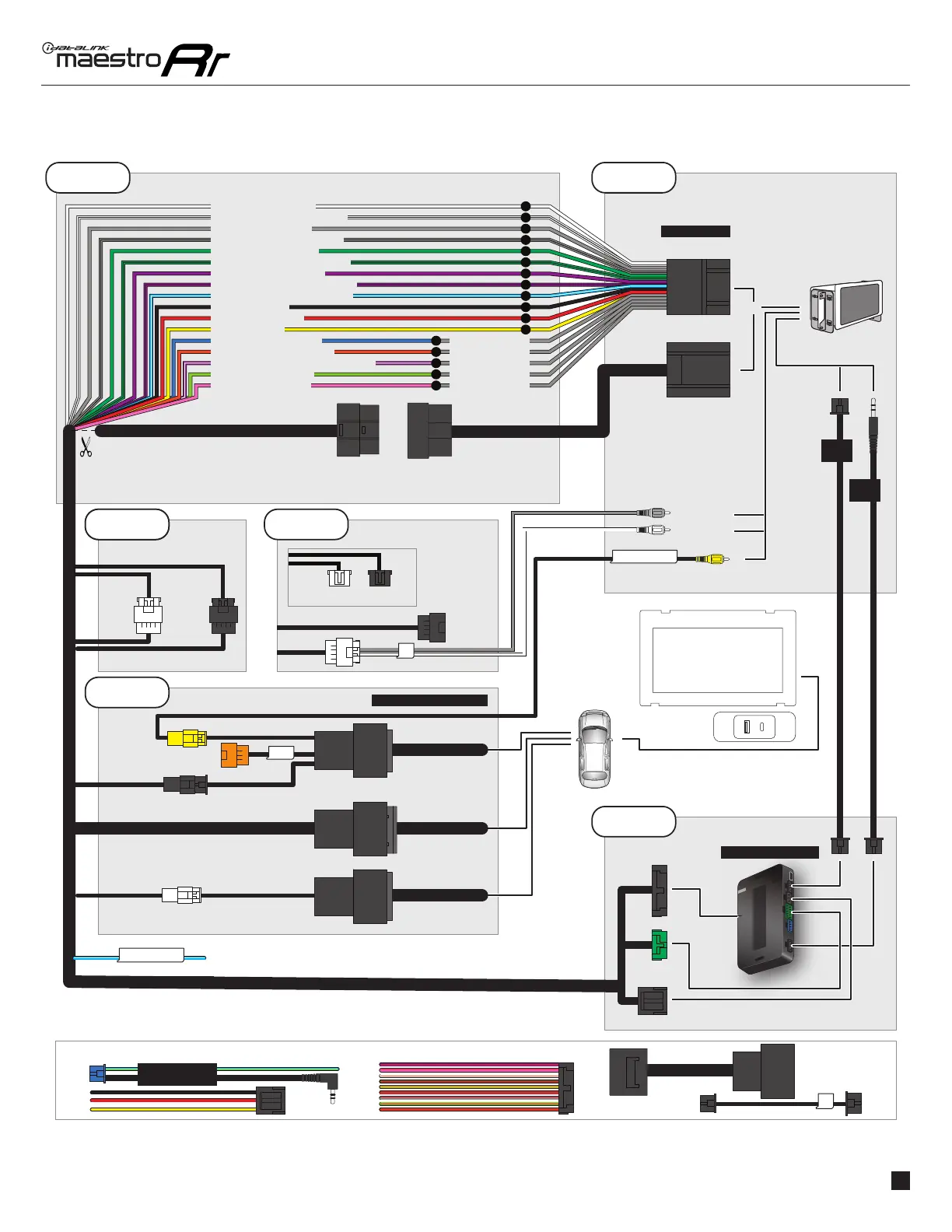

WIRING DIAGRAM
STEP 2
STEP 3
STEP 5
STEP 4
STEP 1
SEE RADIO
WIRE REFERENCE
CHART FOR
RADIO WIRE
COLORS
MAESTRO RR MODULE
DATA
CABLE
BLUE - POWER ANTENNABLUE - POWER ANTENNA
STEERING WHEEL
CONTROL CABLE
PIONEER RADIO: ENSURE
THAT NOTHING IS PLUGGED
IN W/R PORT.
AUDIO
CABLE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
PURPLE - RR SPEAKER (+)
* ONLY CONNECT TO RADIO REVERSE INPUT
OR MODULE DAMAGE WILL OCCUR
NOT REQUIRED
OR
HEAD UNIT ADAPTER
SOLD SEPARATELY
IF WIRES ARE PRESENT ON
ADAPTER: SEE RADIO
REFERENCE CHART
IF NOT USING A MAESTRO HEAD UNIT ADAPTER:
CUT AND DISCARD CONNECTOR
STEP 2 STEP 2
OR
WITHOUT OEM
AMPLIFIER
WITH OEM AMPLIFIER
UNPLUG
WHITE BLACK
WHITE
BLACK
LF OUT
CONNECT IF EQUIPPED *BRANCHER SI PRÉSENT*
RF OUT
*
IF PRESENT
