EVOMAX - MULTILINE FLUE KITS

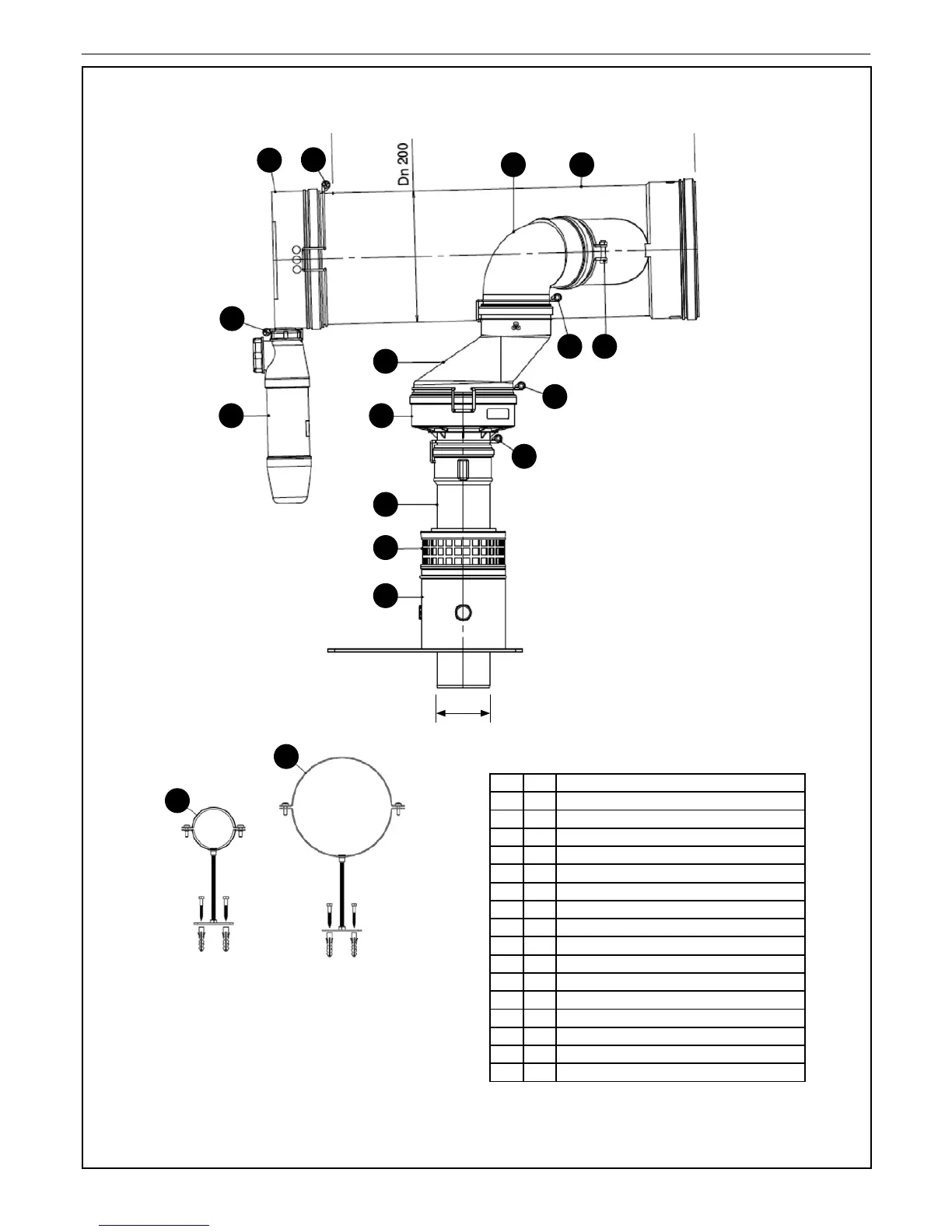

STARTER KIT COMPONENTS FOR 30-80 MODELS [UIN 210264]
1
2
3
5
49
14
8
13
6 7
10
11
12 12
15
16
POS. QTY. DESCRIPTION
1 1 ADAPTER CONCENTRIC PP 80/125 + MP
2 1 AIR INLET GRILL AL 125-80 H=85
3 1 EXTENSION PP 80x500
4 1 VALVE PP 80-150
5 1 REDUCER EXC. PP 150-100
6 1 ELBOW SHORT PP 100 90°
7 1 COLLECTOR PP 200x610 1x100 45°
8 1 COVER PP 200 + CONDENSATE
9 1 SYPHON PP H=150
10 1 LOCKING CLIP 80
11 1 LOCKING CLIP 150
12 2 LOCKING CLIP 100
13 1 LOCKING CLIP 200
14 1 LOCKING CLIP 32
15 1 WALL BRACKET 80 RAL-9016
16 2 WALL BRACKET AL 200 + WALL PLATE
Dn 80
