OPEN FLUE OPTIONS (B TYPE)

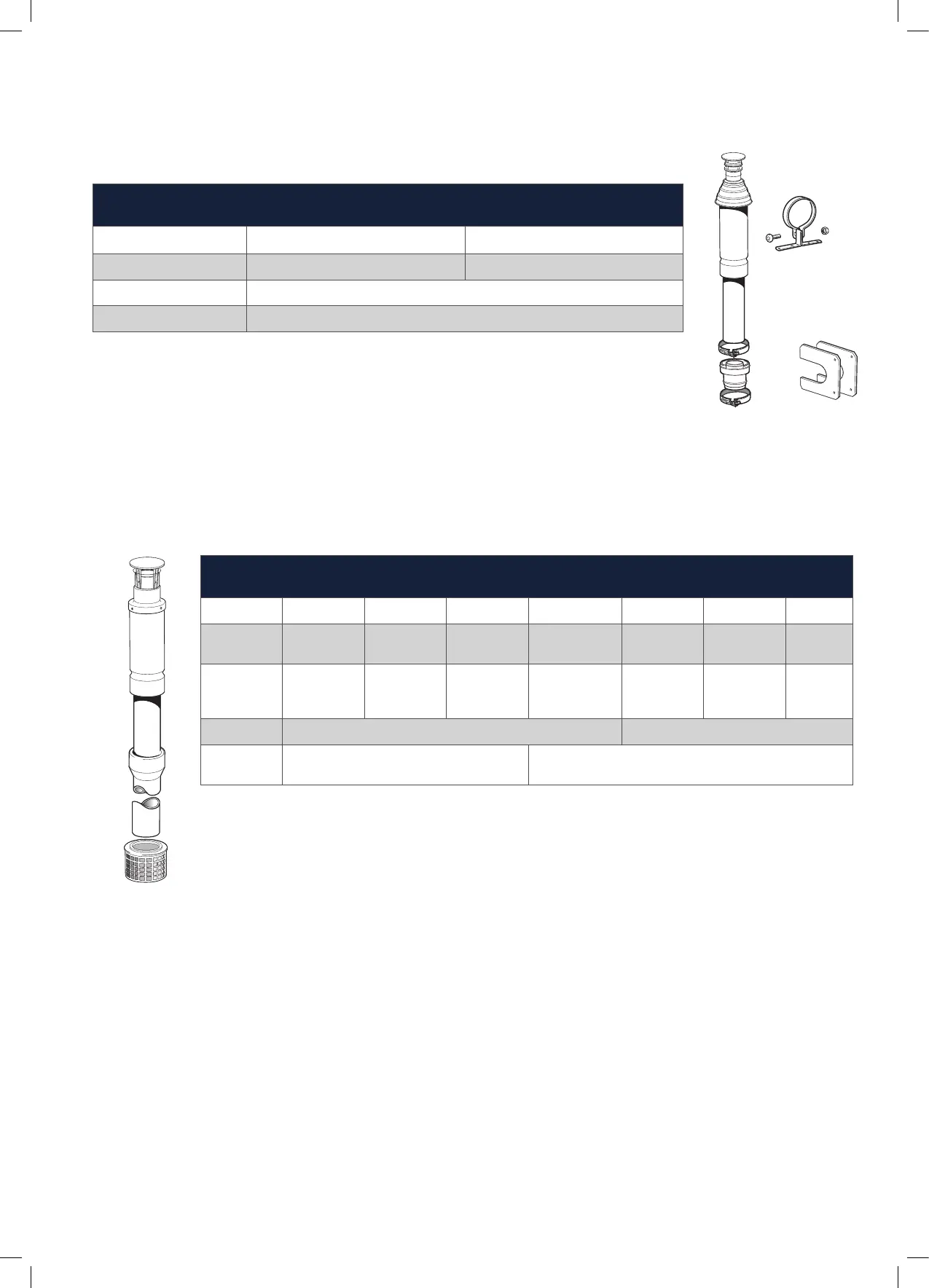

EVOMAX 2 60 & 80 VERTICAL CONCENTRIC FLUES OF
LONGER LENGTH
Model
60/60P 80/80P
Max flue length (m) 28 18
Flue Size 100/150
Wall flue kit No 220916
CONTENTS
• Increaser
• Terminal
• Locking Collars (x2)
• Finishing plates (x2)
• Bracket
CONTENTS
221216 / 221218
• Air inlet grille*
158769 / 158770
• Terminal
158771 / 158772
• Extension tube (x2)**
* The air inlet grille must be fitted to all installations.
** At least 1 o extension tube MUST be used in the installation. This may be suitably cut to length if required.
EVOMAX 2 VERTICAL CONCENTRIC FLUE APPLICATION ~ MAXIMUM LENGTHS AND
PRESSURE DIFFERENTIALS
Model 30/30P 40/40P 60/60P 80/80P 100/100P 120/120P 150
Max flue
length (m)
65 70 25 15.3 20 49 32
Max flue
press di
(Pa)
180 227 146 312 220 473 332
Flue Size
80/125 100/150
Wall flue
kit No
221216 + 158771 + 158769 221218 + 158772 + 158770
