IDEAL EVOMAX 2 150

7

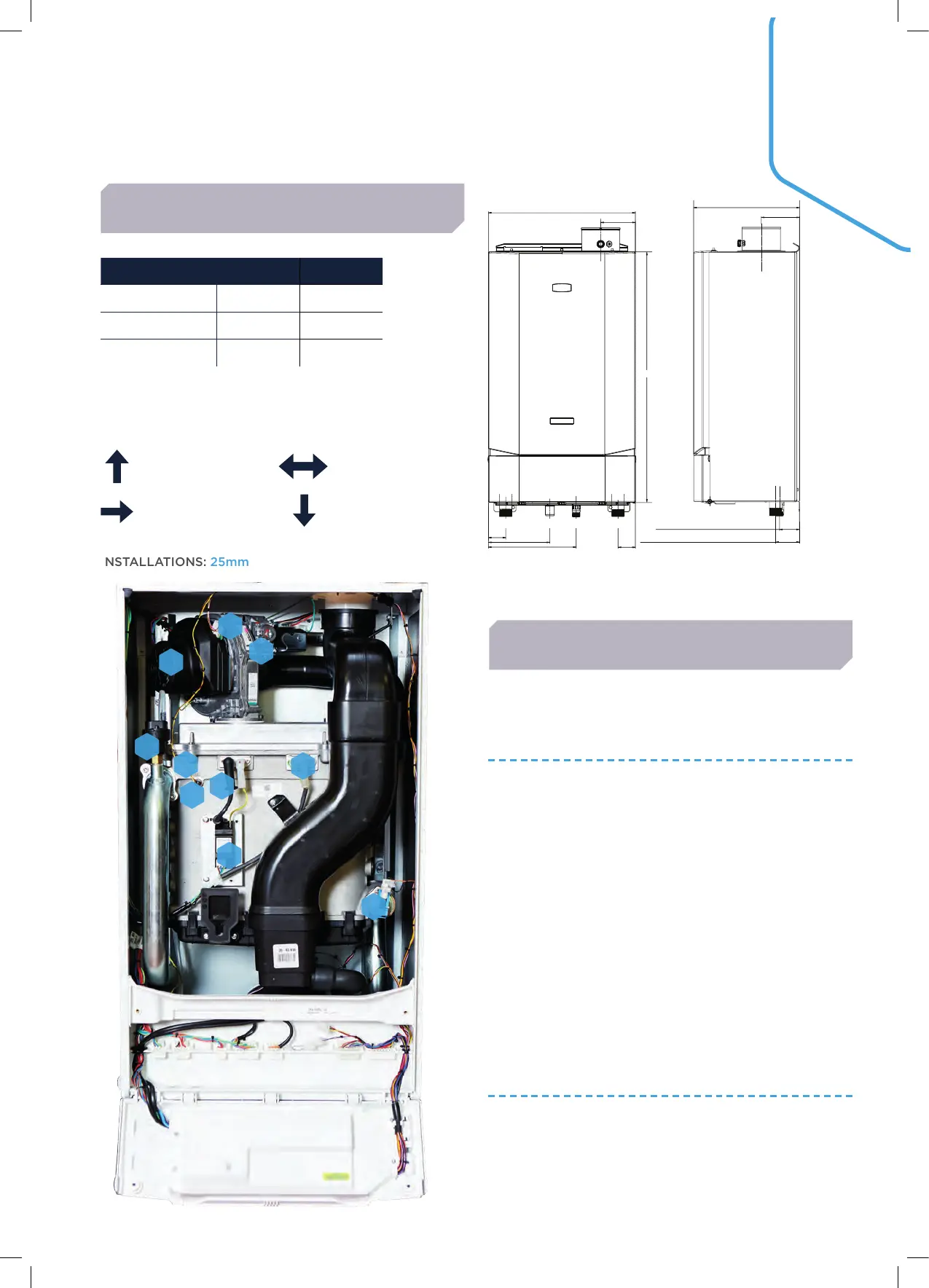

DIMENSIONS & CLEARANCES
BOILER ASSEMBLY
BOILER DIM A DIM B
30, 40, 60, 80 360 130
100, 120 520 226
150 610 233
The following minimum clearances must be
maintained for operation and servicing:
TOP: DEPENDENT
ON FLUE SIZE
SIDES: 25mm
FRONT: 450mm BOTTOM: 300mm
CLEARANCE BETWEEN MULTIPLE BOILER
INSTALLATIONS: 25mm
KEY
1. Auto Air Vent
2. Burner Fixings
3. Fan
4. Gas Valve
5. Venturi
6. Flow Thermistor
7. Ignitor Unit
8. Electrode Detection
9. Ignition Electrode
10. Water Pressure Sensor
INTERNAL VIEW
(80kW MODEL SHOWN)
All dimensions in mm
FLOW &RETURN CONNECTIONS
81
GAS & CONDENSE OUTLETS
68
B
A
500
59
59
209
299
118
850
RETURN
GAS
CONDENSE
FLOW
1
3
4
5
7
6
8
9
10
2
