EVOMAX -
Installation & Servicing
INSTALLATION
FLUE OUTLET

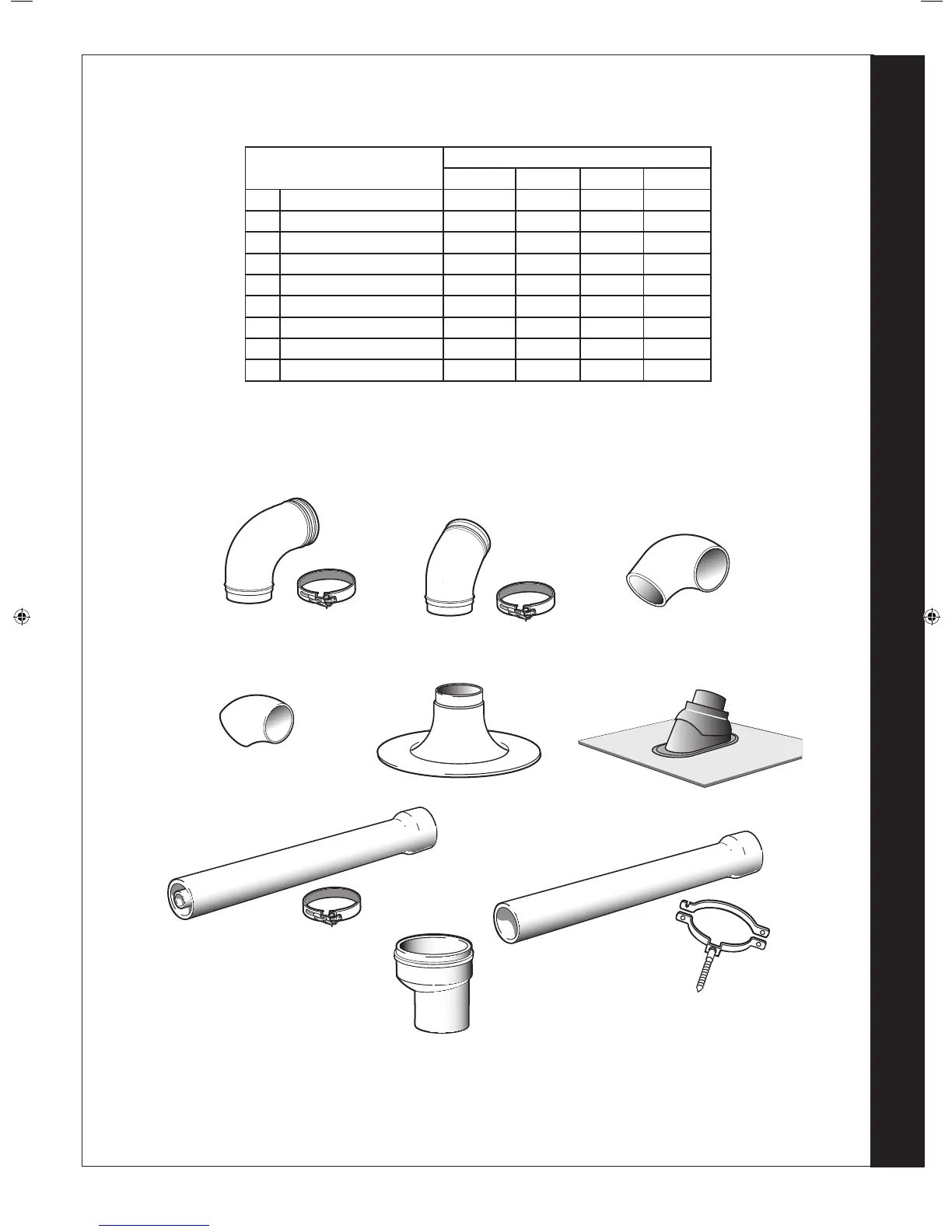

17 FLUE KIT ACCESSORIES
Accessory Part No.
  80 100
1. 90
o
elbow (concentric) 152616 152617 n/a n/a
2. 45
o
elbow (concentric) 152618 152619 n/a n/a
3. 90
o
elbow n/a n/a 158773 158774
4. 45
o
elbow (pair) n/a n/a 158775 158776
5. Flat Weather Collar 152611 152612 158780 158780
6. Pitched Weather Collar 152609 152610 158779 158779
7. 1m Extension (concentric) 152400 152401 n/a n/a
8. 1m Extension (pair) n/a n/a 158771 158772
9 Increaser 80-100 n/a n/a 152404 n/a
206210-5757
1
2
5
3
4
6
7
8
9
