17
EVOMAX -
Installation & Servicing
INSTALLATION
FLUE OUTLET
206210-5358b
20
The total maximum ue resistance for an Evomax 80 is 260 Pa or 12m
80/125. Therefore this installation is acceptable.

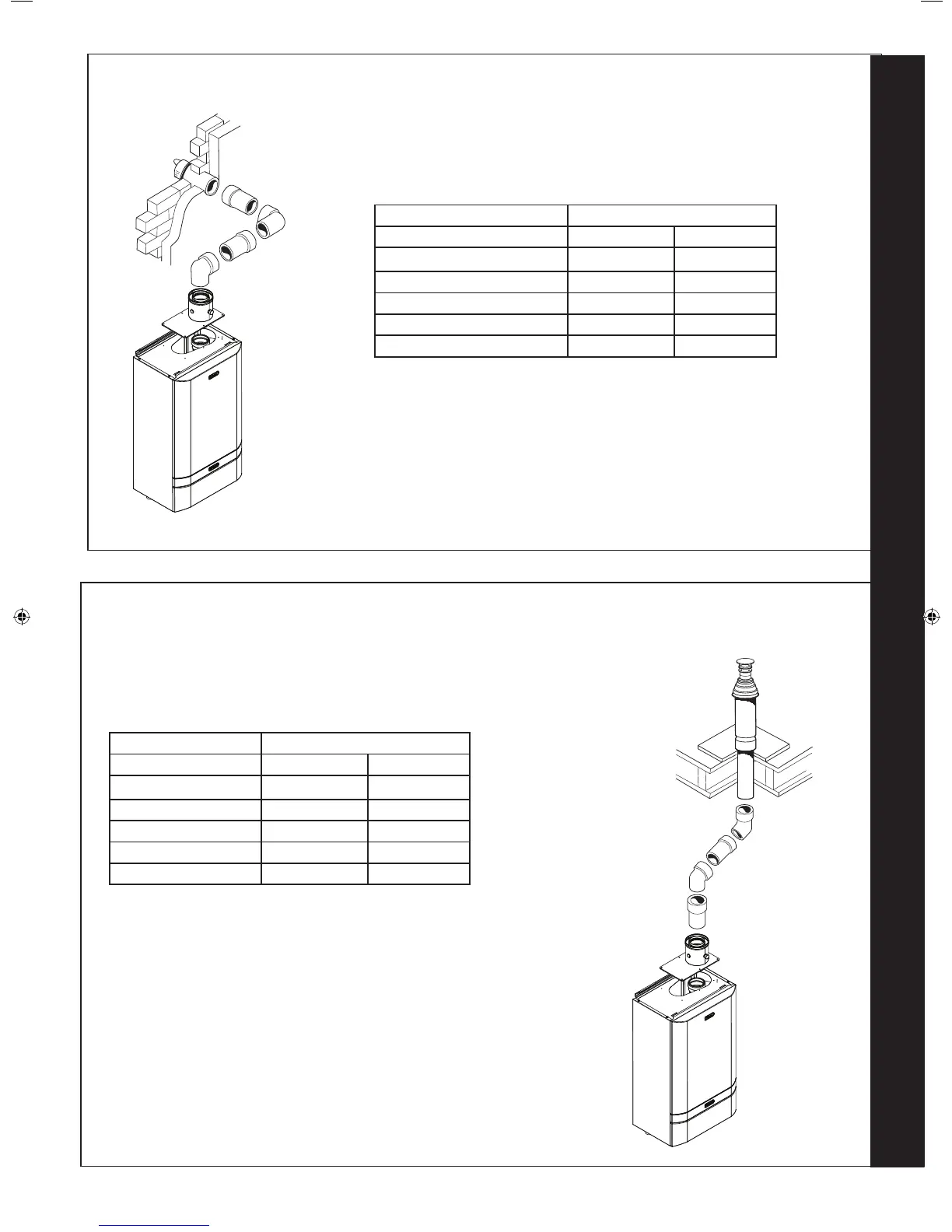

Example 2
Vertical Roof Flue for Evomax 80
Resistance (Pa) Resistance (m)
Flue Size 80/125 80/125
Vertical Flue Kit 80/125 135 4.8
2 x 1m extension ue 2 x (21.7) 2 x (1)
2 x 45º elbow 2 x (22) 2 x (1.1)
Total Flue Resistance 222 9
Horizontal Flue for Evomax 40
Resistance (Pa) Resistance (m)
Flue Size 80/125 80/125
Horizontal Wall Flue Kit 80/125 45 7
2 x 1m extension ue 2 x (4.8) 2 x (1)
1 x 90º elbow 14 1.6
Total Flue Resistance 68.6 10.6
19
206210-5357b
The total maximum ue resistance for an Evomax 40 is 200Pa or 42m
80/125. Therefore this installation is acceptable.
Example 1
206210-3.indd 17 09/06/2011 13:34:21
