icos - Installation & Servicing
INSTALLATION
25
CONDENSATE PIPE TERMINATION CONFIGURATIONS . . . continued
cla9253
BOILER
Air Break

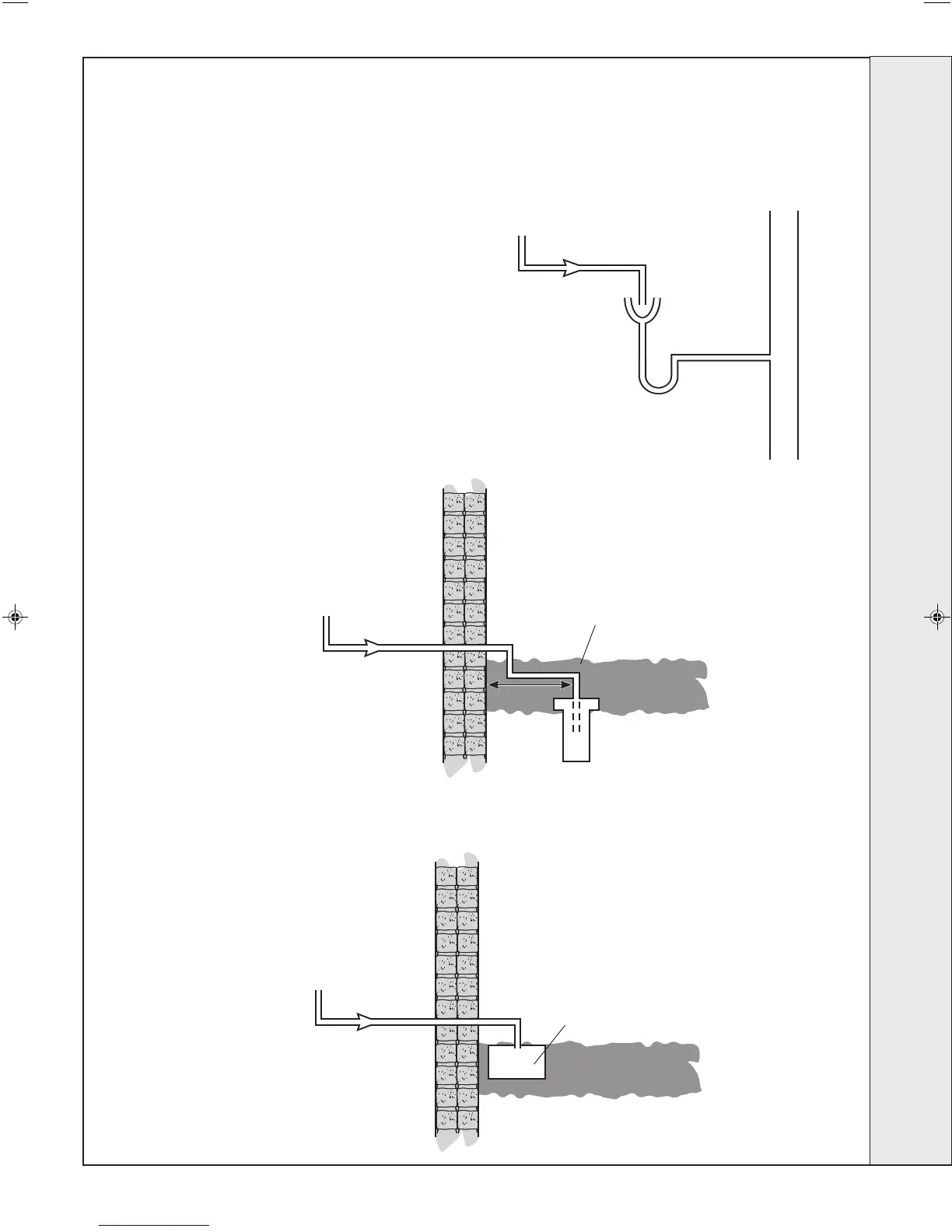

3. INTERNAL CONNECTION TO SOIL AND VENT STACK
* Make connection to SVP using a solvent welded saddle
BOILER
External
wall
Ground Level
Termination
to Soak away
cla7774
minimum
500mm
BOILER
External
wall
Ground Level
Open end of pipe
direct into gulley
below grating but
above water level
DRAIN
cla7775
4. TERMINATION TO SOAK AWAY
5. TERMINATION TO DRAIN / GULLEY
Termination into a down pipe can take place providing it can be confirmed that
the down pipe is part of a combined waste and rain water system.
INSTALLATION
