IDEAL icos HE12 User Manual

26
icos - Installation & Servicing
INSTALLATION

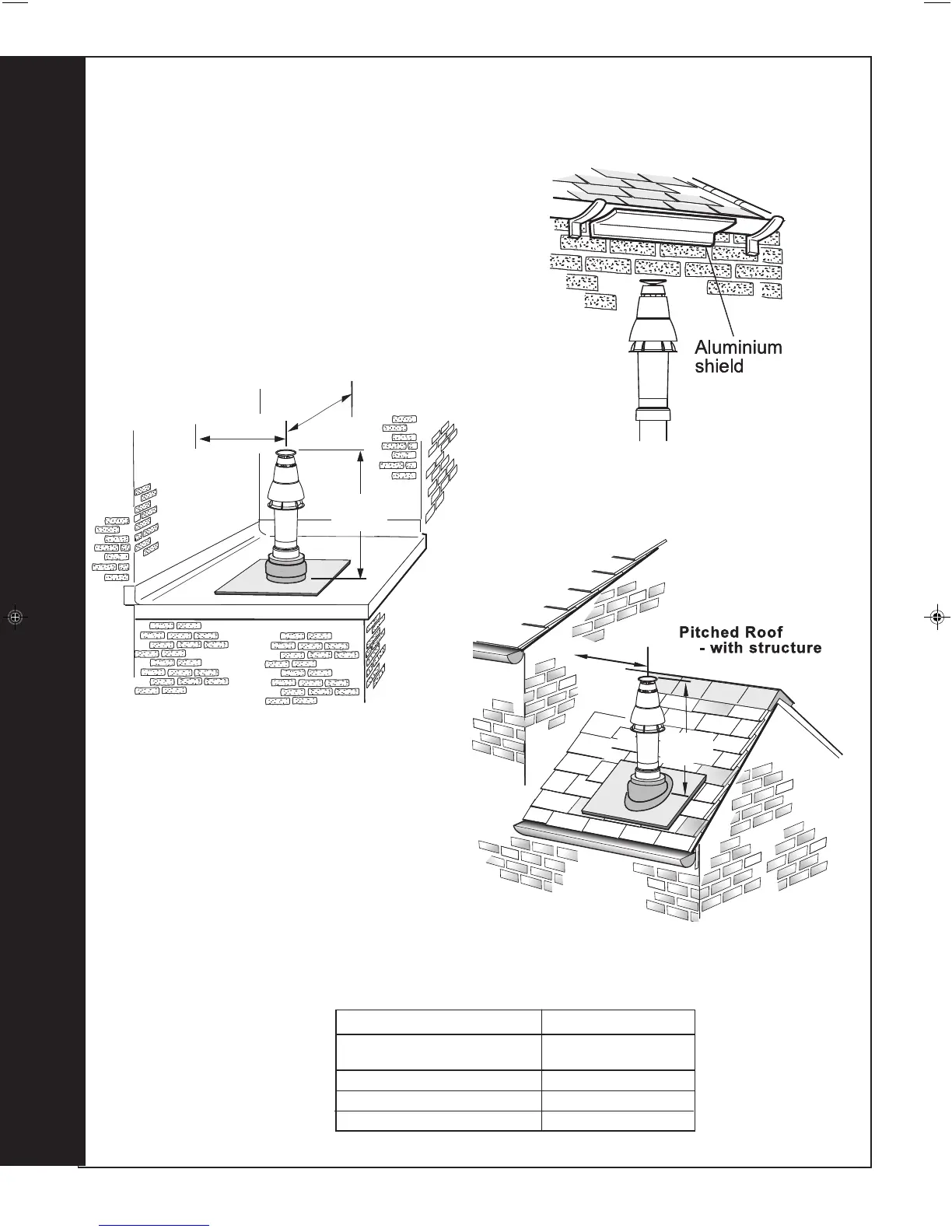

FLUE OUTLET
rf8394-1
690mm
Fixed
300mm
min
30 FLUE TERMINAL POSITION
rf8393-1
300mm
min
300mm
min
625mm
Fixed
Flat roof - with structure
The terminal should be positioned so that products of
combustion can safely disperse at all times.
Pluming may occur at the termination so, where
possible, terminal positions where this could cause
a nuisance should be avoided.
Minimum dimensions are shown below
Terminal Position Minimum Dimension
Directly below an opening,
air brick, windows, etc. 300 mm
Below plastic / painted gutters 300 mm
Painted surface 300 mm
Below eaves or balcony 500 mm
rf8392

IDEAL icos HE12 Specifications

General

Model	icos HE12
Category	Boiler
Manufacturer	IDEAL
Output	12 kW
Fuel Type	Natural Gas
Mounting	Wall Mounted
ErP Heating Efficiency	A
Central Heating Flow Temperature Range	30-80°C
Dimensions	700 x 395 x 278 mm
Warranty	2 years
