27
icos - Installation & Servicing
INSTALLATION

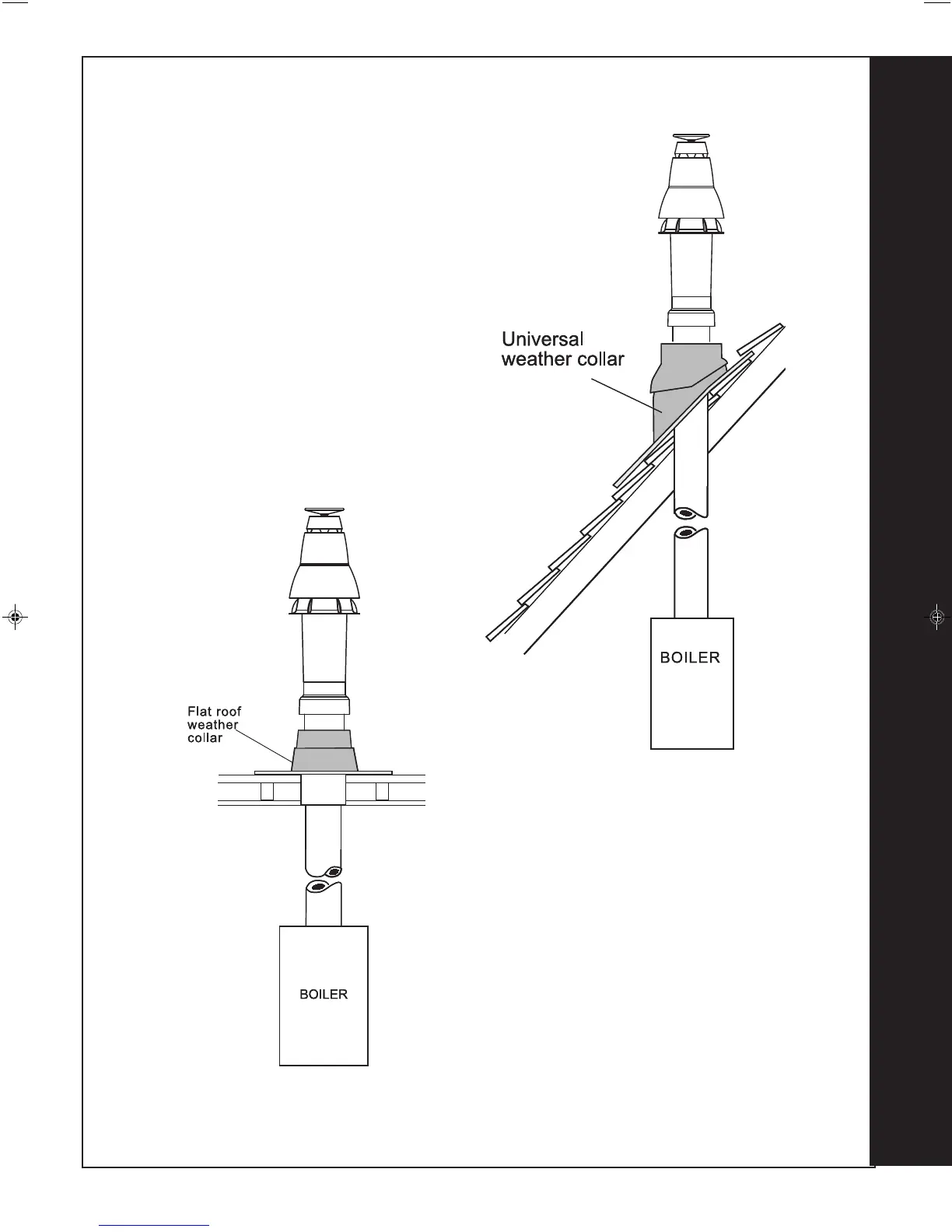

FLUE OUTLET
rf8737
rf8738
31
FLUE ARRANGEMENT
Note.
The equivalent flue length resistance of the elbow kits are:
90
o
elbow kit = 1m
45
o
elbow kit = 0.6m
