23
INSTALLATION
Ideal Logic Heat - Installation and Servicing

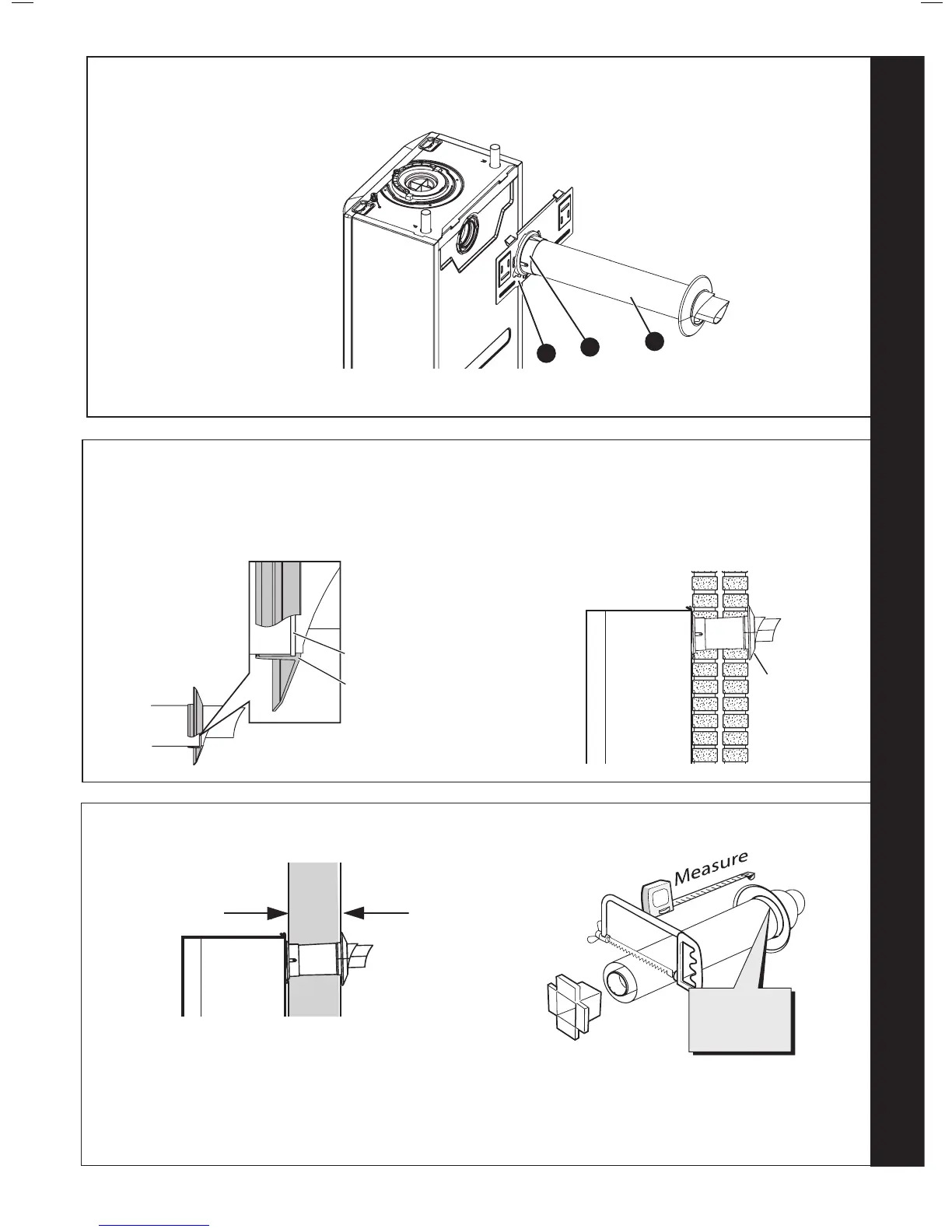

FLUE OUTLET
23

LEGEND
1. Duct Assembly
2. Plastic Connector
3. Wall Mounting Plate
205862-10122
1
2
3
24

Ensure lip of wall seal is positioned
over step on plastic nose of flue terminal
(note, seal is cut away for clarity)
Step
205862-10137
Wall Seal Lip
Prior to tting the ue, the rubber terminal wall seal provided
in the ue pack MUST be tted to the ue terminal as shown
below in Figure 1.
FIGURE 1
FIGURE 2
Once the ue is installed it is IMPORTANT that the rubber
terminal wall seal is pressed against the outside wall to create
an adequate seal between the ue and wall as shown in
Figure 2.
25
SETTING THE REAR FLUE LENGTH - WALL THICKNESS OF 115MM TO 442 MM
1. Measure and note wall thickness X. Refer to Frame 1.
2. Add 8mm to dimension X and, measuring from the ring, cut the outer tube
only.
3. To ensure the tube is cut square, mark the ue all the way around.
4. Cut the inner tube to a length 10mm longer to aid engagement, using the
cutting aid provided.
Note. If the stand-off frame is used, it is
essential to add 45mm to ‘X’ the measured
wall thickness when marking the ue (this
will allow for the tted frame)
Measure from
this
RING
3G9675
205862-10072
Rubber
Terminal
Wall Seal
Wall Thickness X
205862-10065
