IDEAL Logic HEAT 24

16
INSTALLATION
Ideal Logic Heat - Installation and Servicing

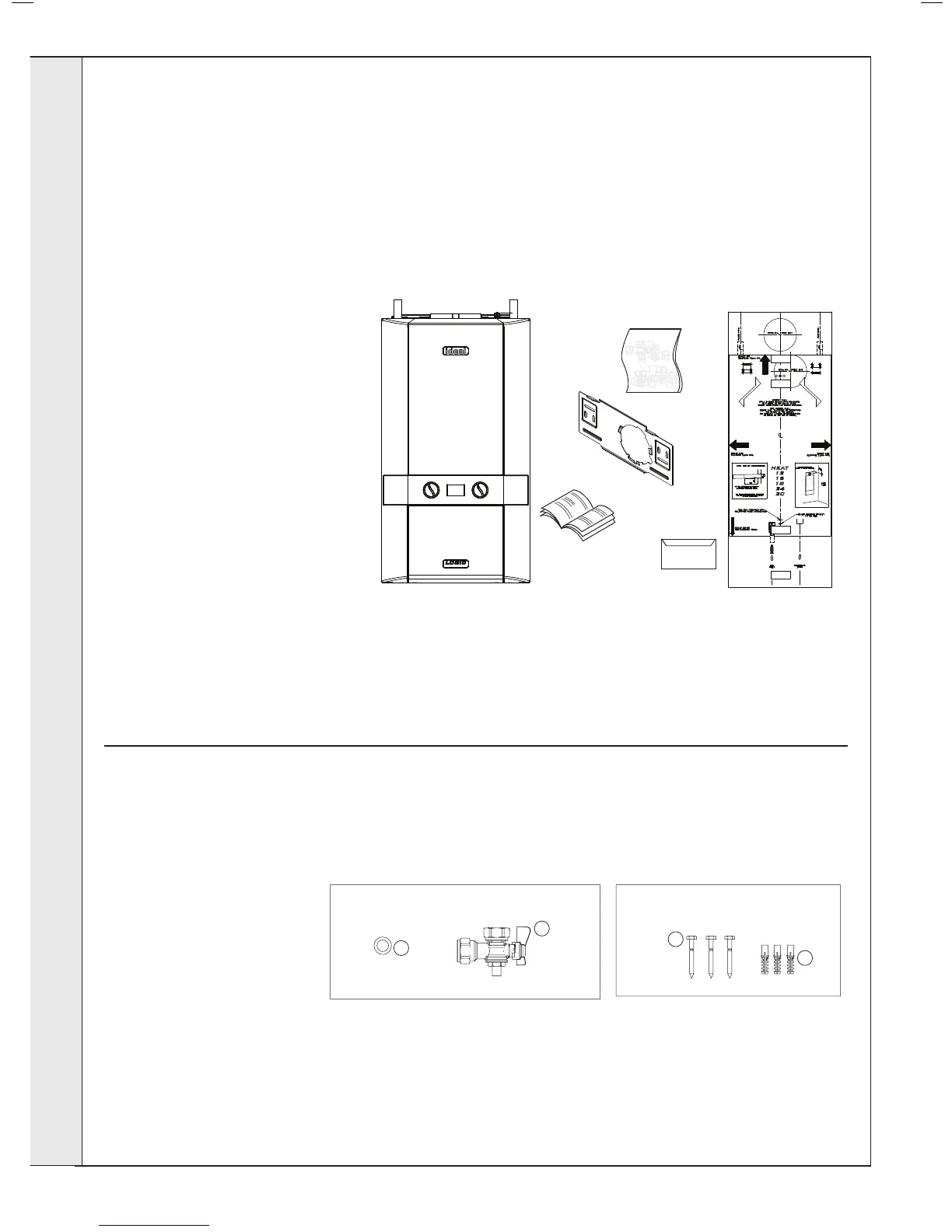

11 UNPACKING
The boiler is supplied fully assembled in Pack A. A telescopic or non-telescopic ue assembly for rear or side ue outlet in Pack B
is suppled as a separate order.
Unpack and check the contents.
Pack A Contents
A Boiler
B Hardware Pack
C Wall Mounting Plate
D These Installation/Users Instructions
E Wall Mounting Template
(located on internal protective packaging)
F Boiler Guarantee & Registration Pack
C
A
D
B
E
F
Boiler Guarantee
HARDWARE PACK CONTENTS
Gas Valve Pack
1. Washer - Gas (blue)
2. Gas Cock
Accessory Pack
1. Screw (x3)
2. Wallplug (x3)
Gas Valve Pack
Accessory Pack
1
1
2
2
INSTALLATION
