INSTALLATION
Ideal Logic + Combi - Installation and Servicing
FLUE OUTLET
Note.
A at or pitched roof ashing plate (not supplied) is
required before proceeding with the installation of this kit.

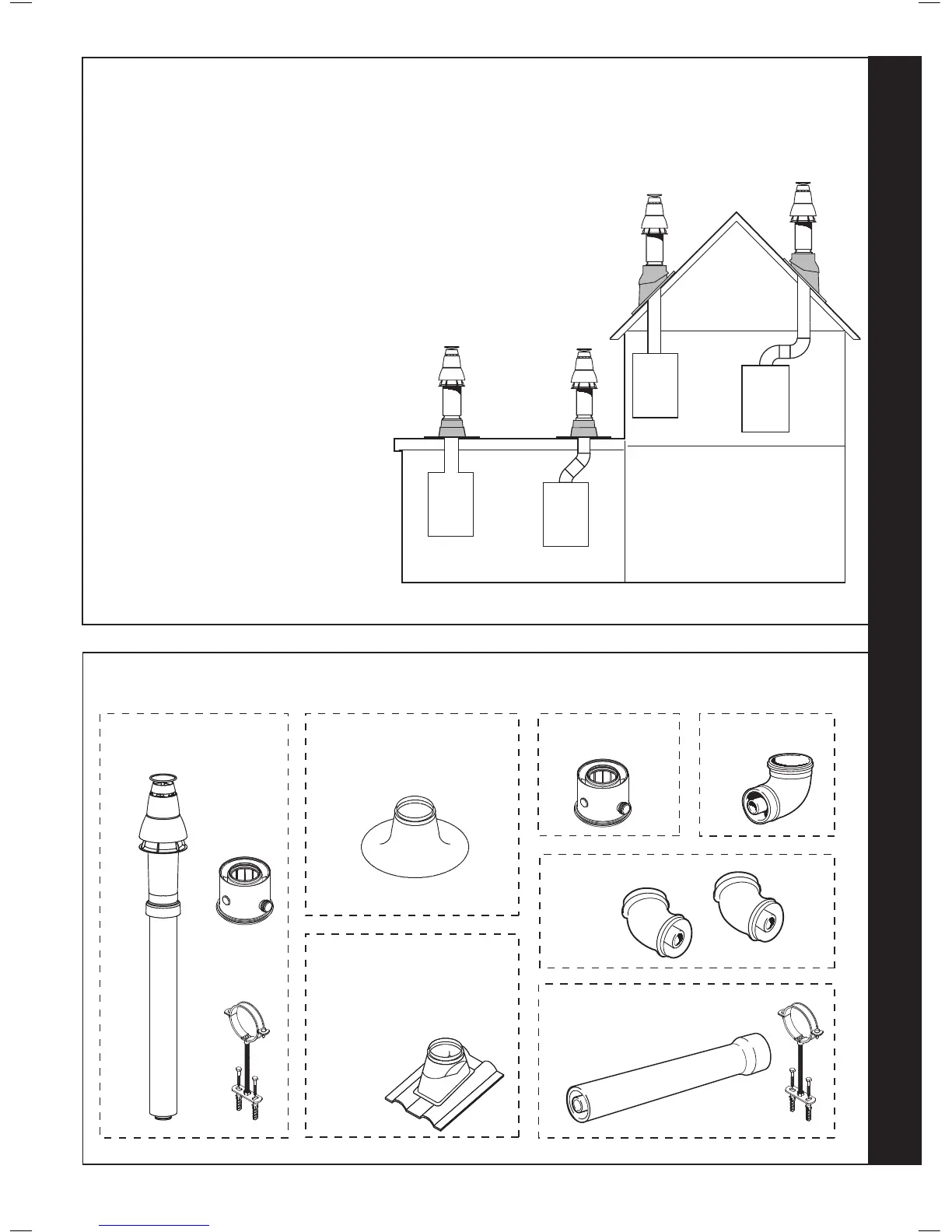

This kit is suitable for both at and pitched roof
terminations, using a concentric ue to
run vertically from the top of the boiler and
terminating above roof level.
Connection to the top of the boiler is made using
the supplied vertical connector.
WEATHER PROOFING
Where the ue passes through the roof line an
adequate seal must be made. This is achieved
by using either:
- Flat roof weather collar
or
- Universal weather collar.
ACCESSORIES
Flue Duct Extension Kits are available for ue
lengths extending beyond 1m. These packs
contains 500mm, 1000mm and 2000mm extension
ducts and may be cut to the desired length.
If the offset vertical option is used an elbow Kit is
required.
For a full accessories list refer to page 9,
Optional Extras.
Flue
duct
support
Vertical
Connector
Flue
duct
support
90
o
elbow
UIN 203130
45
o
elbow
UIN 203131
Roof Flue Extension Duct
UIN 211037 (500mm)
UIN 203129 (1000mm)
UIN 211038 (2000mm)
Flue Terminal
UIN 211039
Flue Seal Collar - Flat Roof
UIN 152259
Flue Seal Collar - Tile Roof
UIN 152258
Vertical connector
UIN 208175
19  
18 FITTING THE OPTIONAL ROOF FLUE KIT 
