SERVICING
Ideal Logic + Combi - Installation and Servicing
38

For the very latest copy of literature for specication & maintenance practices, visit our website www.idealboilers.com, where you
will be able to download the relevant information. N.B. Technical Bulletins are also available on www.idealboilers.com.
WARNING.OFF 


To ensure the continued safe and efcient operation of the appliance it is recommended that it is checked at regular intervals and
serviced as necessary. The frequency of servicing will depend upon the installation condition and usage but should be carried out
at least annually.
It is the law that any service work must be carried out by a Gas Safe Registered Engineer. In IE service work must be carried out
by a Registered Gas Installer (RGII).
INSPECTION
1. Light the boiler and carry out a pre-service check, noting any
operational faults.
2. Check the ue terminal (and terminal guard if tted) is undamaged
and clear of any obstruction.
3. Check all water and gas joints for signs of leakage. Remake any
suspect joints ensuring a gas tightness check is carried out if
applicable and the water system is correctly relled, vented and
re-pressurised.
CLEANING PROCEDURE
Note. In order to carry out either servicing or replacement of
components the boiler front panel must be removed. Refer to
Frame 39.
1. Clean the main burner. Refer to Frame 41.
2. Clean the heat exchanger & condensate trap/siphon. Refer to
Frames 42 & 43.
3. Check the main injector for blockage or damage. Refer to Frame
47.
4. Check that the ue terminal is unobstructed and that the ue
system is sealed correctly.
ALSO IF THE DHW FLOW RATE IS IN QUESTION :-
5. Check the DHW lter for blockage. Refer to Frame 68.
The cleaning procedures are covered more fully in Frames 40-44 and
MUST be carried out in sequence.
IMPORTANT.
6. After completing the servicing or exchange of components always
test for gas tightness.
7. When work is complete the front panel MUST be correctly retted,
ensuring that a good seal is made.
Do NOT OPERATE the boiler if the front panel is not
tted.
8. If, for any reason, the condensate trap/siphon has been removed
ensure the trap is relled with water before
reassembling.
9. Check the gas consumption.
10. Check combustion by connecting the ue gas analyser to the ue
gas sampling point as shown in the diagram and measure CO &
CO
2
.
If the CO/CO
2
ratio is greater than 0.004 AND the integrity of the
complete ue system and combustion circuit seals have been
veried and the inlet gas pressure (and gas rate) have been
veried, then contact Ideal.
11. Complete the service section in the Benchmark Commissioning
Checklist.

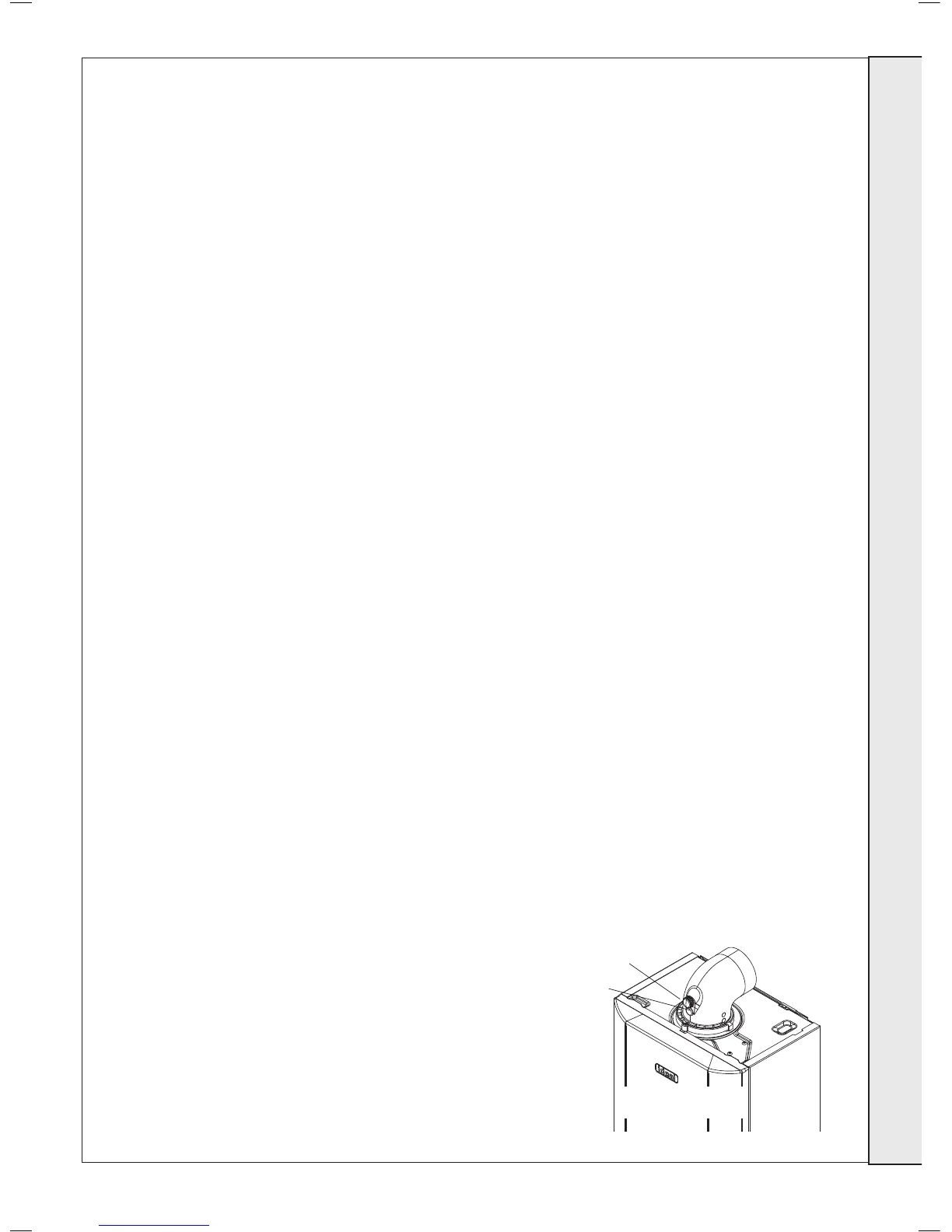

Flue Sampling Point
Air Sample
Point
Ensure all caps and seals
are re-fitted after use
GENERAL
Please Note: During routine servicing, and after any
maintenance or change of part of the combustion
circuit, the following must be checked:
- The integrity of the ue system and the ue seals,
- The integrity of the boiler combustion circuit and
the relevant seals
- The operational (working) gas inlet pressure at
maximum rate.
- The gas rate
- The combustion performance.
COMPETENCE TO CARRY OUT THE CHECK
OF COMBUSTION PERFORMANCE
Please Note: BS 6798:2009 Specication for
installation and maintenance of gas-red boilers of
rated input not exceeding 70kW net advises that:
- The person carrying out a combustion
measurement should have been assessed as
competent in the use of a ue gas analyser and
the interpretation of the results.
- The ue gas analyser used should be one
meeting the requirements of BS7927 or BS-
EN50379-3 and be calibrated in accordance with
the analyser manufacturers requirements, and
- Competence can be demonstrated by satisfactory
completion of the CPA1 ACS assessment, which
covers the use of electronic portable combustion
gas analysers in accordance with BS7967, Parts
1 to 4.

