IDEAL LOGIC+ Combi 30 Installation And Servicing

63
Fault Finding
Fault Finding Fault Finding Fault Finding Fault Finding Fault Finding
Ideal Logic + Combi - Installation and Servicing
RESTART PROCEDURE - To restart boiler, turn mode knob to restart position and immediately turn knob back to required setting.

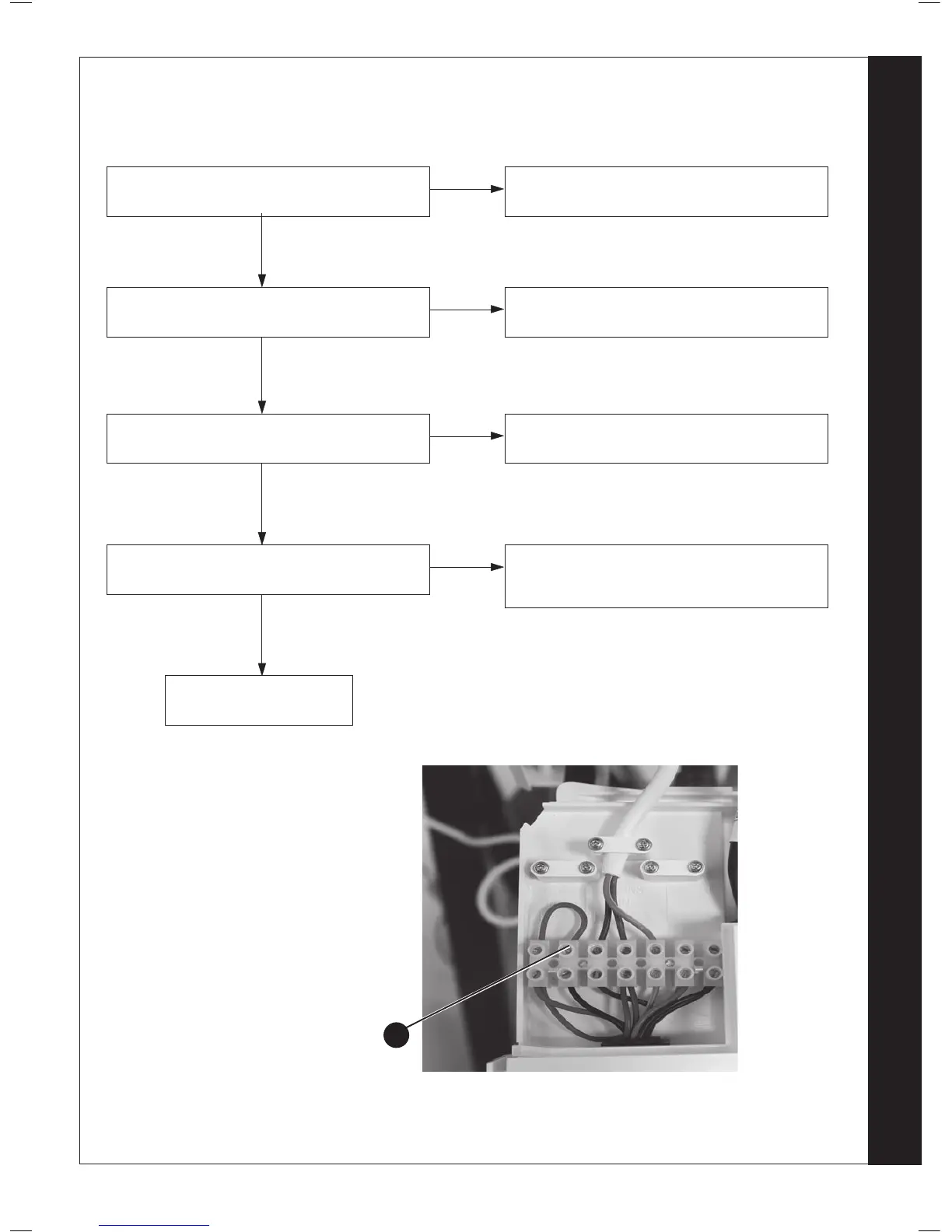

84 NO CH OPERATION BUT DHW WORKS OK
Is the mode knob in the Winter position?
YES
NO
Move the mode knob to the Winter position
Are the Timer and the Room Thermostat switched
on?
YES
NO
Switch the Timer and Room Thermostat On
Are the Radiator Valves Open?
YES
NO
Open the Radiator Valves
Is there 230Vac at (A)?
YES
NO
There is no Voltage from the Timer/Room Stat. This
is not boiler fault. Ensure Voltage is supplied to
boiler by rectifying external wiring.
Replace the Divertor Valve
A

IDEAL LOGIC+ Combi 30 Specifications

General

Model	LOGIC+ Combi 30
Boiler Type	Combi
Central Heating Output	24.2 kW
Domestic Hot Water Output	30.3 kW
Efficiency Rating	94%
ErP Rating	A
Flow Rate	12.4 l/min
Dimensions	700x395x278 mm
Fuel Type	Natural Gas
Mounting	Wall Mounted
Warranty	7 years
Central Heating Pressure	3 Bar
