1.8 DISPLAY FUNCTIONS - NORMAL OPERATION MODE

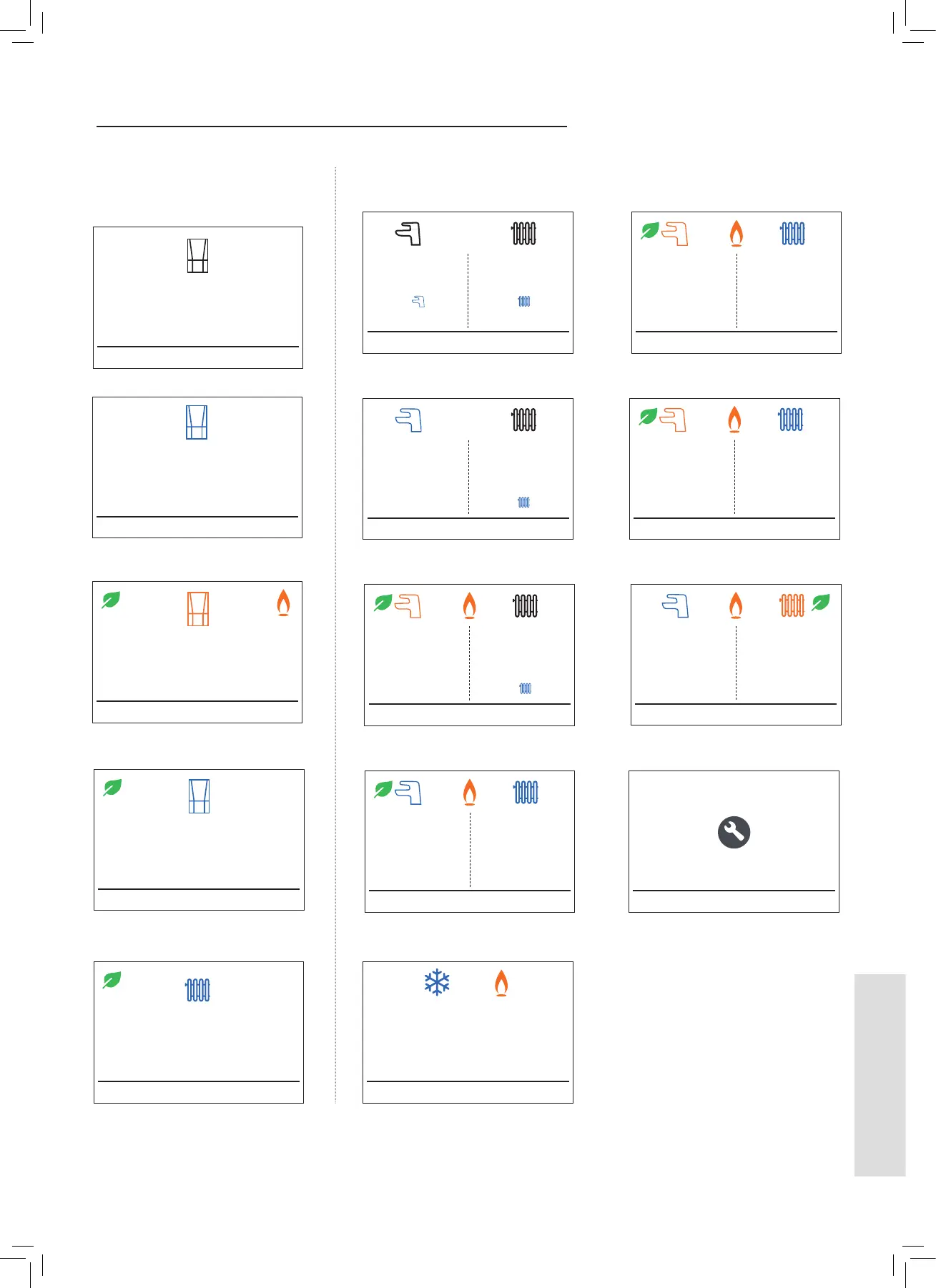

NORMAL OPERATION SCREENS
To Switch On
Press Mode Button &
then On
Menu Mode
O
To Switch On
Press Mode Button &
then On
O
O󰀨 Mode Winter Mode, DHW Demand
Target 60°C
Menu Mode
Ready
Radiator Target 60°C
Room Thermostat or
Timer O
On at 60°C
Winter Mode, DHW & CH Demands
Target 60°C
Menu Mode
Ready
Radiator Target 60°C
Hot Water Priority
On at 60°C
Winter Mode, CH Demand
Target 60°C
Menu Mode
On at 60°C
Radiator Target 60°C
Set by Room Stat
Ready
Summer Mode, No Heat Demand
Target 60°C
Menu Mode
O
To Switch On
Press Mode Button &
then On
Ready
Summer Mode, DHW Demand
Target 60°C
Menu Mode
On at 60°C
Winter Mode, No Heat Demand
Target 60°C
Menu Mode
Ready
R a di a to r Ta rg e t
60°C
Room Thermostat or
Timer O
Ready
O
To Switch On
Press Mode Button &
then On
Service Required
Restart Menu Mode
Service Due
Phone 01482 498660
Boiler Frost Protection
Menu Mode
Boiler Frost Protection Active
Switch O Temperature 19°C
WITH OUTSIDE SENSOR
CH Knob Rotated
Back Menu
Room Temperature Target
20°C
CH Knob Rotated
(outside sensor connected)
Back Menu
Target 60°C
To Switch On
Press Mode Button
Menu Mode
O
O󰀨 Mode
On Mode, No Heat Demand
On Mode, With Heat Demand
Target 60°C
Menu Mode
Ready
Timer O or Room Thermostat & Cylinder
Thermostat O
Target 60°C
Menu Mode
On at 60°C
WITHOUT OUTSIDE SENSOR
How to adjust Boiler Temperatures
