25
5

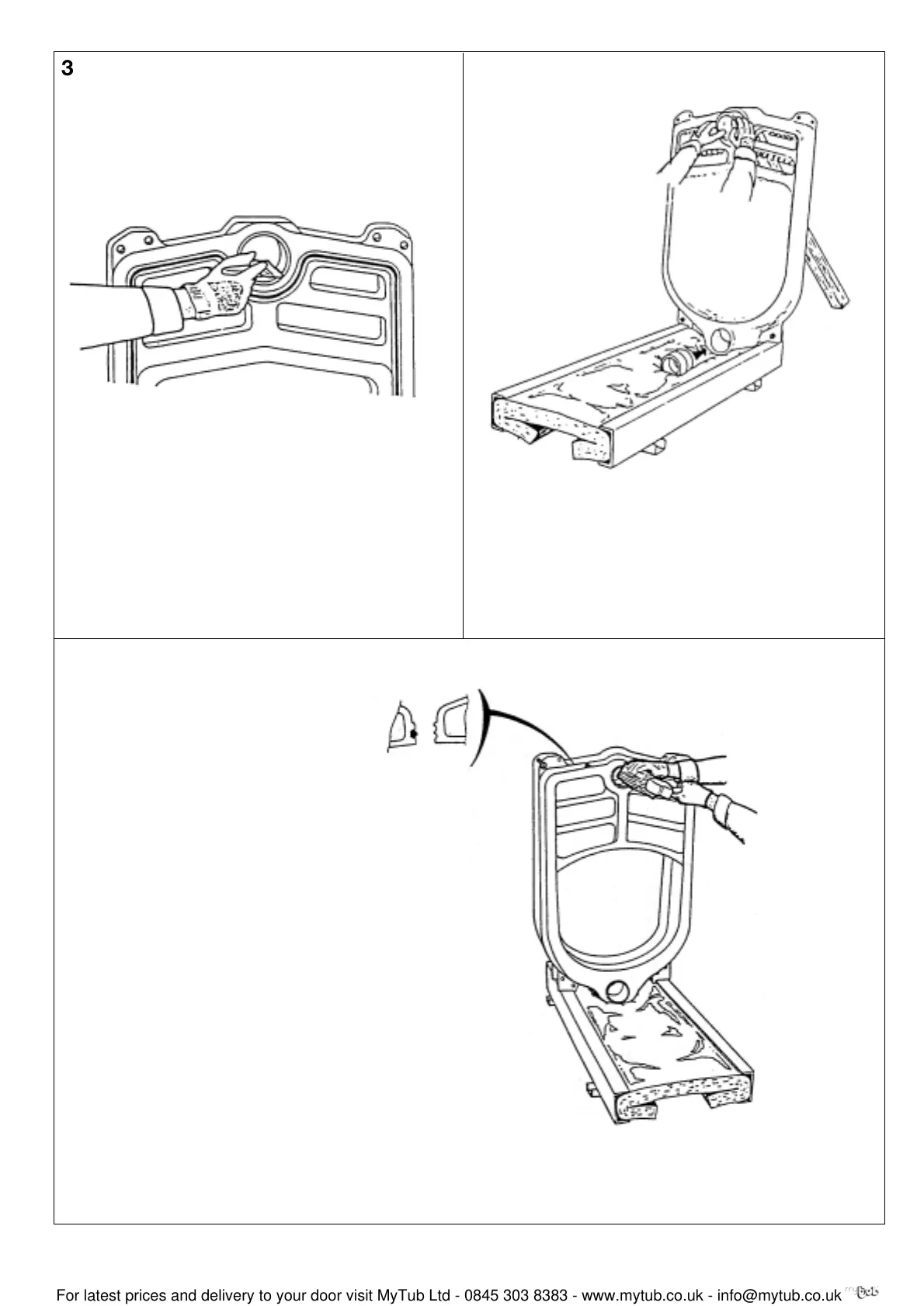

Clean the bores and nipples with a diluent (body accessories
pack). Coat them with the lubricant supplied with the sections.
Drive in the 2 nipples gently.
8229-EN-13
Place the special intermediate section, taking care to present it
the correct way: the sealing groove against the thermocord.
For reasons of safety, insert an upper assembly rod (body
accessories pack) into the holes of the 2 sections.
Gently and at the same time drive in the 2 nipples of the rear
section using a hammer and a piece of wood, in line with the
bores.
8199-EN-36
8229-EN-55
34
Viceroy GT Range - Installation
ASSEMBLY
