26 Viceroy GT Range - Installation
ASSEMBLY
6
7

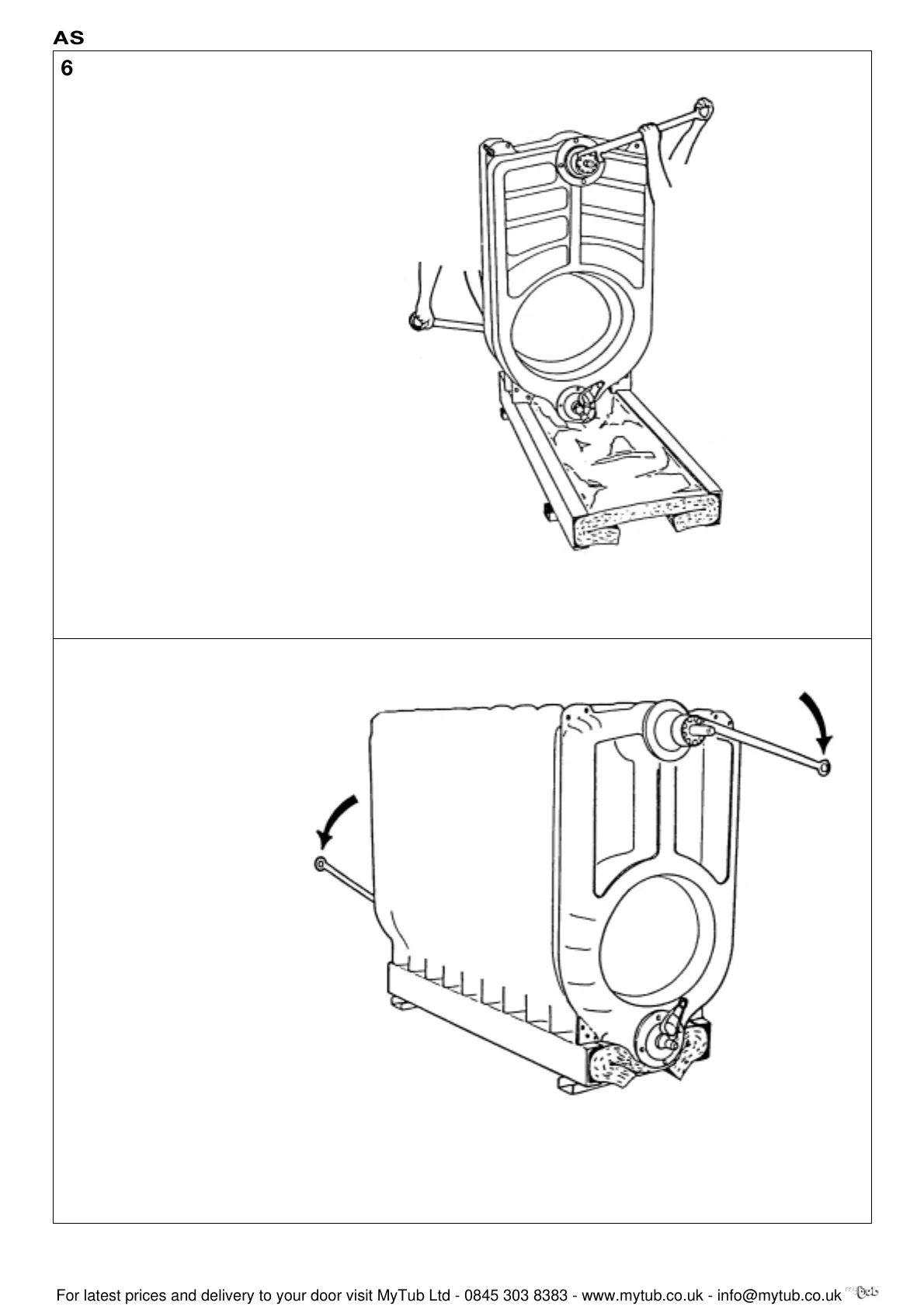

Fit the remaining sections in the order given (1 by 1)
proceeding as per figures 3, 4, 5 and 6. Leave the assembly
tool in place.
8229-EN-17 B
Put the special assembly tool in place. Tighten progressively,
so as to bring the upper and lower connections together
equally and at the same time.
8229-EN-16
