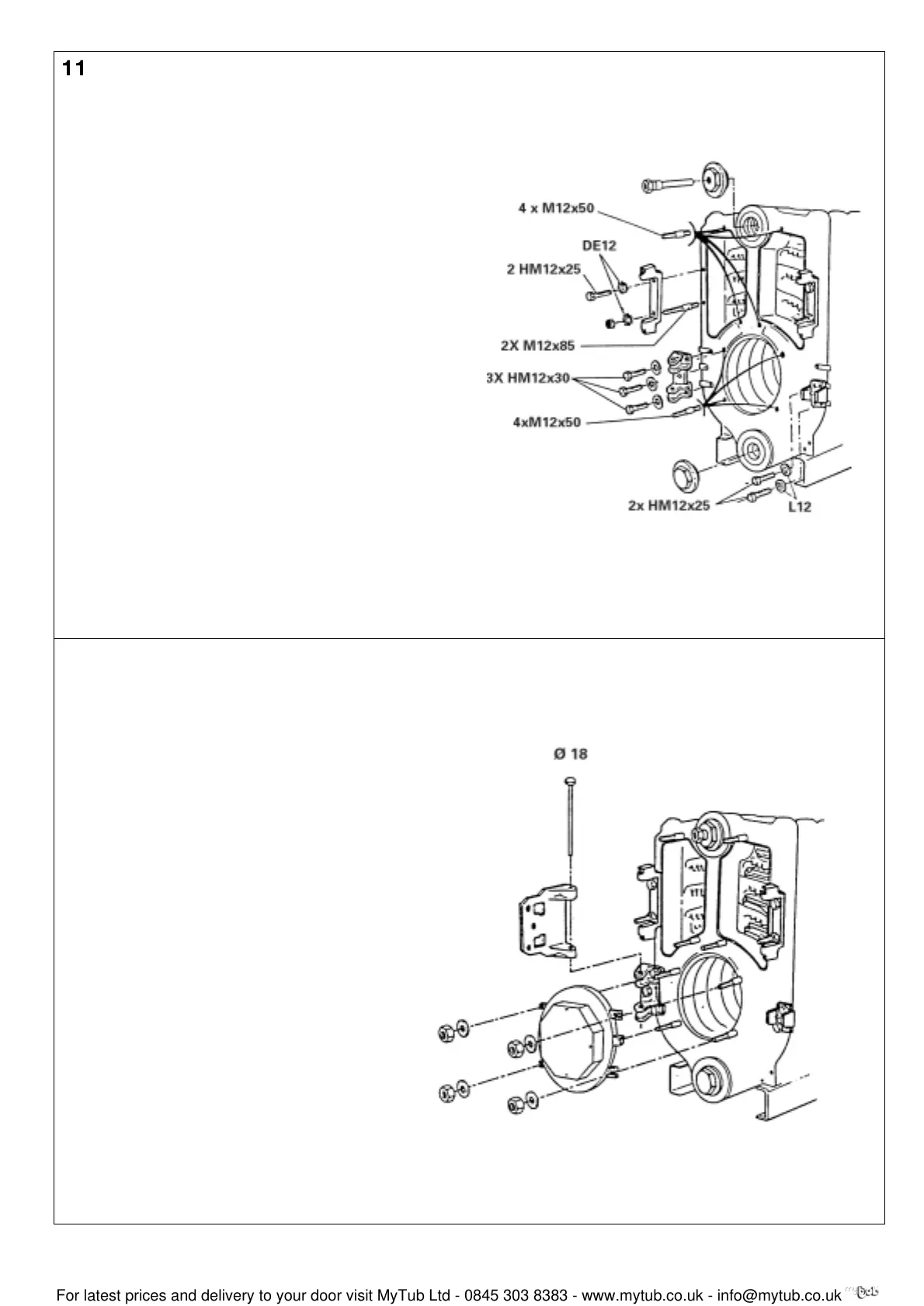

Fit the lower and upper plugs with the small pocket (body
accessory pack). Do not forget the hemp.
Using a pipe wrench, put the 8 M 12x50 studs in place for
the cleaning doors and the burner door and the 2 M 12x85
studs for the hinges of the sweeping doors.
Fit the hinges for the sweeping doors (pack IE 20) using 2
bolts HM 12x25 + 2 nuts M 12 + 2 washers DE 12.
Fit the combustion chamber door hinge (body accessories
pack) on the left or the right according to the direction in
which the door will be opened, and fix using 3 bolts HM
12x30 + washers CL 14.
Fix the guide flap (body accessories pack) using 2 bolts HM
12x25 + 2 washers CL 14.
8229-EN-18 C
Body accessories pack
Fit the burner door (4 M 12 nuts + washers CL 14).
Fit the hinge mounted on its pin.
8229-EN-20 A
11
Viceroy GT Range - Installation
ASSEMBLY
