Functions
60
HR9Z-B2192 8/2020

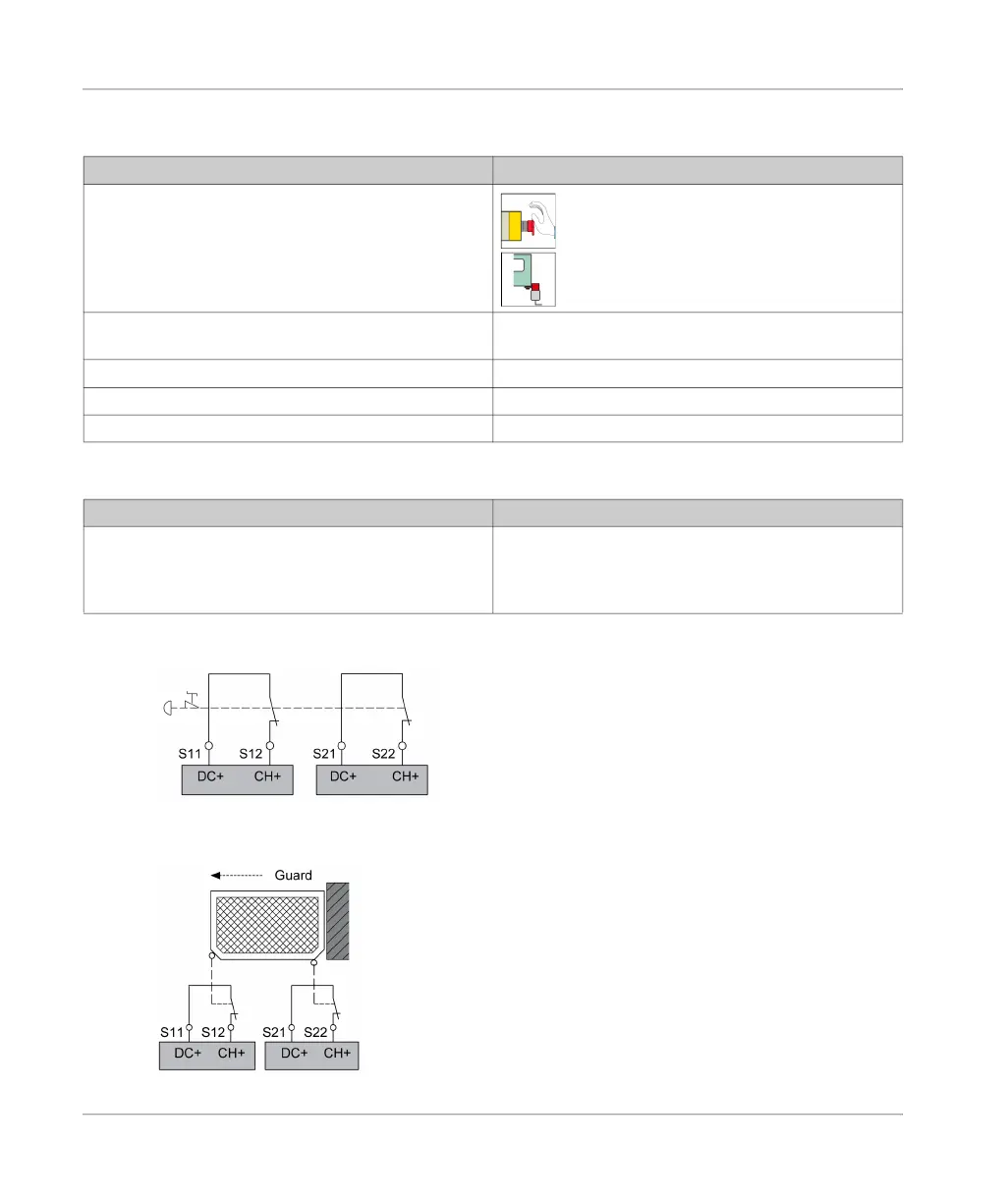

Application Function 2
Synchronization:
Wiring of the inputs for Emergency Stop
Wiring of the inputs for guards
Characteristic Value/Description
Typical applications Monitoring of Emergency Stop circuits as per
ISO 13850 and IEC 60204-1, stop category 0
Monitoring of guards as per ISO 14119/14120
with electrical switches
Type of outputs of sensor/device providing the input signal
for application function
Normally open, normally closed and/or changeover
outputs
S## terminals to be connected S11-S12 and S21-S22
Dynamization Yes
Signal interlock monitoring Between terminals S12 and S22
Synchronized terminals Synchronization time
S12 synchronized with S22 If S12 is activated before S22, S22 has to be activated
within 2 s.
If S22 is activated before S12, S12 has to be activated
within 4 s.
