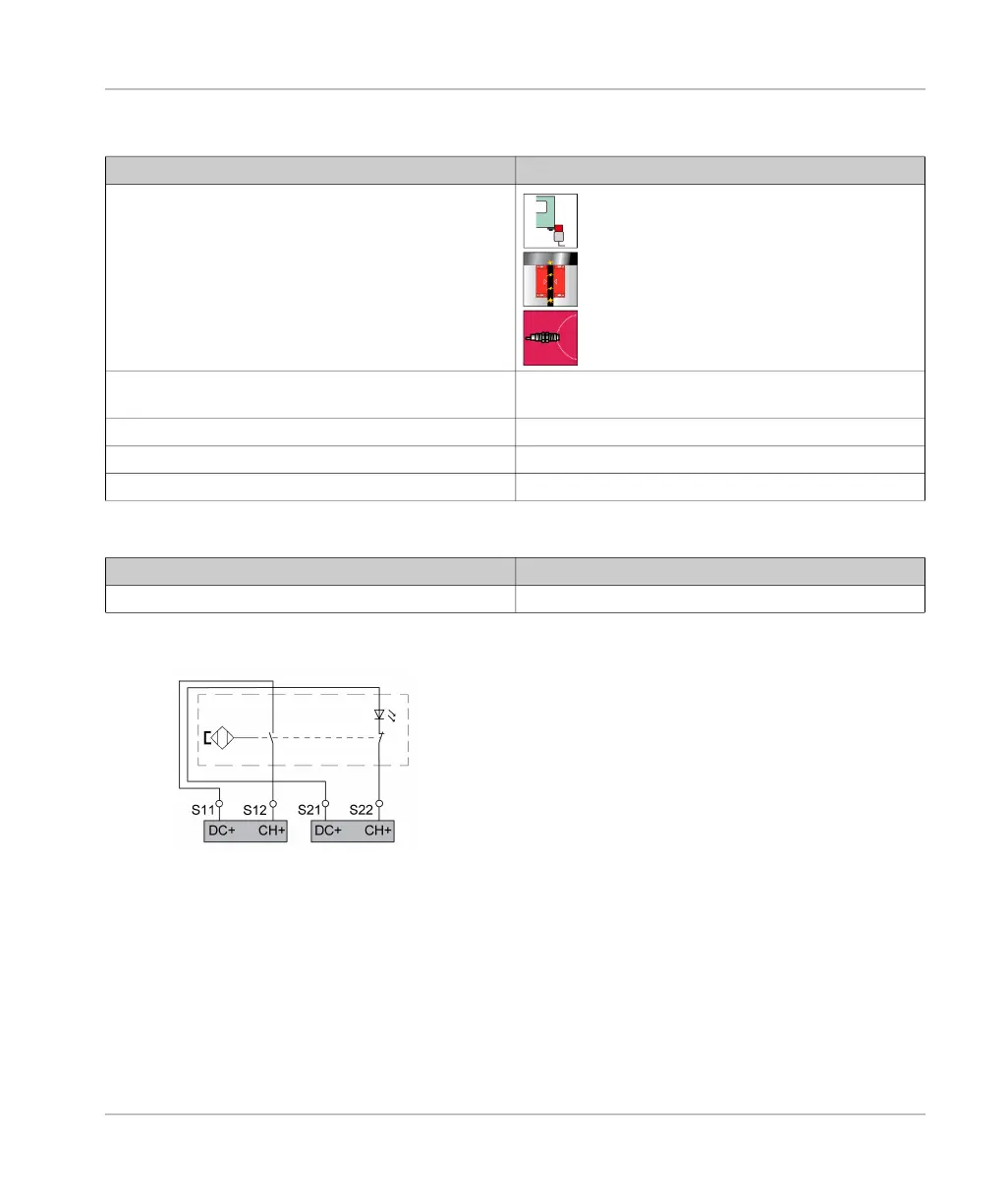

Application Function 3
Synchronization:
Wiring of the inputs for coded magnetic switches
Characteristic Value/Description
Typical applications Monitoring of guards as per ISO 14119/14120
with electrical switches
Monitoring of guards as per ISO 14119/14120
with coded magnetic switches
Monitoring of proximity switches
Type of outputs of sensor/device providing the input signal
for application function
Normally open, normally closed and/or changeover
outputs
S## terminals to be connected S11-S12 and S21-S22
Dynamization Yes
Signal interlock monitoring No
Synchronized terminals Synchronization time
S12 synchronized with S22 S12 and S22 have to be activated within 0.5 s.
